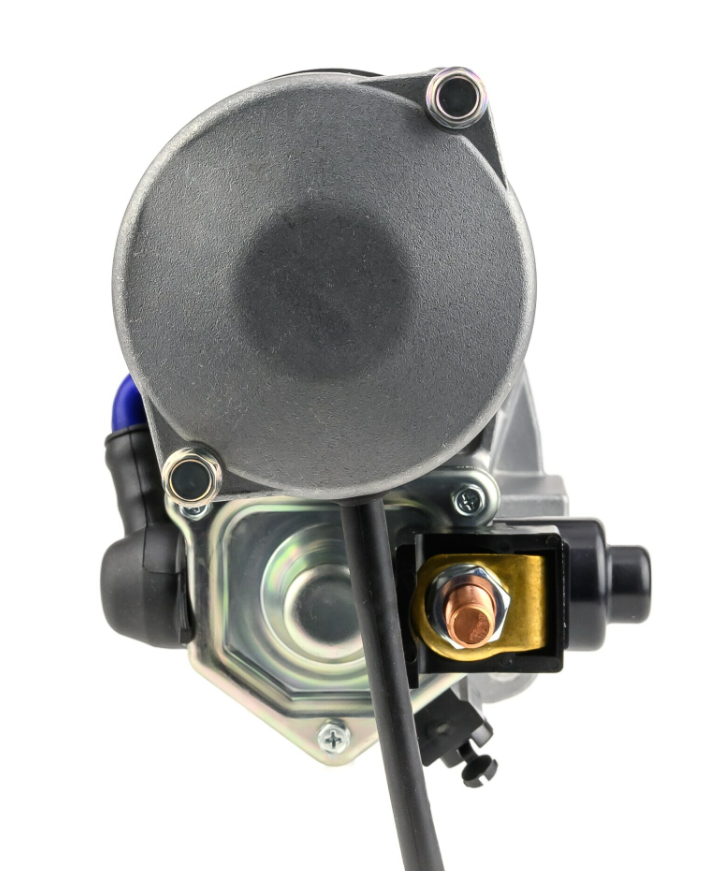

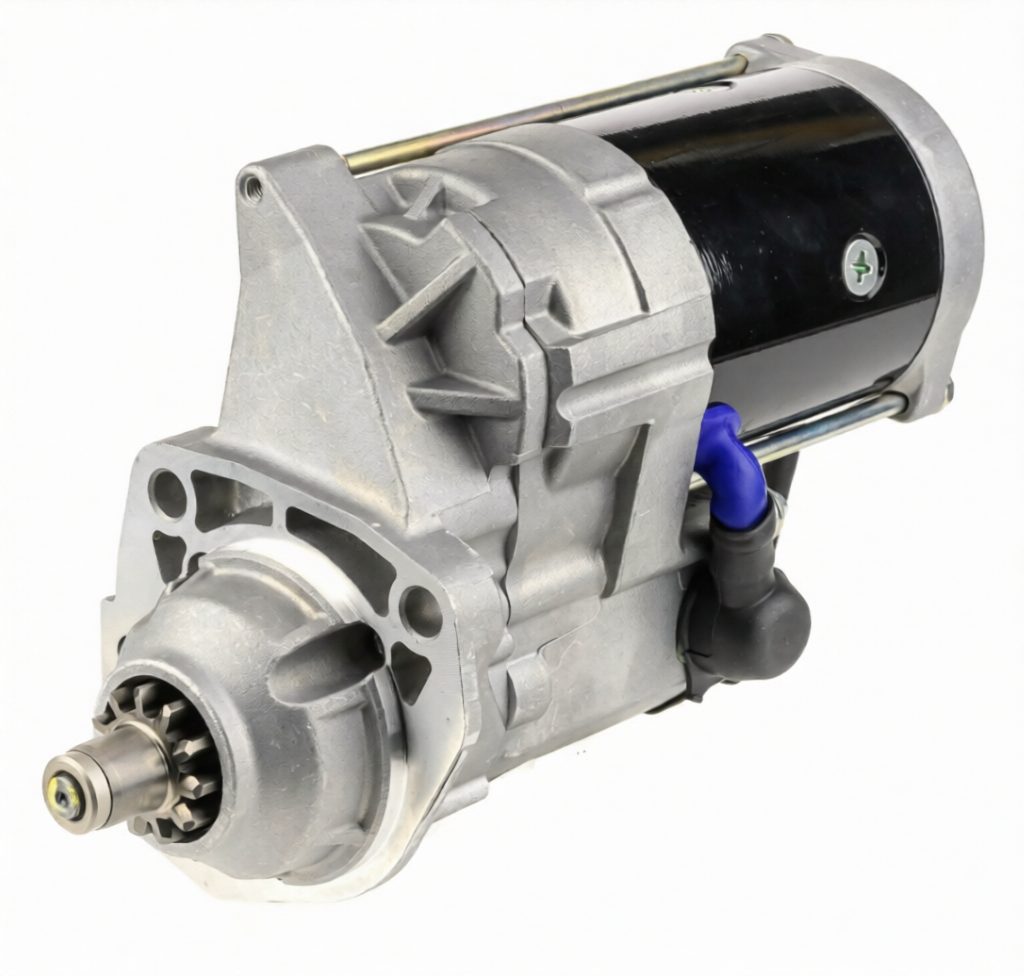

The Denso Gear Reduction Starter Motor is a 12V, 4.8kW starter with an 11-tooth pinion, type GR, supplied with anti-clockwise rotation. It is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and John Deere OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the John Deere STS combine series (2004 onwards).
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | 9560STS, 9650STS, 9660STS, 9750STS, 9760STS (2004) |
Key Features
- 12V, 4.8kW gear reduction starter motor
- 11-tooth pinion
- Type GR
- Anti-clockwise rotation
- Fits John Deere 9560STS, 9650STS, 9660STS, 9750STS, and 9760STS combines
- Cross-references five OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-6530 | Denso |
| 228000-6531 | Denso |
| 228000-6532 | Denso |
| 228080-6532 | Denso |
| RE69704 | John Deere |

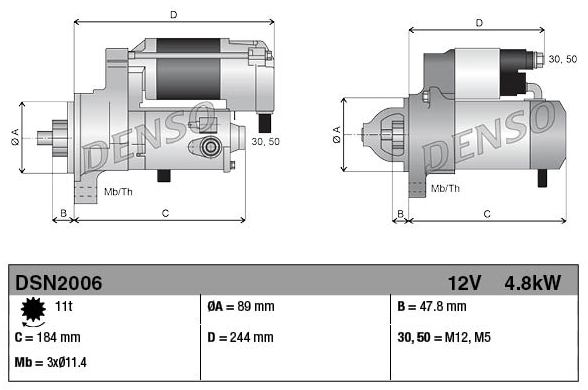

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 4.8 kW |
| No. of pinion teeth | 11 |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Anti-clockwise |
| Part number | 3780010099 |
| Reference number | DSN2006 |
| Weight | 11.23 kg |
| EAN | 8717613113769 |
| Condition | New |
