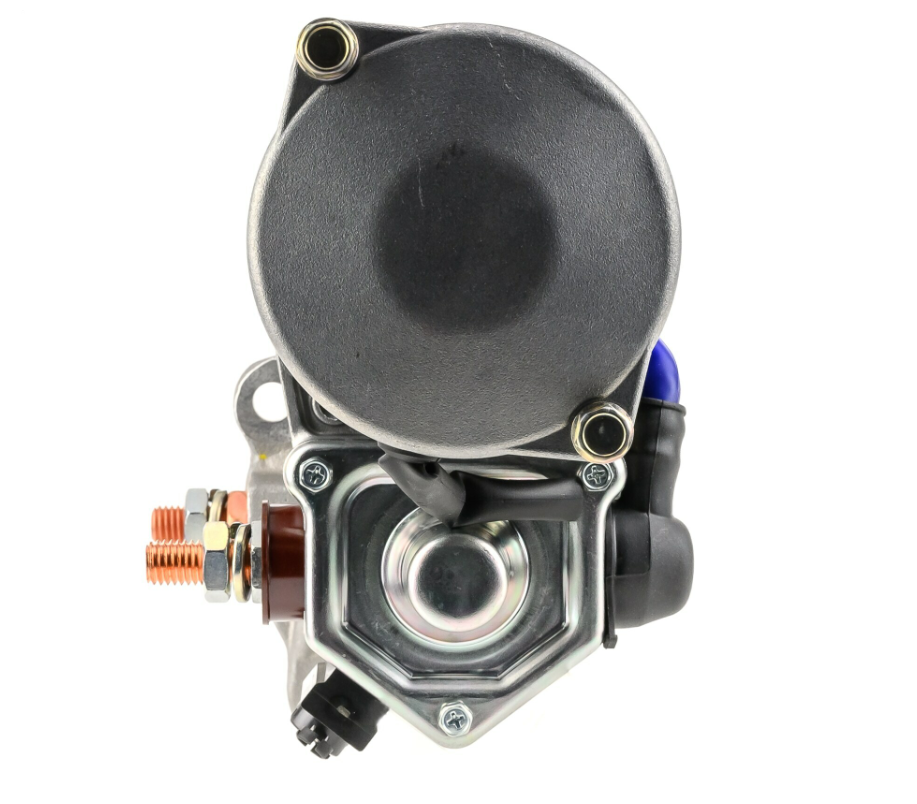

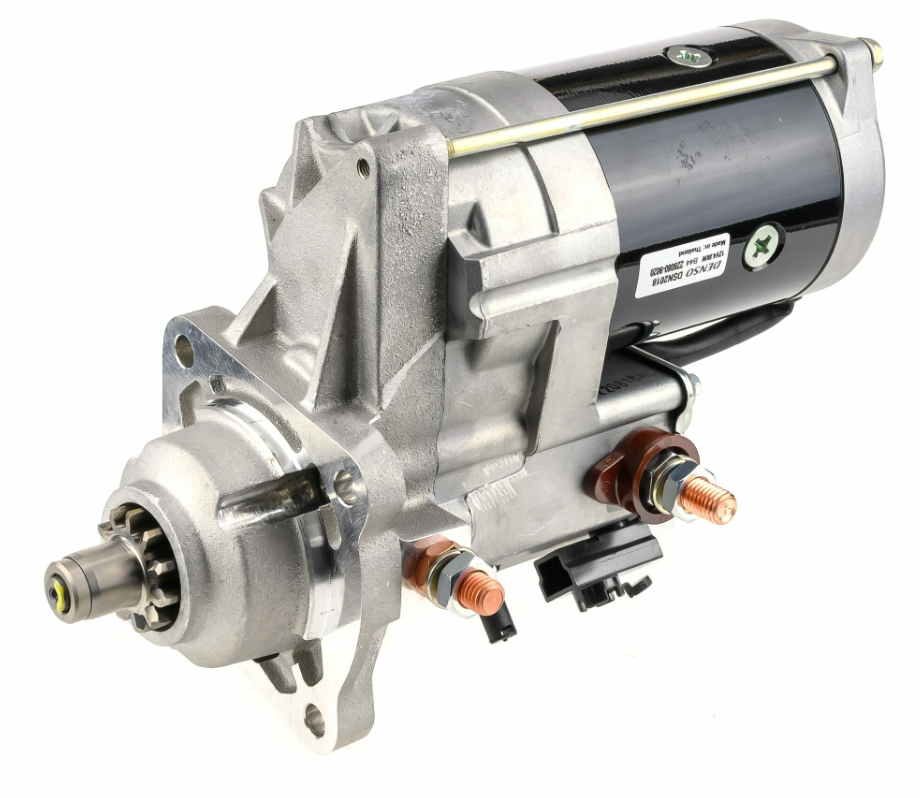

The Denso Gear Reduction Starter Motor is a 12V, 4.8kW starter with an 11-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and John Deere OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the John Deere PowerTech 6068 engine (2011 onwards).
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | 6068 engine (2011) |
Key Features
- 12V, 4.8kW gear reduction starter motor
- 11-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Fits John Deere 6068 engine
- Cross-references three OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-9020 | Denso |
| 228080-9020 | Denso |
| RE65817 | John Deere |

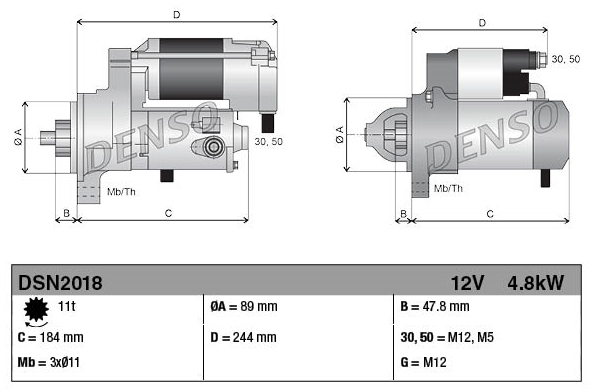

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 4.8 kW |
| No. of pinion teeth | 11 |
| Holes / PCD | 3 x 11.0mm |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010111 |
| Reference number | DSN2018 |
| Weight | 11.07 kg |
| EAN | 8717613113936 |
| Condition | New |
