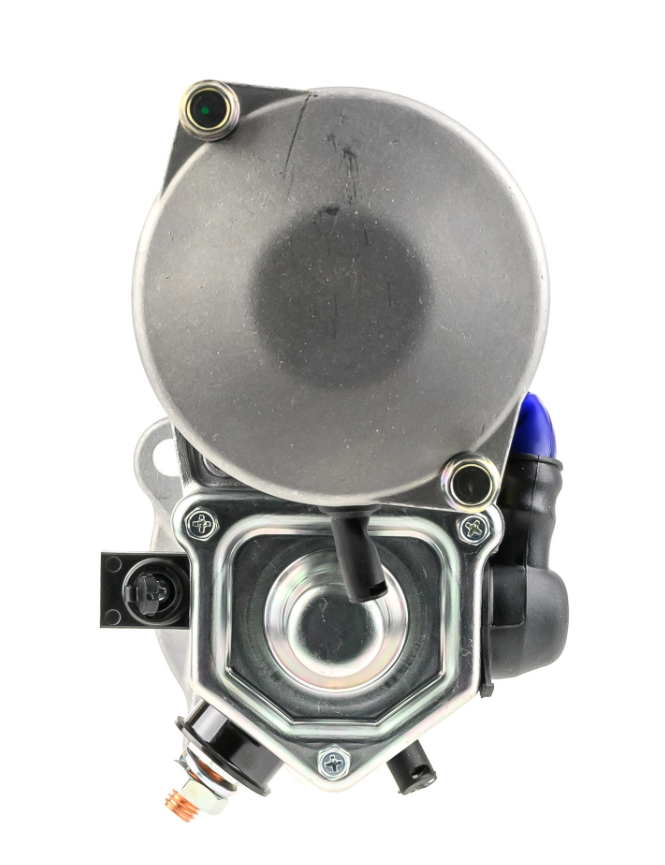

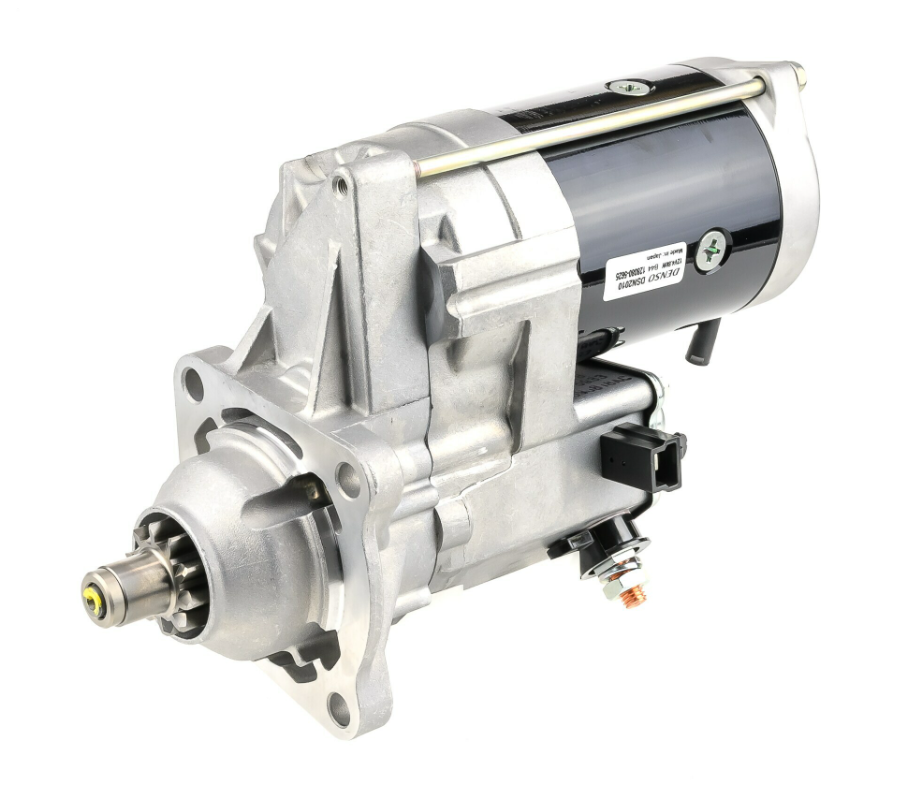

The Denso Gear Reduction Starter Motor is a 12V, 4.8kW starter with a 10-tooth pinion, type GR, supplied with anti-clockwise rotation. It is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso and Case IH OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Case IH Maxxum, Patriot Sprayer, SP, and SPX ranges.
Fitment
| Brand | Series / Type |
|---|---|
| Case IH | Maxxum 5230, 5240, 5250 |
| Case IH | Patriot Sprayer 3150 (6/04-5/09), 3185 (8/04-5/09), 3210 (8/05-5/09) |
| Case IH | 2500SP, 3000SP |
| Case IH | SPX3150 (5/99-8/02), SPX3185 (5/99-8/02), SPX3185 (10/02-7/09), SPX3200 (6/01-12/04), SPX3200 (11/01-10/02), SPX3200B (11/99-11/01), SPX3310 (11/04-5/09) |
Key Features
- 12V, 4.8kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Anti-clockwise rotation
- Fits Case IH Maxxum, Patriot Sprayer, SP, and SPX ranges
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2010 | Reference number |
| 128000-5620 | Denso |
| 128000-5621 | Denso |
| 128000-5622 | Denso |
| 128000-5623 | Denso |
| 128000-5624 | Denso |
| 128000-5625 | Denso |
| 128080-5625 | Denso |
| 228000-6870 | Denso |
| 228000-6871 | Denso |
| 228000-6872 | Denso |
| 116928A1 | Case IH |
| 116928A2 | Case IH |
| 257920A1 | Case IH |
| 259720A1 | Case IH |
| 140876A1 | Case IH |
| A186247 | Case IH |
| A187615 | Case IH |

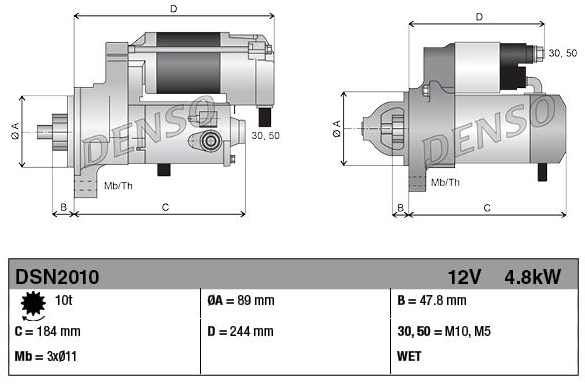

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 4.8 kW |
| No. of pinion teeth | 10 |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Anti-clockwise |
| Part number | 3780010103 |
| Weight | 10.88 kg |
| Condition | New |
