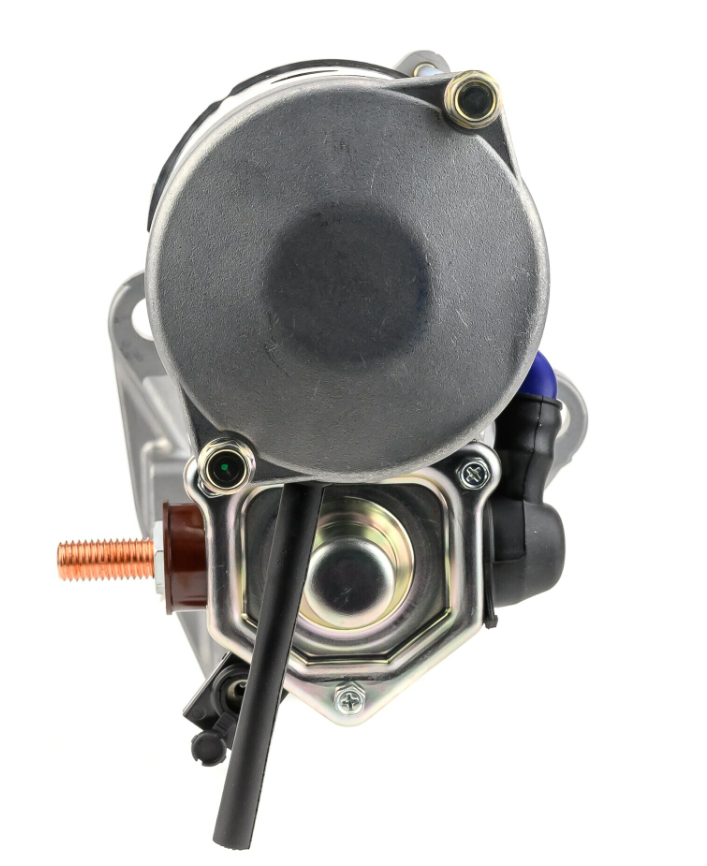

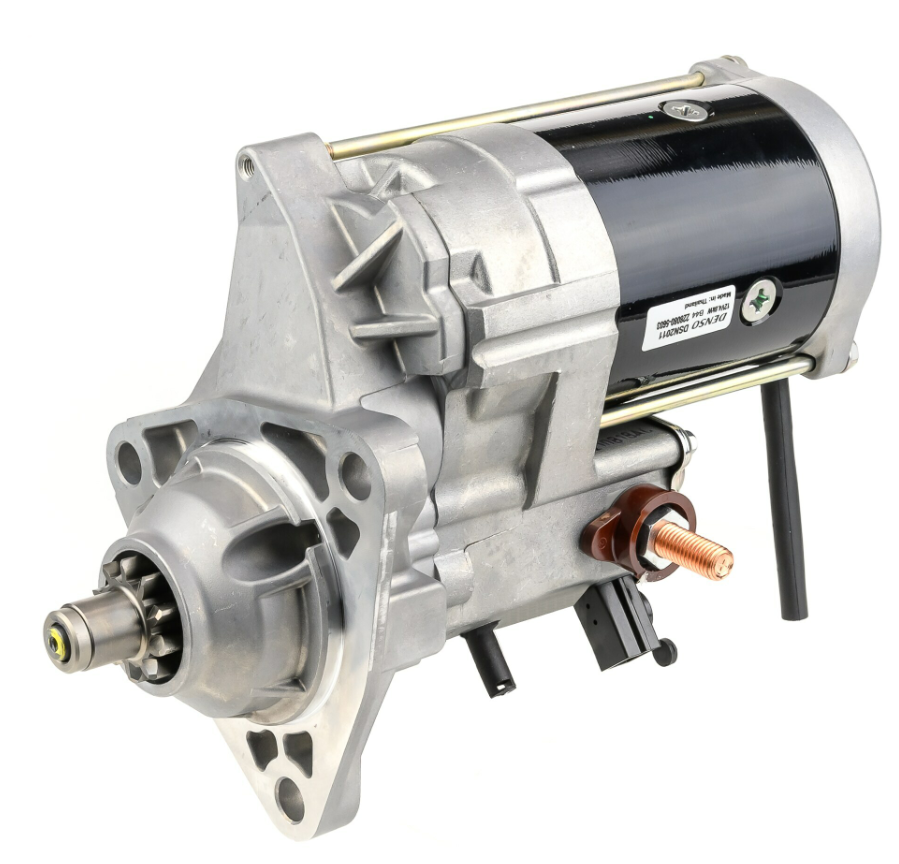

The Denso Gear Reduction Starter Motor is a 12V, 4.8kW starter with a 10-tooth pinion, type GR, supplied with anti-clockwise rotation. It is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and Case IH OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Case IH Magnum, MX, Patriot Sprayer, and SPX ranges.
Fitment
| Brand | Series / Type |
|---|---|
| Case IH | Magnum 7210 Pro, 7220 Pro, 7230 Pro, 7240 Pro, 7250 Pro |
| Case IH | MX 210, 230, 255, 285 Magnum |
| Case IH | Patriot Sprayer 4420 (8/06-9/11) |
| Case IH | SPX4260 (4/99-11/01), SPX4260 (11/01-6/04), SPX4410 (6/04-8/06) |
Key Features
- 12V, 4.8kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Anti-clockwise rotation
- Fits Case IH Magnum, MX, Patriot Sprayer, and SPX ranges
- Cross-references seven OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2011 | Reference number |
| 228000-5600 | Denso |
| 228000-5601 | Denso |
| 228000-5602 | Denso |
| 228000-5603 | Denso |
| 228080-5603 | Denso |
| 193432A1 | Case IH |
| 193432A2 | Case IH |

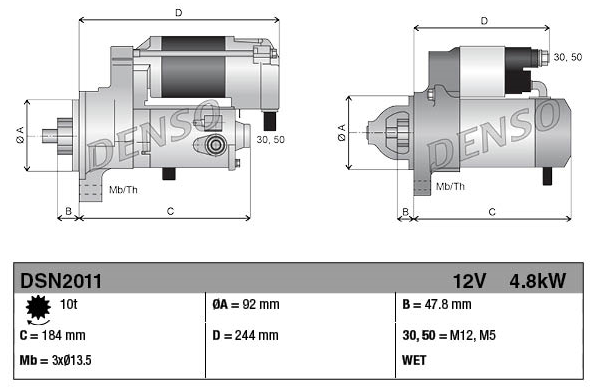

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 4.8 kW |
| No. of pinion teeth | 10 |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 92.0 mm |
| Direction of rotation | Anti-clockwise |
| Part number | 3780010104 |
| Weight | 11.21 kg |
| Condition | New |
