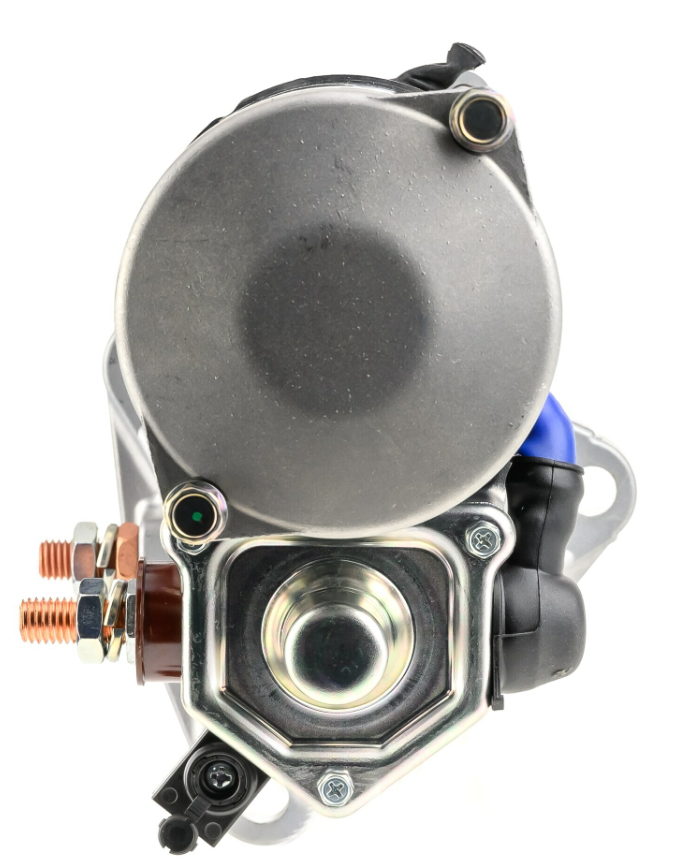

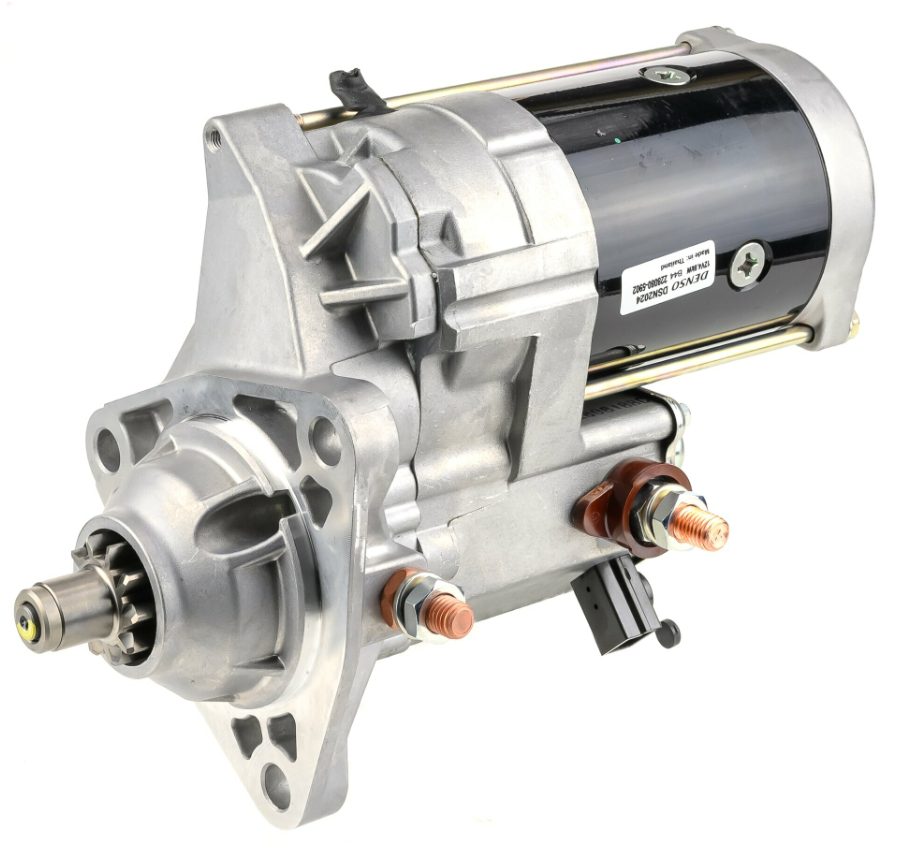

The Denso Gear Reduction Starter Motor is a 12V, 4.8kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso, Case IH, and Cummins OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting an extensive range of Case IH tractors, combines, and sprayers across the Magnum, MX, AFX, Steiger, CPX, and STX ranges.
Fitment
| Brand | Series / Type |
|---|---|
| Case IH | 2555 |
| Case IH | 2344, 2366, 2388 |
| Case IH | CPX 420, CPX 610, CPX 620 |
| Case IH | Magnum 7210 Pro, 7220 Pro, 7230 Pro, 7240 Pro, 7250 Pro, 8910, 8920, 8930, 8940, 8950 |
| Case IH | MX 180, 200, 210, 220, 230, 240, 255, 270, 285 Magnum |
| Case IH | Patriot Sprayer 4420 (8/06-9/11) |
| Case IH | SPX4260 (4/99-11/01), SPX4260 (11/01-6/04), SPX4410 (6/04-8/06) |
| Case IH | Steiger 9310, Steiger 9330 |
| Case IH | STX 275, STX 325 |
| Cummins | Not specified |
Key Features
- 12V, 4.8kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Fits an extensive range of Case IH tractors, combines, and sprayers
- Cross-references seven OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2024 | Reference number |
| 228000-5900 | Denso |
| 228000-5901 | Denso |
| 228000-5902 | Denso |
| 228080-5902 | Denso |
| 193432A2 | Case IH |
| 193432A1 | Case IH |
| 193432A2R | Case IH |
| A162469 | Case IH |
| 3283815 | Cummins |
| 3957590 | Cummins |

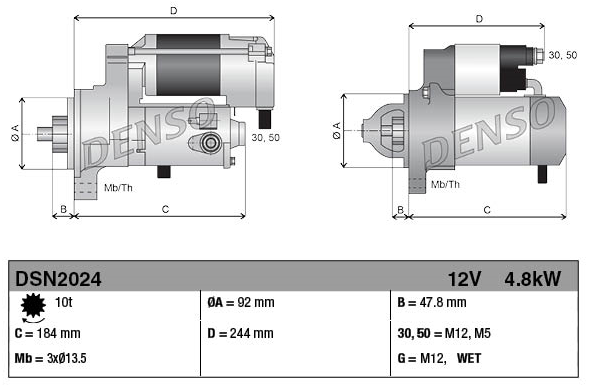

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 4.8 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 13.5mm |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 92.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010117 |
| Weight | 11.18 kg |
| Condition | New |
