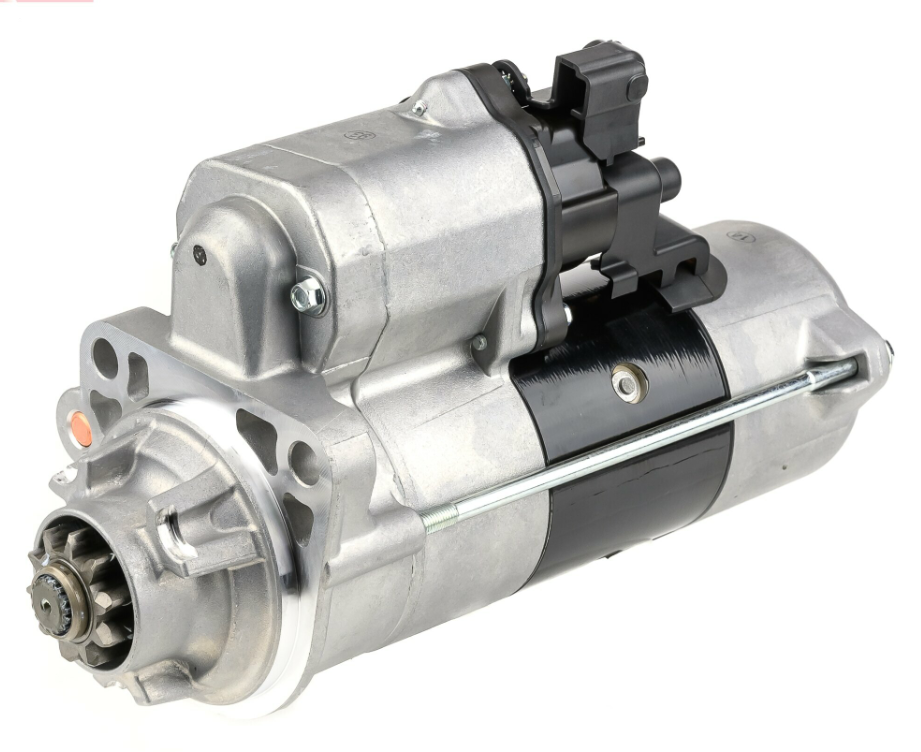

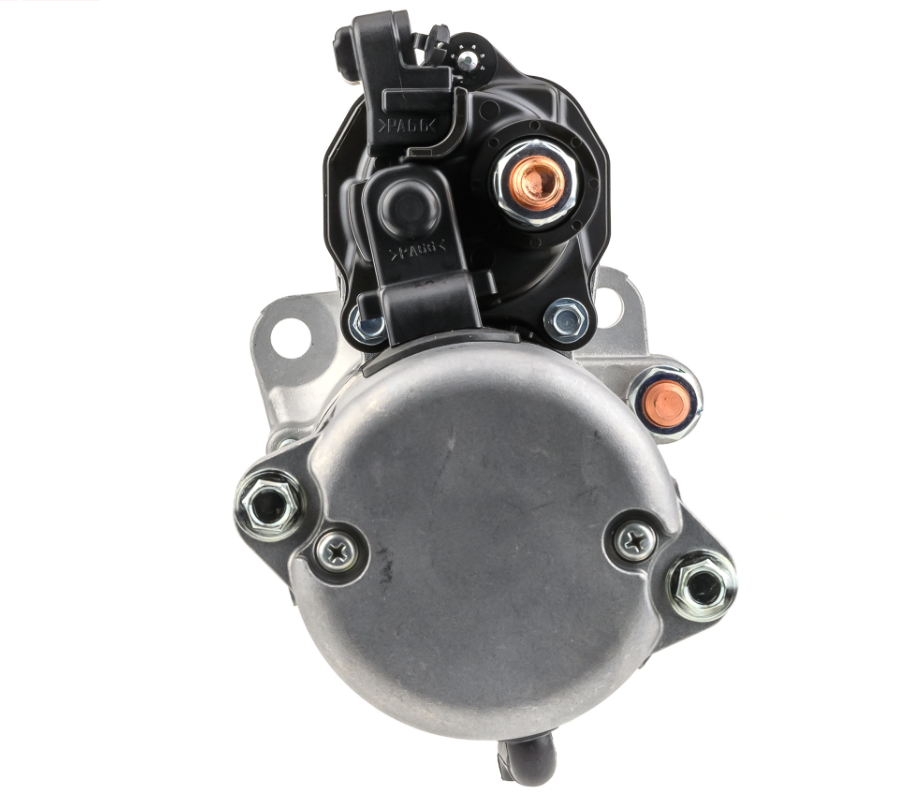

The Denso Gear Reduction Starter Motor is a 12V, 4.8kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso and John Deere OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting a broad range of John Deere tractors and combines across the 7R, 8R, 9R, and legacy 30/40/50/55/60/8000 series, as well as the S and T combine ranges.
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350, 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R |
| John Deere | 8R 230, 8R 250, 8R 280, 8R 310, 8R 340, 8R 370, 8R 410, 8RT 310, 8RT 340, 8RT 370, 8RT 410, 8RX 310, 8RX 340, 8RX 370, 8RX 410 |
| John Deere | 8235R, 8245R, 8260R, 8285R, 8295R, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8360R, 8360RT, 8370R, 8370RT |
| John Deere | 9360R, 9370R |
| John Deere | 4230, 4430, 4630, 4640, 4840, 4050, 4250, 4450, 4650, 4850, 4055, 4255, 4455, 4555, 4755, 4955, 4560, 4760, 4960 |
| John Deere | 8100, 8200 |
| John Deere | S 660, S 670, S7 700 |
| John Deere | T5 400, T5 500, T5 600, T5 700, T6 500, T6 600, T6 700, T6 800, T550, T560, T660, T670 |
| John Deere | W650, W660 |
| John Deere | 4940 |
| John Deere | 6090 engine |
Key Features
- 12V, 4.8kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Fits an extensive range of John Deere tractors and combines
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2092 | Reference number |
| 428000-5740 | Denso |
| 428000-5741 | Denso |
| 428000-7340 | Denso |
| 428000-7341 | Denso |
| 428080-5741 | Denso |
| DSN2096 | Denso |
| RE537515 | John Deere |
| RE539696 | John Deere |
| RE541093 | John Deere |
| RE548692 | John Deere |
| RE548694 | John Deere |
| RE549229 | John Deere |
| SE502558 | John Deere |

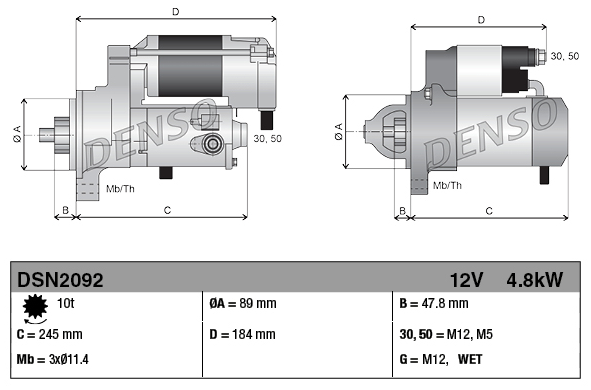

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 4.8 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 11.4mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 245.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010171 |
| Weight | 9.07 kg |
| Condition | New |
