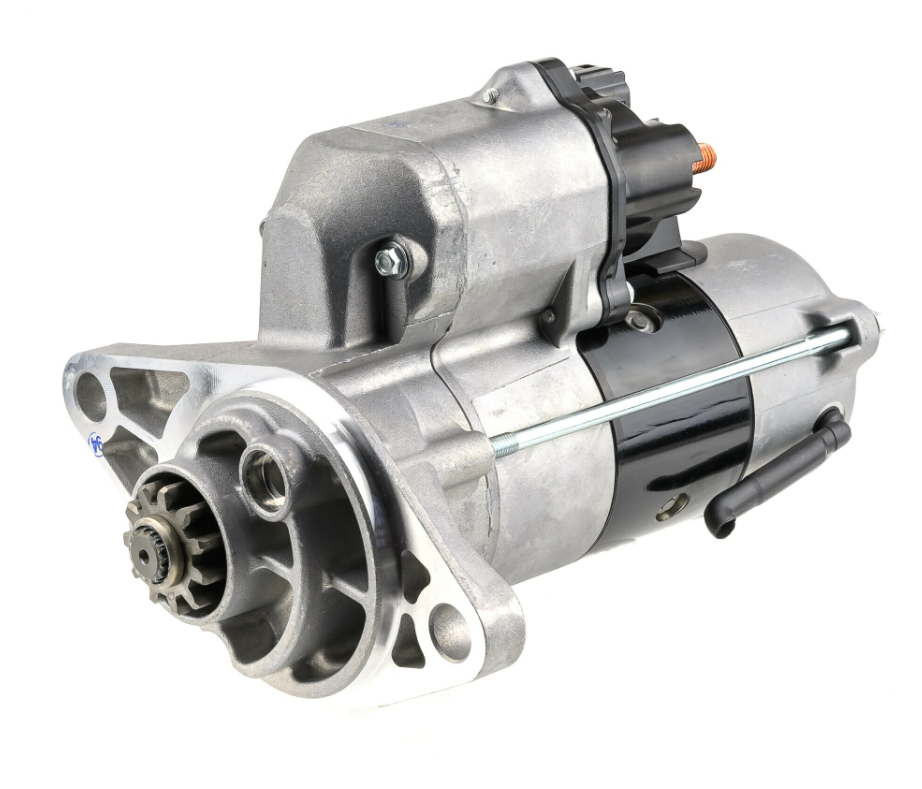

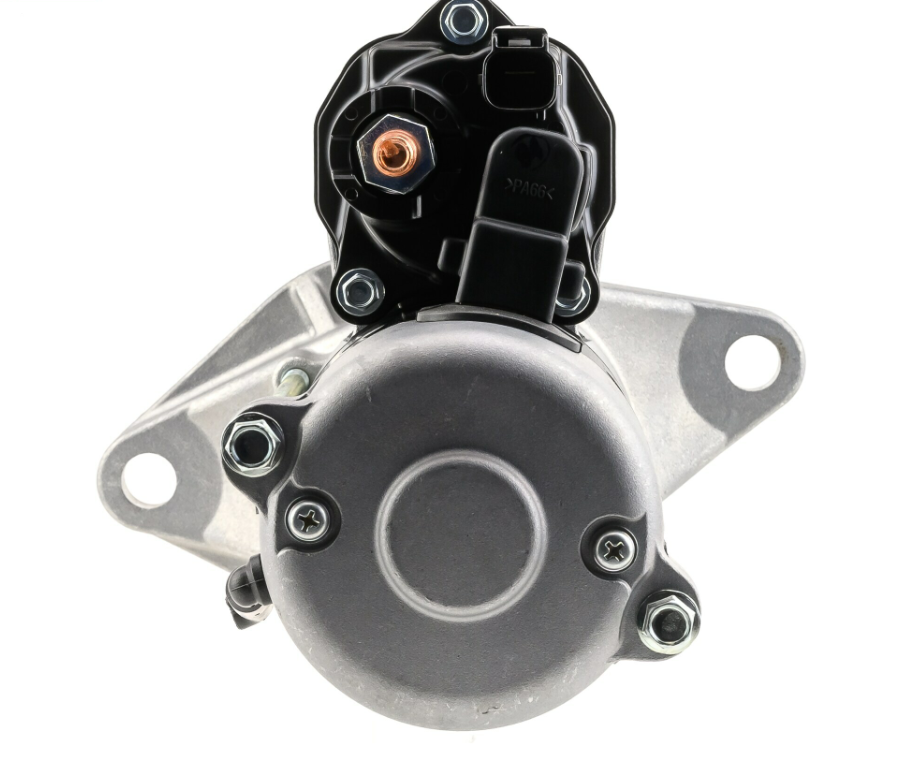

The Denso Gear Reduction Starter Motor is a 12V, 3.0kW starter with an 11-tooth pinion, type GR, supplied with anti-clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (connector), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing multiple Denso and Isuzu OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Isuzu | Not specified |
Key Features
- 12V, 3.0kW gear reduction starter motor
- 11-tooth pinion
- Type GR
- Anti-clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (connector)
- Cross-references six OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 428000-5860 | Denso |
| 428000-5861 | Denso |
| 428000-5862 | Denso |
| 428000-5863 | Denso |
| 428080-5863 | Denso |
| 8-98088669-3 | Isuzu |

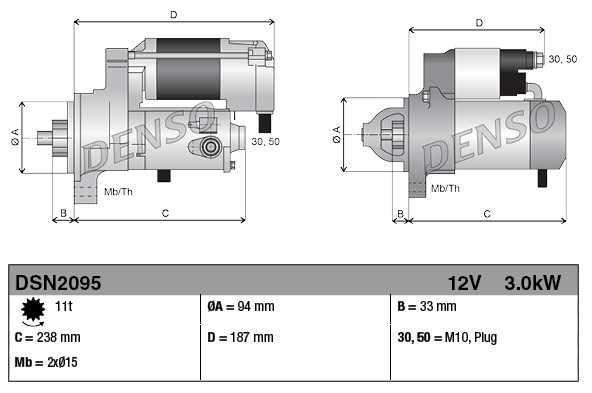

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 3.0 kW |
| No. of pinion teeth | 11 |
| Holes / PCD | 2 x 15.0mm / - |
| Spacing flange to flywheel | 33.0 mm |
| Installation length | 238.0 mm |
| Fitting diameter | 94.0 mm |
| Direction of rotation | Anti-clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (connector) |
| Part number | 3780010174 |
| Reference number | DSN2095 |
| Weight | 8.02 kg |
| EAN | 8717613114070 |
| Condition | New |
