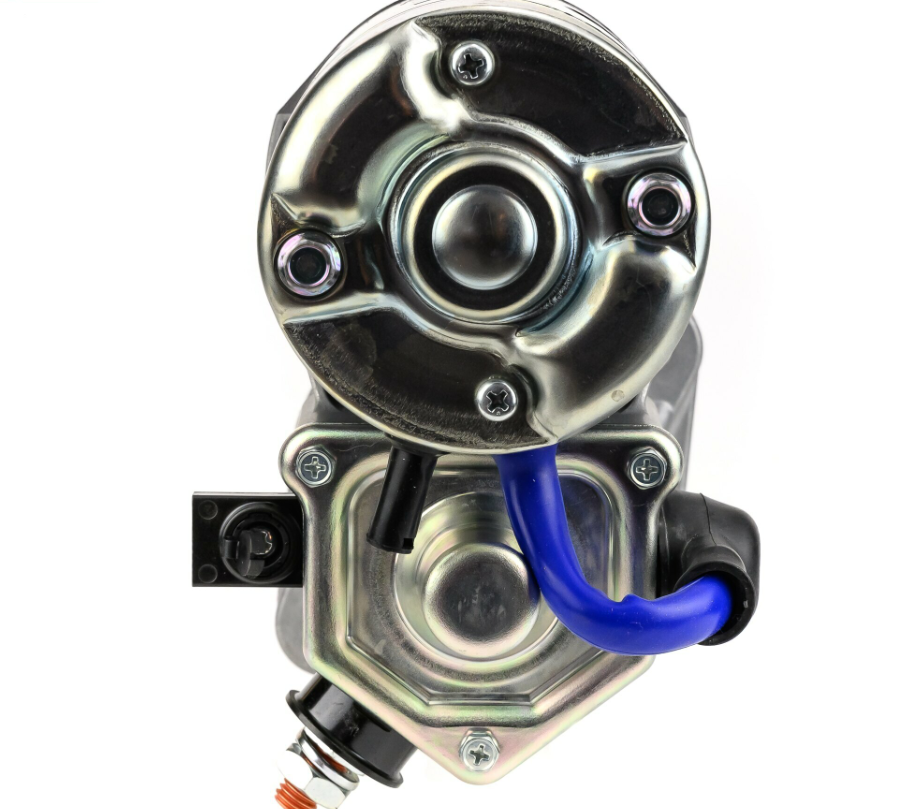

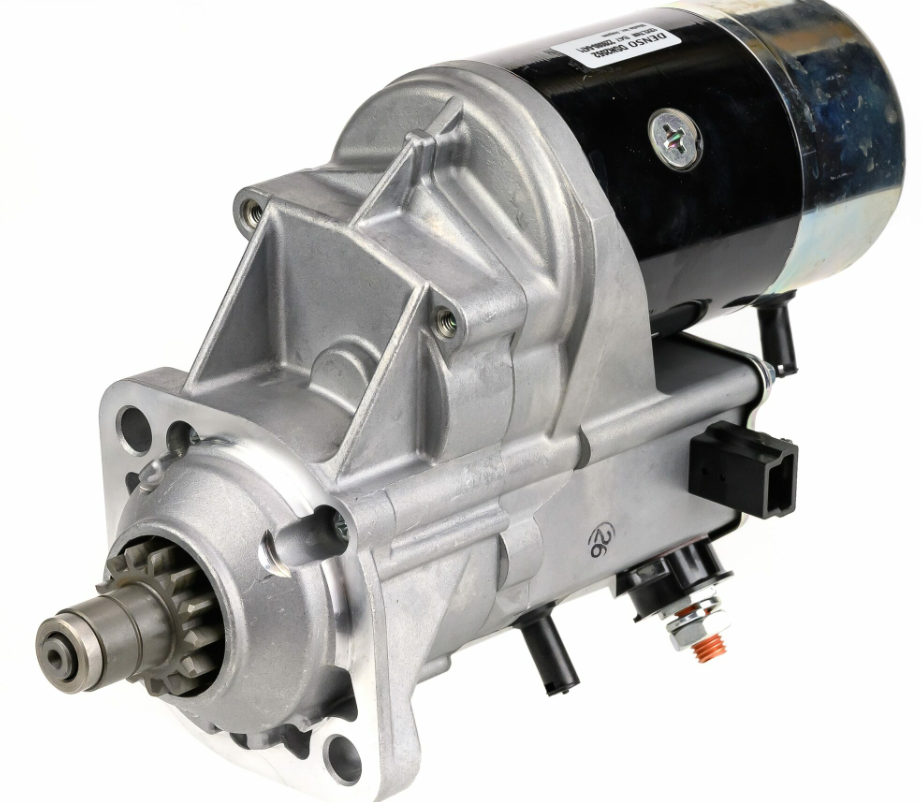

The Denso Gear Reduction Starter Motor is a 12V, 2.7kW starter with a 13-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso and John Deere OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting equipment powered by the John Deere PowerTech 6059 engine (2011 onwards).
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | 6059 engine (2011) |
Key Features
- 12V, 2.7kW gear reduction starter motor
- 13-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Fits equipment using the John Deere 6059 engine
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 028000-8400 | Denso |
| 028000-8401 | Denso |
| 028000-8402 | Denso |
| 028000-8403 | Denso |
| 028000-8404 | Denso |
| 028000-8405 | Denso |
| 228000-6470 | Denso |
| 228000-6471 | Denso |
| 228080-6471 | Denso |
| RE19275 | John Deere |
| RE51447 | John Deere |
| RE54092 | John Deere |
| RE540925 | John Deere |
| RE59590 | John Deere |
| RE68470 | John Deere |

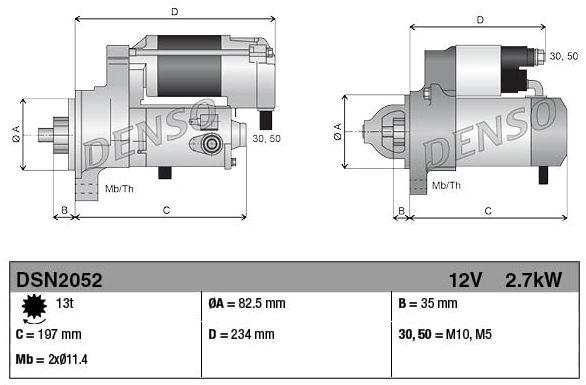

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 2.7 kW |
| No. of pinion teeth | 13 |
| Holes / PCD | 2 x 11.4mm / - |
| Spacing flange to flywheel | 35.0 mm |
| Installation length | 234.0 mm |
| Fitting diameter | 82.5 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010138 |
| Reference number | DSN2052 |
| Weight | 8.90 kg |
| EAN | 8717613114216 |
| Condition | New |
