Geared Starter Motor - Denso 12V 2.7kW 13T - John Deere is ordered in from the supplier and will be dispatched as soon as it arrives.

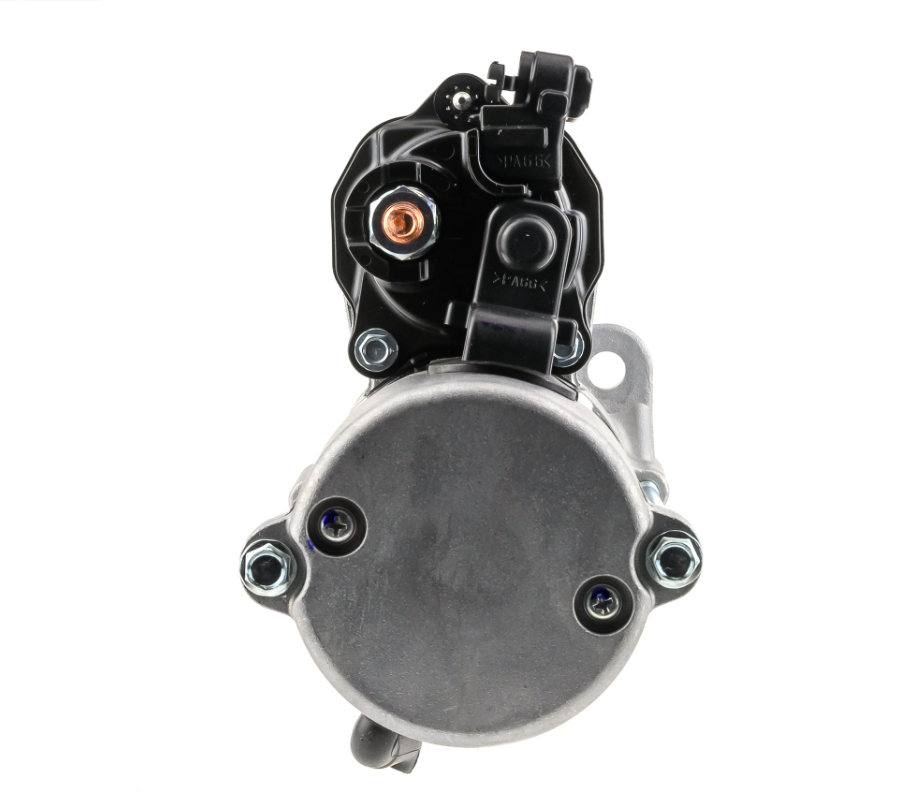

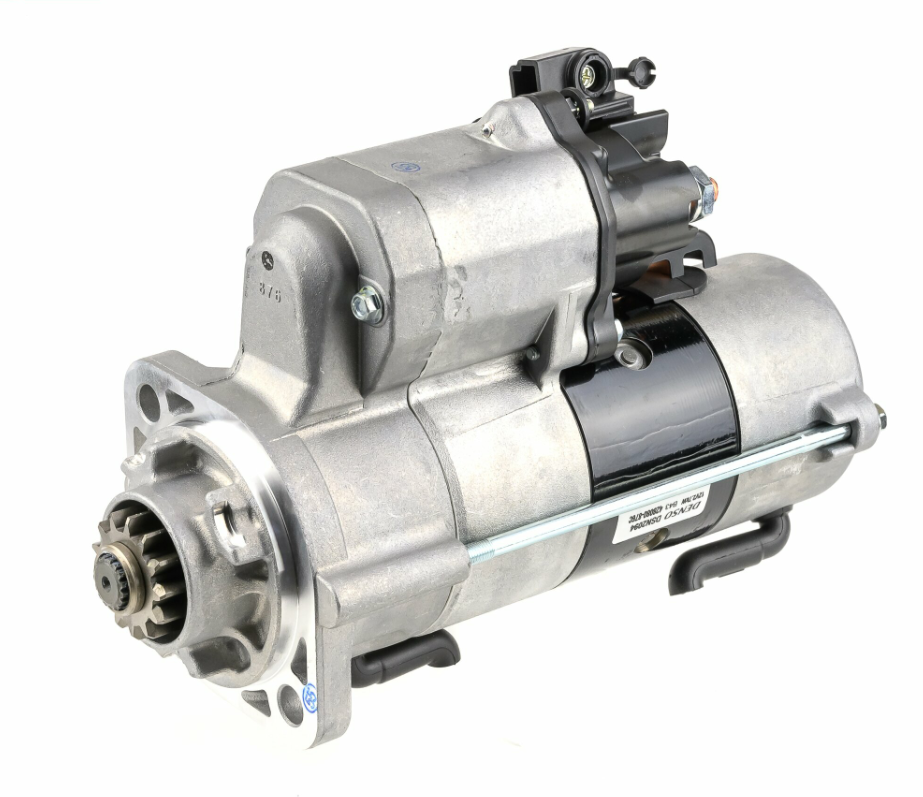

The Denso Gear Reduction Starter Motor is a 12V, 2.7kW starter with a 13-tooth pinion, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and John Deere OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Key Features
- 12V, 2.7kW gear reduction starter motor
- 13-tooth pinion
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Cross-references three OE part numbers
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | Not specified |
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 428000-8760 | Denso |
| 428080-8760 | Denso |
| RE531501 | John Deere |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 2.7 kW |
| No. of pinion teeth | 13 |
| Holes / PCD | 2 x 11.4mm / - |
| Spacing flange to flywheel | 35.0 mm |
| Installation length | 236.0 mm |
| Fitting diameter | 82.5 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010173 |
| Reference number | DSN2094 |
| Weight | 7.92 kg |
| EAN | 8717613114261 |
| Condition | New |
