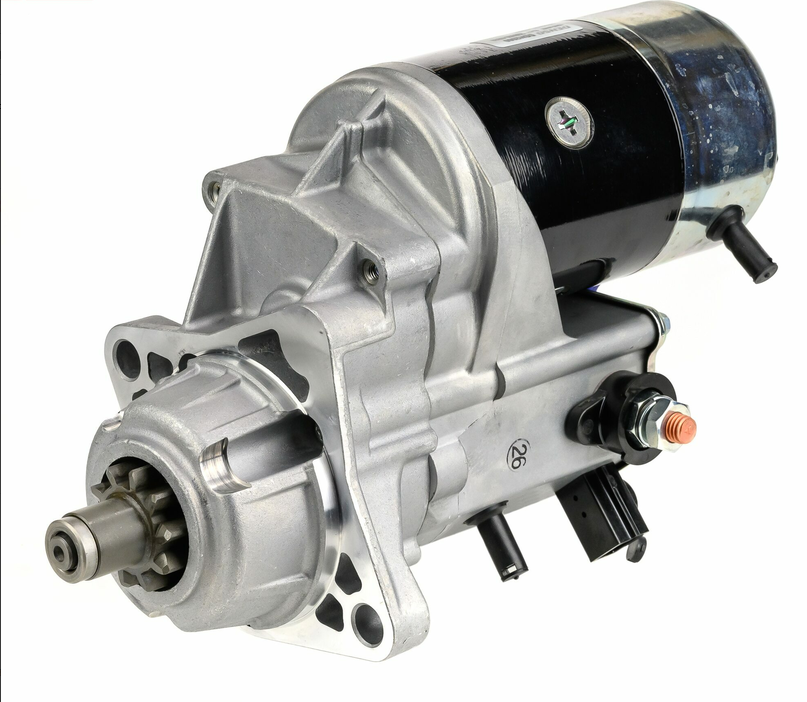

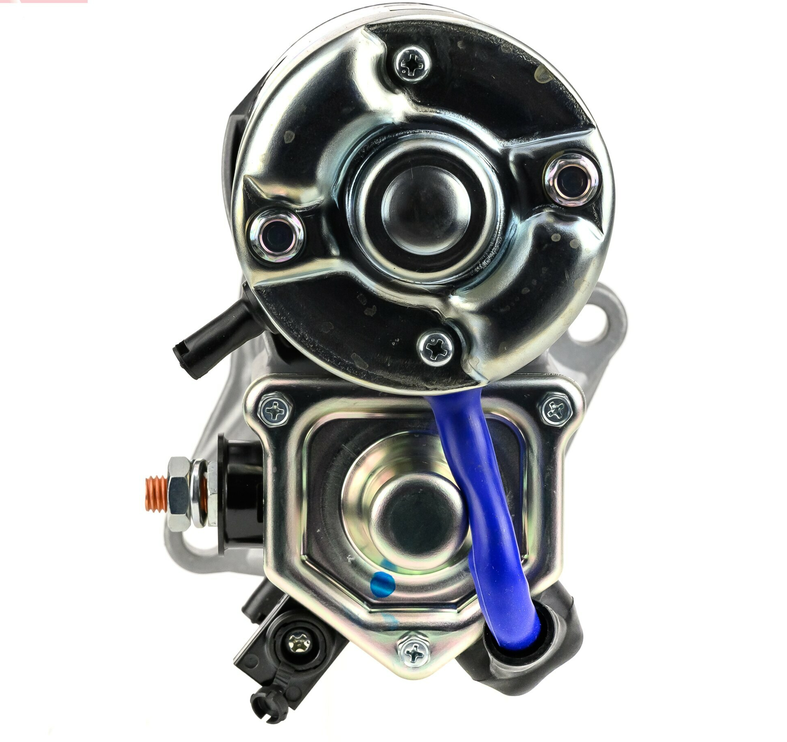

Denso gear reduction starter motor with a nominal voltage of 12V and nominal power of 2.5kW. It has a 10-tooth pinion and rotates clockwise. Connections are made via terminal 30 (M10) and terminal 50 (M5).

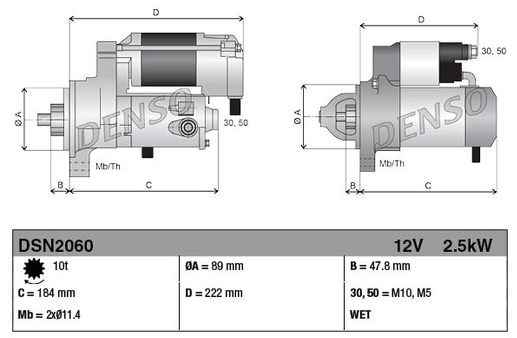

The unit has an installation length of 222.0mm, a fitting diameter of 89.0mm, and a spacing of 47.8mm from flange to flywheel. It is fitted using 2 x 11.4mm holes. This part carries the reference number DSN2060 and has confirmed cross-references to John Deere applications.
Fitment
| Brand | Series/Type |
|---|---|
| John Deere | Not specified (see OE cross-reference) |
Key Features
- Nominal voltage 12V, nominal power 2.5kW
- 10-tooth pinion, Gear Reduction (GR) type
- Clockwise rotation
- Terminal 30 (M10) and terminal 50 (M5) connections
- Confirmed fitment: John Deere equipment (specific models not supplied)
- 9 OE cross-reference numbers (John Deere and Denso)
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2060 | Reference number |
| 228000-0840 | Denso |
| 228000-0841 | Denso |
| 228000-0842 | Denso |
| 228000-0843 | Denso |
| 228000-0844 | Denso |
| 228080-0844 | Denso |
| RE50165 | John Deere |
| RE54091 | John Deere |
| RE59588 | John Deere |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction (GR) |
| Nominal voltage | 12V |
| Nominal power | 2.5kW |
| No. of pinion teeth | 10 |
| Holes/PCD | 2 x 11.4mm |
| Spacing flange to flywheel | 47.8mm |
| Installation length | 222.0mm |
| Fitting diameter | 89.0mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), terminal 50 (M5) |
| Part number | 3780010143 |
| Reference number | DSN2060 |
| Weight | 8.89 kg |
| EAN | 8717613114223 |
| Condition | New |
