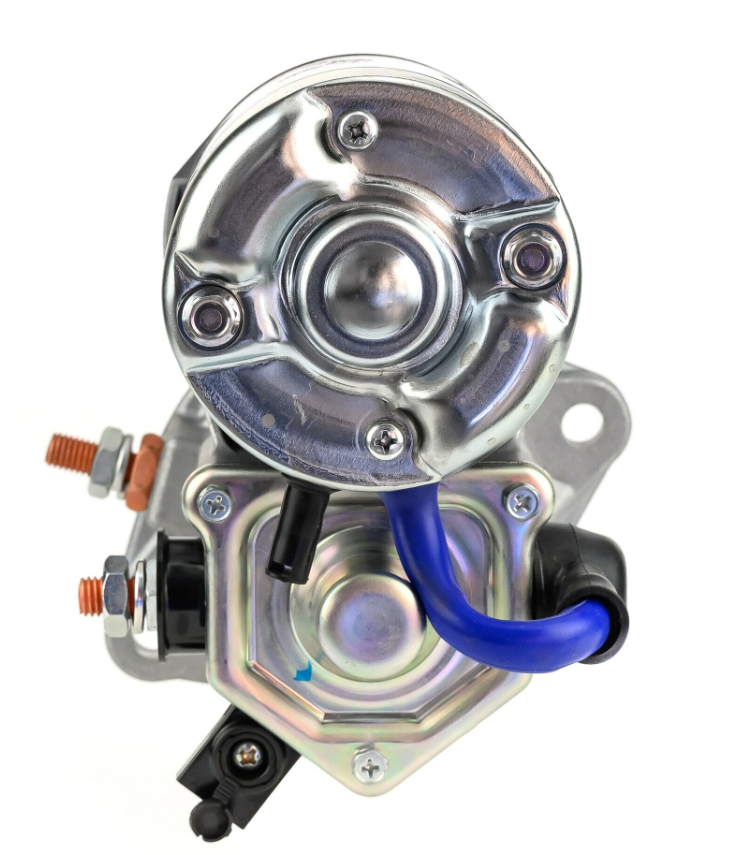

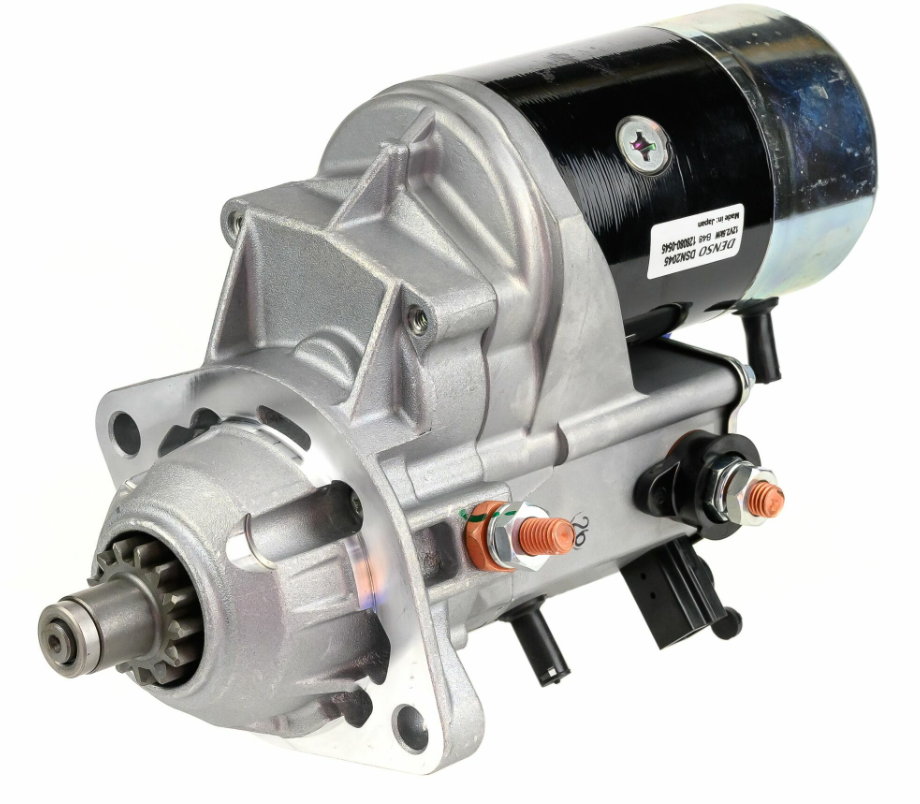

The Denso Gear Reduction Starter Motor is a 12V, 2.5kW starter with a 13-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso and Cummins OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Cummins | Not specified |
Key Features
- 12V, 2.5kW gear reduction starter motor
- 13-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 128000-0540 | Denso |
| 128000-0541 | Denso |
| 128000-0542 | Denso |
| 128000-0543 | Denso |
| 128000-0544 | Denso |
| 128000-0545 | Denso |
| 128000-9500 | Denso |
| 128000-9501 | Denso |
| 128000-9502 | Denso |
| 128000-9503 | Denso |
| 128000-9504 | Denso |
| 128080-0545 | Denso |
| 3904466 | Cummins |
| 3920403 | Cummins |
| 3926960 | Cummins |
| 3957585 | Cummins |
| 3957594 | Cummins |

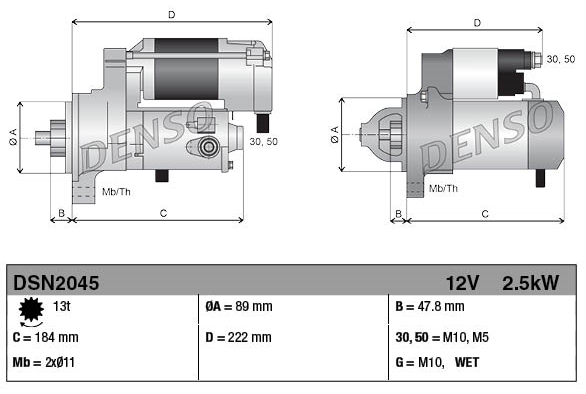

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 2.5 kW |
| No. of pinion teeth | 13 |
| Holes / PCD | 2 x 11.0mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 222.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010133 |
| Reference number | DSN2045 |
| Weight | 8.96 kg |
| EAN | 8717613114001 |
| Condition | New |
