Denso Gear Reduction Starter Motor 12V 2.2kW - Hitachi ZX75U
Denso Gear Reduction Starter Motor 12V 2.2kW - Hitachi ZX75U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

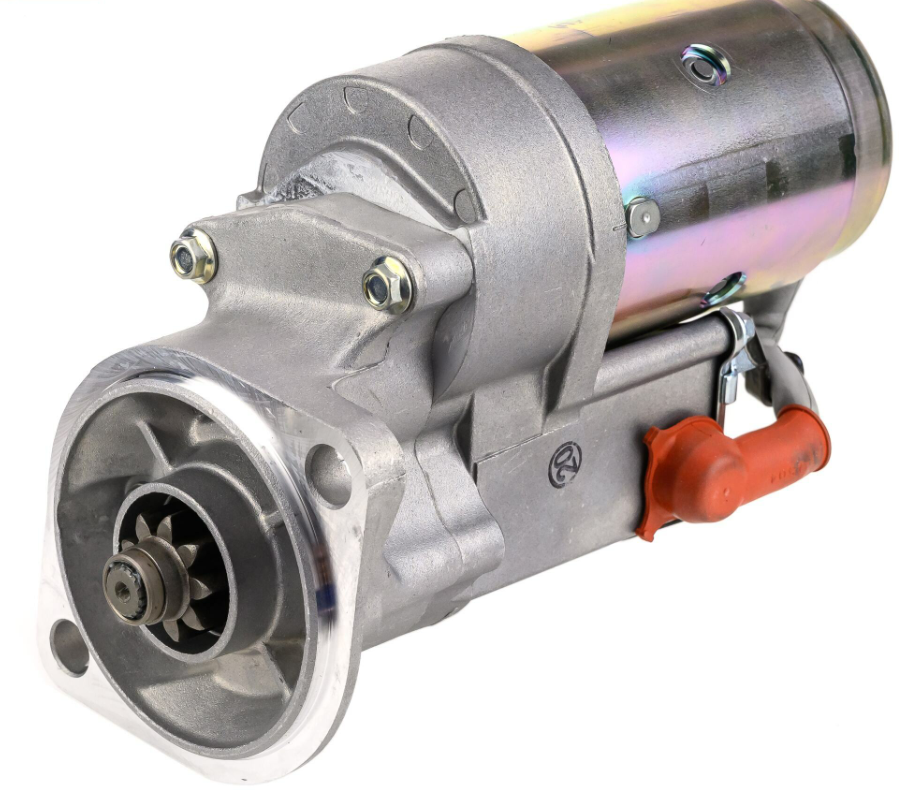

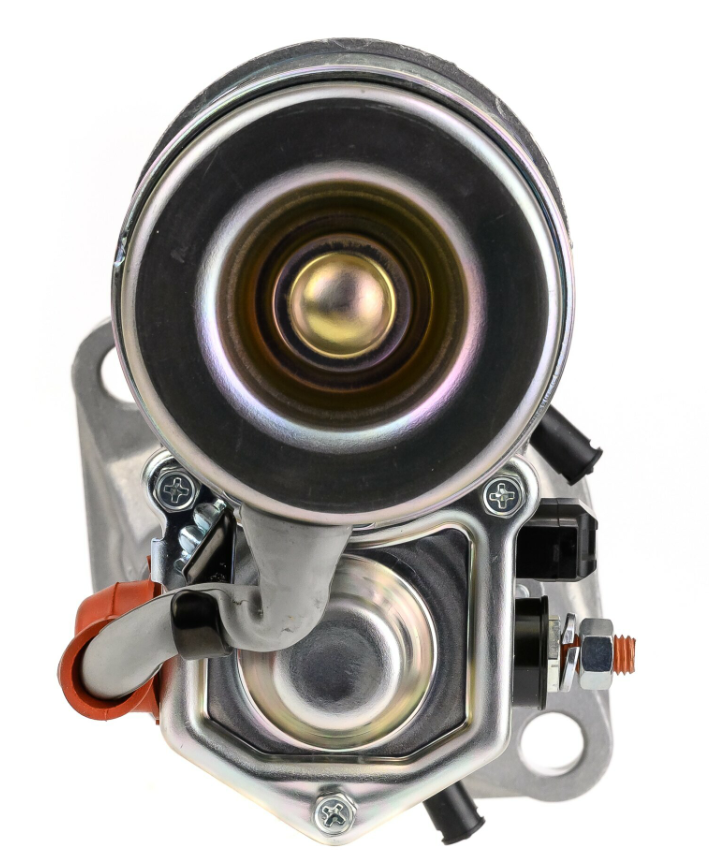

The Denso Gear Reduction Starter Motor is a 12V, 2.2kW starter with a 9-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M8) and terminal 50 (connector), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso, Hitachi, Isuzu, and Perkins OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Hitachi ZX75U mini excavator.
Fitment
| Brand | Series / Type |
|---|---|
| Hitachi | ZX, ZX75U |
Key Features
- 12V, 2.2kW gear reduction starter motor
- 9-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M8) and terminal 50 (connector)
- Fits Hitachi ZX75U mini excavator
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2061 | Reference number |
| 128000-0830 | Denso |
| 128000-0831 | Denso |
| 128000-0832 | Denso |
| 128000-0833 | Denso |
| 228000-1890 | Denso |
| 228000-1891 | Denso |
| 228000-1892 | Denso |
| 228000-1893 | Denso |
| 228000-8040 | Denso |
| 228000-8041 | Denso |
| 228080-1893 | Denso |
| 8970429972 | Hitachi |
| 8-94133758-5 | Isuzu |
| 8-97042997-2 | Isuzu |
| 2873K401 | Perkins |

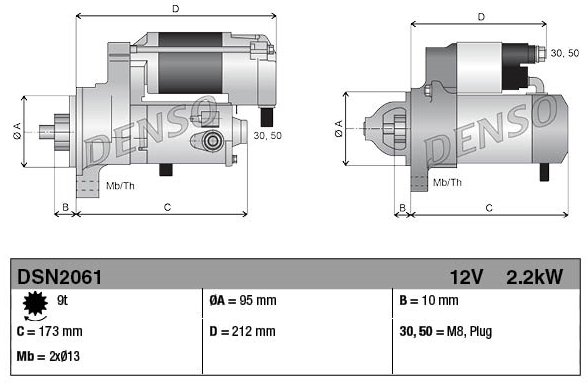

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 2.2 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 2 x 13.0mm / - |
| Spacing flange to flywheel | 10.0 mm |
| Installation length | 212.0 mm |
| Fitting diameter | 95.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), Terminal 50 (connector) |
| Part number | 3780010144 |
| Weight | 6.35 kg |
| Condition | New |
