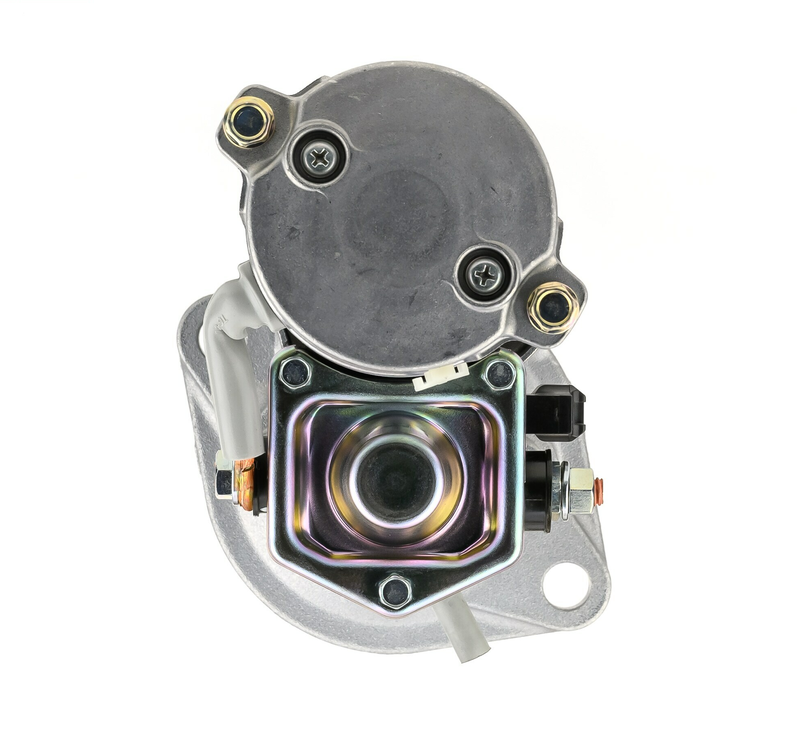

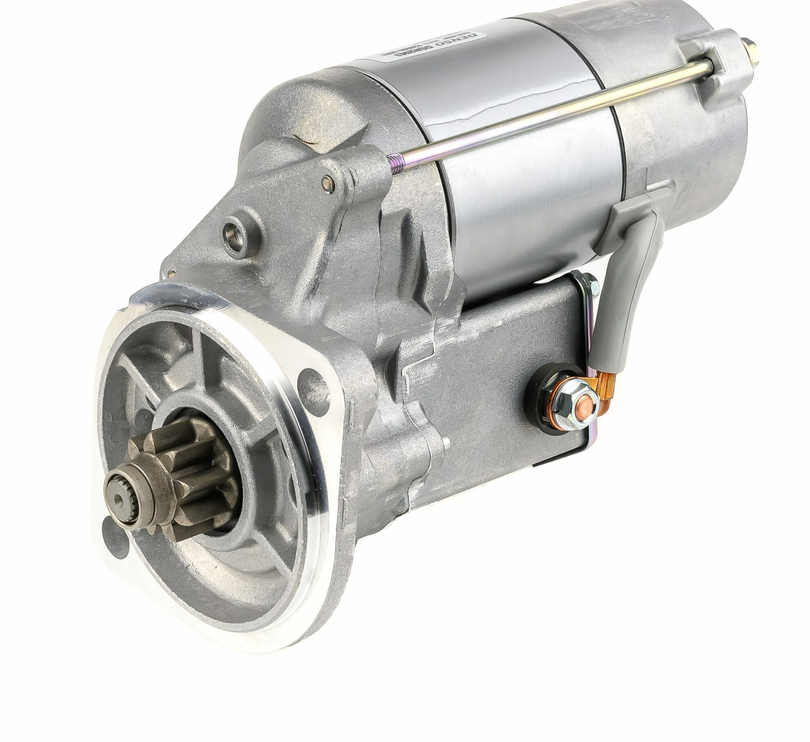

Denso gear reduction starter motor with a nominal voltage of 12V and nominal power of 2.0kW. It has a 9-tooth pinion and rotates clockwise. Connections are made via terminal 30 (M8) and terminal 50 (connector).

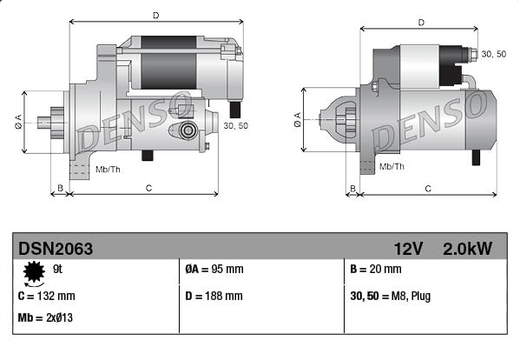

The unit has an installation length of 188.0mm, a fitting diameter of 95.0mm, and a spacing of 20.0mm from flange to flywheel. It is fitted using 2 x 13.0mm holes. This part carries the reference number DSN2063 and has a confirmed cross-reference to Isuzu engine applications.
Fitment
| Brand | Series/Type |
|---|---|
| Isuzu | Not specified (see OE cross-reference) |
Key Features
- Nominal voltage 12V, nominal power 2.0kW
- 9-tooth pinion, Gear Reduction (GR) type
- Clockwise rotation
- Terminal 30 (M8) and terminal 50 (connector) connections
- Confirmed fitment: Isuzu engines (specific model not supplied)
- 5 OE cross-reference numbers (Isuzu and Denso)
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2063 | Reference number |
| 228000-3850 | Denso |
| 228000-3851 | Denso |
| 228000-3852 | Denso |
| 228080-3852 | Denso |
| 8-97112865-2 | Isuzu |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction (GR) |
| Nominal voltage | 12V |
| Nominal power | 2.0kW |
| No. of pinion teeth | 9 |
| Holes/PCD | 2 x 13.0mm |
| Spacing flange to flywheel | 20.0mm |
| Installation length | 188.0mm |
| Fitting diameter | 95.0mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), terminal 50 (connector) |
| Part number | 3780010146 |
| Reference number | DSN2063 |
| Weight | 5.07 kg |
| EAN | 8717613114063 |
| Condition | New |
