Denso Gear Reduction Starter Motor 12V 1.4kW 9-Tooth - Kubota KX018-4
Denso Gear Reduction Starter Motor 12V 1.4kW 9-Tooth - Kubota KX018-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

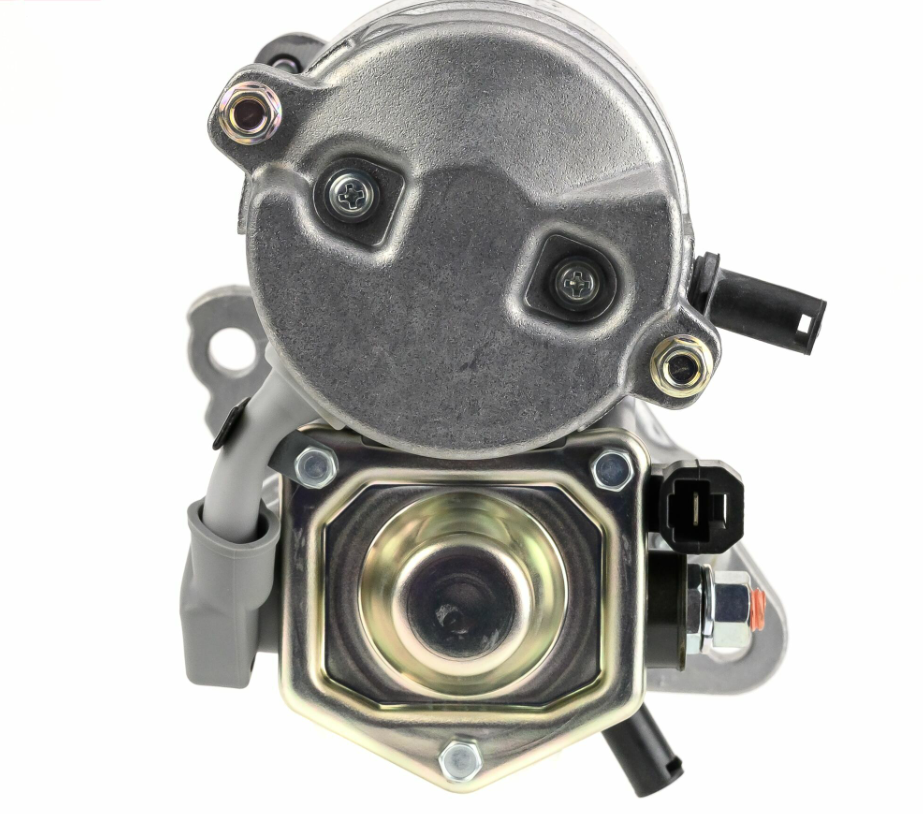

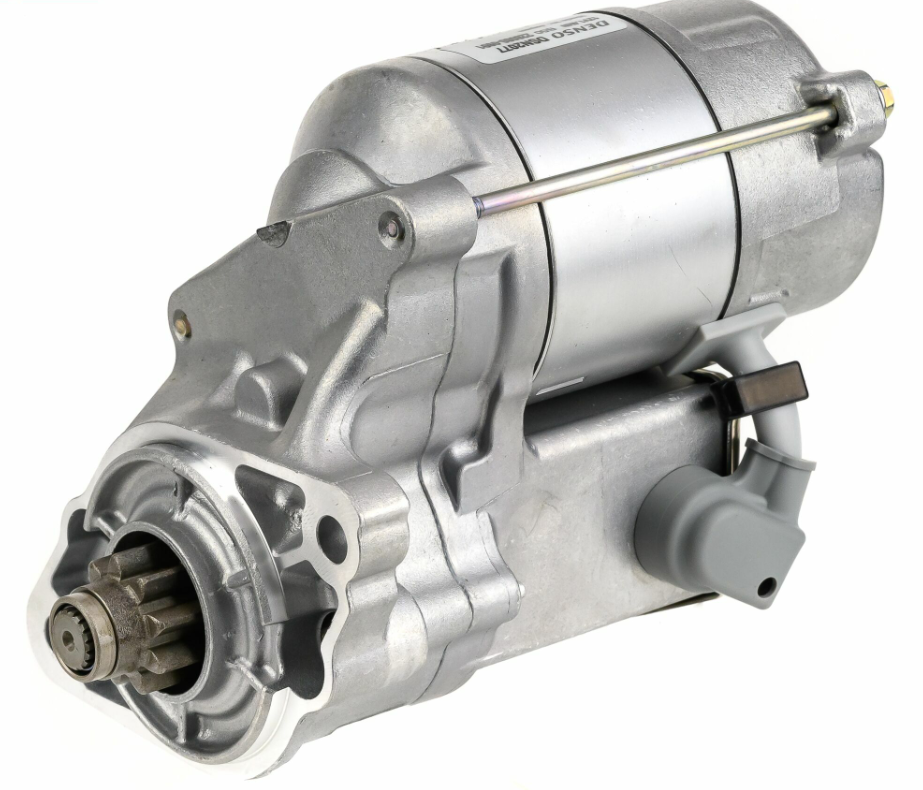

The Denso Gear Reduction Starter Motor is a 12V, 1.4kW starter with a 9-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M8) and terminal 50 (connector), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso and Kubota OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Kubota KX018-4 mini excavator.
Fitment
| Brand | Series / Type |
|---|---|
| Kubota | KX, KX018-4 |
Key Features
- 12V, 1.4kW gear reduction starter motor
- 9-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M8) and terminal 50 (connector)
- Fits Kubota KX018-4 mini excavator
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 028000-6140 | Denso |
| 128000-0050 | Denso |
| 128000-4900 | Denso |
| 228000-0990 | Denso |
| 228000-0991 | Denso |
| 228000-1060 | Denso |
| 228000-1061 | Denso |
| 228080-0991 | Denso |
| 19212-63011 | Kubota |
| 19215-63011 | Kubota |
| 19215-63012 | Kubota |
| 19215-63013 | Kubota |
| 19269-63011 | Kubota |
| 19269-63012 | Kubota |
| 19269-63013 | Kubota |

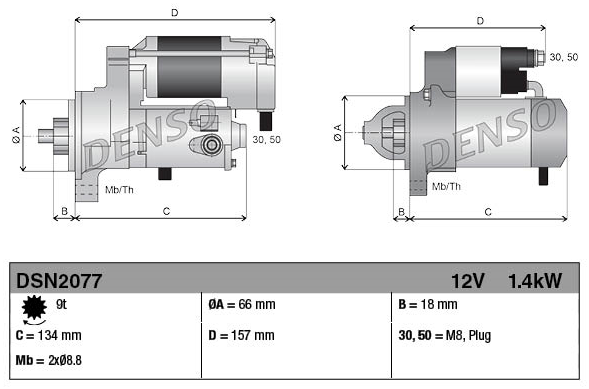

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.4 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 2 x 8.8mm / - |
| Spacing flange to flywheel | 18.0 mm |
| Installation length | 157.0 mm |
| Fitting diameter | 66.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), Terminal 50 (connector) |
| Part number | 3780010158 |
| Reference number | DSN2077 |
| Weight | 4.04 kg |
| Condition | New |
