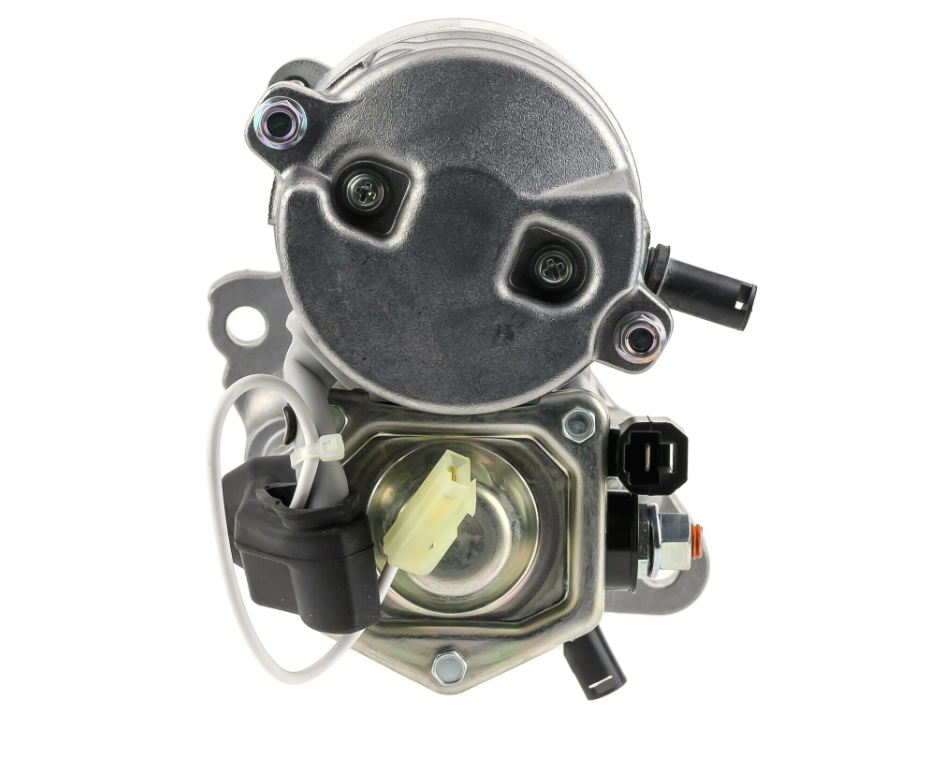

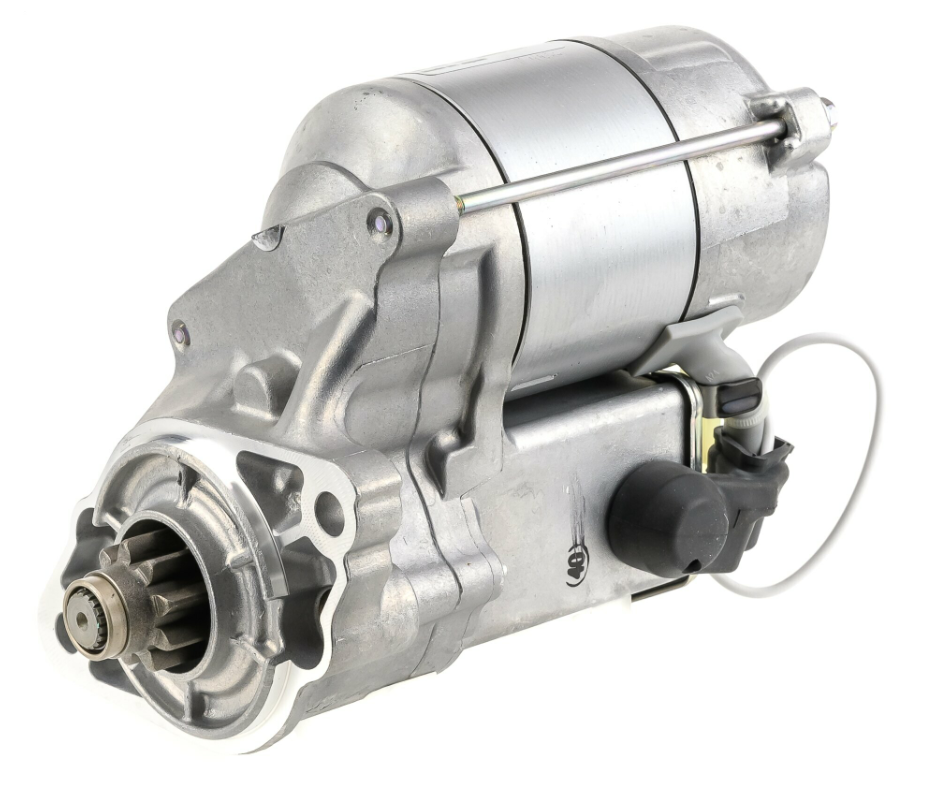

The Denso Gear Reduction Starter Motor is a 12V, 1.4kW starter with a 9-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M8) and terminal 50 (connector), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso, Bobcat, and Kubota OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Bobcat 300 series (319) and E series (E16) mini excavators, alongside compatible Kubota applications.
Fitment
| Brand | Series / Type |
|---|---|
| Bobcat | 300, 319 |
| Bobcat | E, E16 |
| Kubota | Not specified |
Key Features
- 12V, 1.4kW gear reduction starter motor
- 9-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M8) and terminal 50 (connector)
- Fits Bobcat 319 and E16 mini excavators
- Cross-references five OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-1530 | Denso |
| 228000-1531 | Denso |
| 228080-1531 | Denso |
| 16611-63013 | Kubota |
| 6688372 | Bobcat |

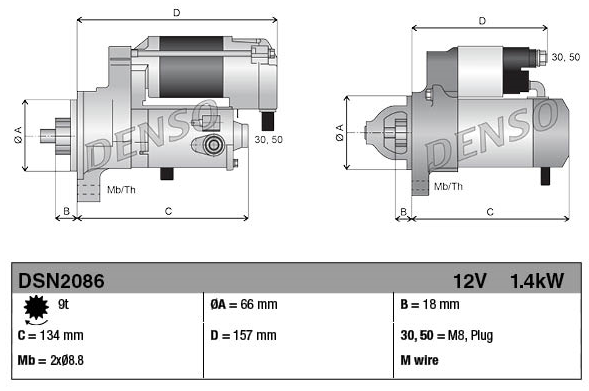

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.4 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 2 x 8.8mm / - |
| Spacing flange to flywheel | 18.0 mm |
| Installation length | 157.0 mm |
| Fitting diameter | 66.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), Terminal 50 (connector) |
| Part number | 3780010166 |
| Reference number | DSN2086 |
| Weight | 4.04 kg |
| Condition | New |
