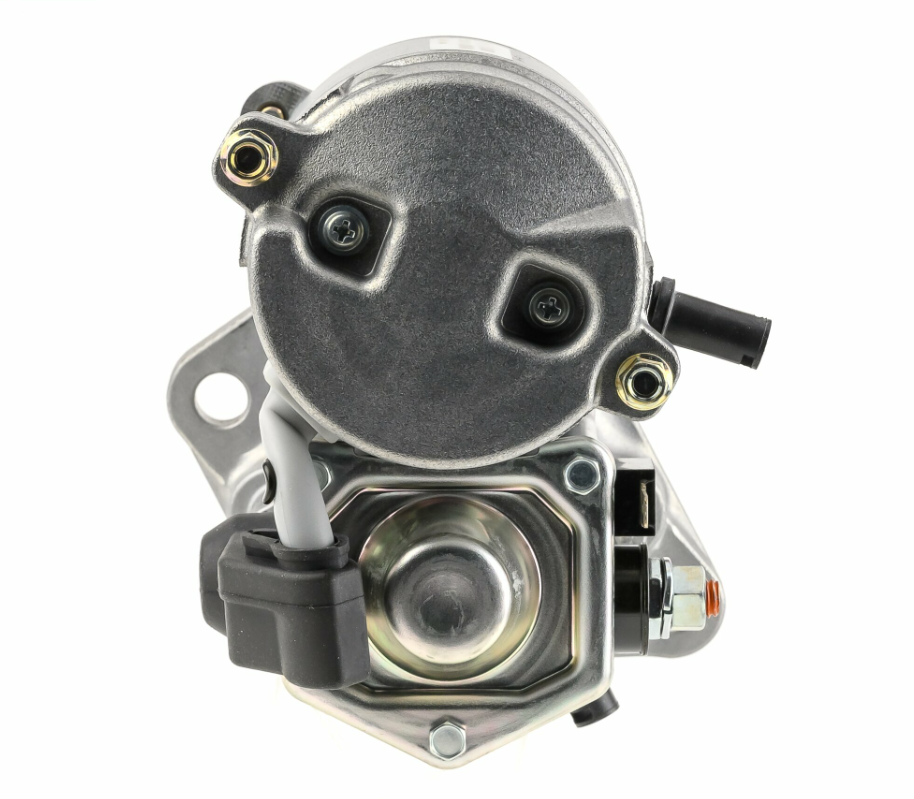

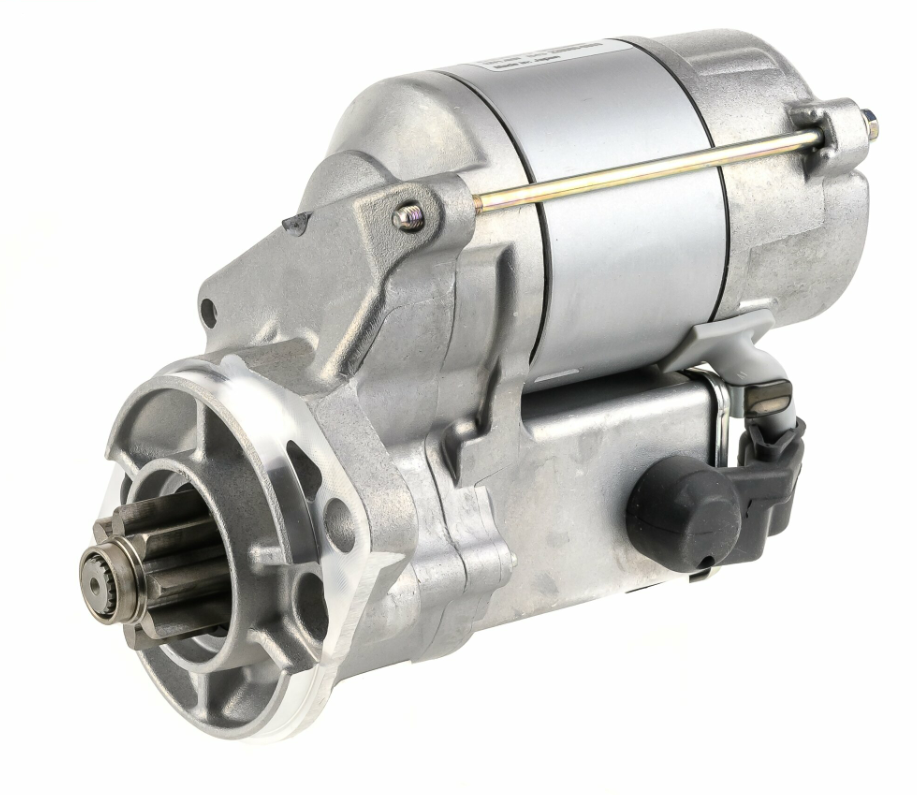

The Denso Gear Reduction Starter Motor is a 12V, 1.4kW starter with an 8-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M8) and terminal 50 (connector), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing multiple Denso and Kubota OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Kubota | Not specified |
Key Features
- 12V, 1.4kW gear reduction starter motor
- 8-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M8) and terminal 50 (connector)
- Cross-references six OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-8690 | Denso |
| 228000-8691 | Denso |
| 228000-9800 | Denso |
| 228080-9800 | Denso |
| RC411-53202 | Kubota |
| T1150-16801 | Kubota |

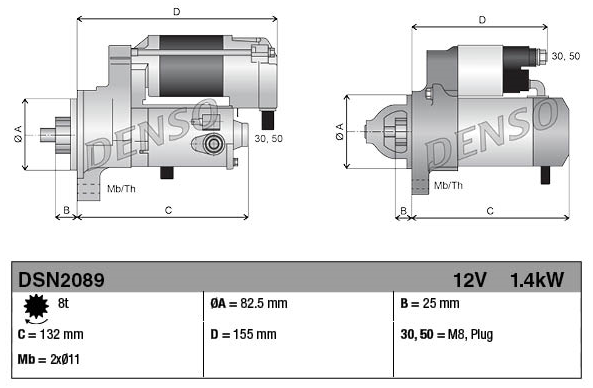

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.4 kW |
| No. of pinion teeth | 8 |
| Holes / PCD | 2 x 11.0mm / - |
| Spacing flange to flywheel | 25.0 mm |
| Installation length | 155.0 mm |
| Fitting diameter | 82.5 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), Terminal 50 (connector) |
| Part number | 3780010168 |
| Reference number | DSN2089 |
| Weight | 4.11 kg |
| EAN | 8717613114339 |
| Condition | New |
