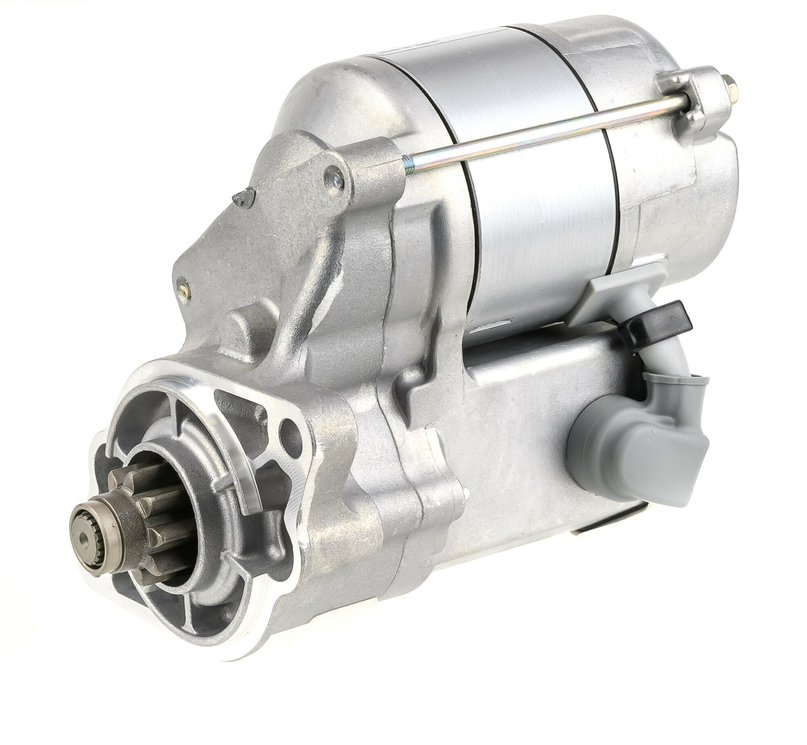

Denso Gear Reduction Starter Motor 12V 1.2kW - Kubota KX36-3, RT100
Denso gear reduction starter motor with a nominal voltage of 12V and nominal power of 1.2kW. It has a 9-tooth pinion and rotates clockwise. Connections are made via terminal 30 (M8) and terminal 50 (connector).

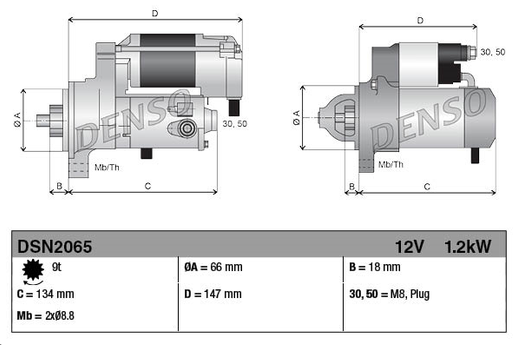

The unit has an installation length of 147.0mm, a fitting diameter of 66.0mm, and a spacing of 18.0mm from flange to flywheel. It is fitted using 2 x 8.8mm holes. This part carries the reference number DSN2065 and has confirmed fitment to Kubota mini excavator and tractor models.
Fitment
| Brand | Series/Type |
|---|---|
| Kubota | KX Series: KX36-3 |
| Kubota | RT Series: RT100 |
Key Features
- Nominal voltage 12V, nominal power 1.2kW
- 9-tooth pinion, Gear Reduction (GR) type
- Clockwise rotation
- Terminal 30 (M8) and terminal 50 (connector) connections
- Confirmed fitment: Kubota KX36-3 mini excavator and RT100
- 4 OE cross-reference numbers (Kubota and Denso)
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2065 | Reference number |
| 228000-0950 | Denso |
| 228000-0951 | Denso |
| 228080-0951 | Denso |
| 16285-63012 | Kubota |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction (GR) |
| Nominal voltage | 12V |
| Nominal power | 1.2kW |
| No. of pinion teeth | 9 |
| Holes/PCD | 2 x 8.8mm |
| Spacing flange to flywheel | 18.0mm |
| Installation length | 147.0mm |
| Fitting diameter | 66.0mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), terminal 50 (connector) |
| Part number | 3780010148 |
| Reference number | DSN2065 |
| Weight | 3.75 kg |
| Condition | New |
