Geared Starter Motor - Denso 12V 1.2kW 9T - Kubota
£440.50 excl VAT
Geared Starter Motor - Denso 12V 1.2kW 9T - Kubota is ordered in from the supplier and will be dispatched as soon as it arrives.

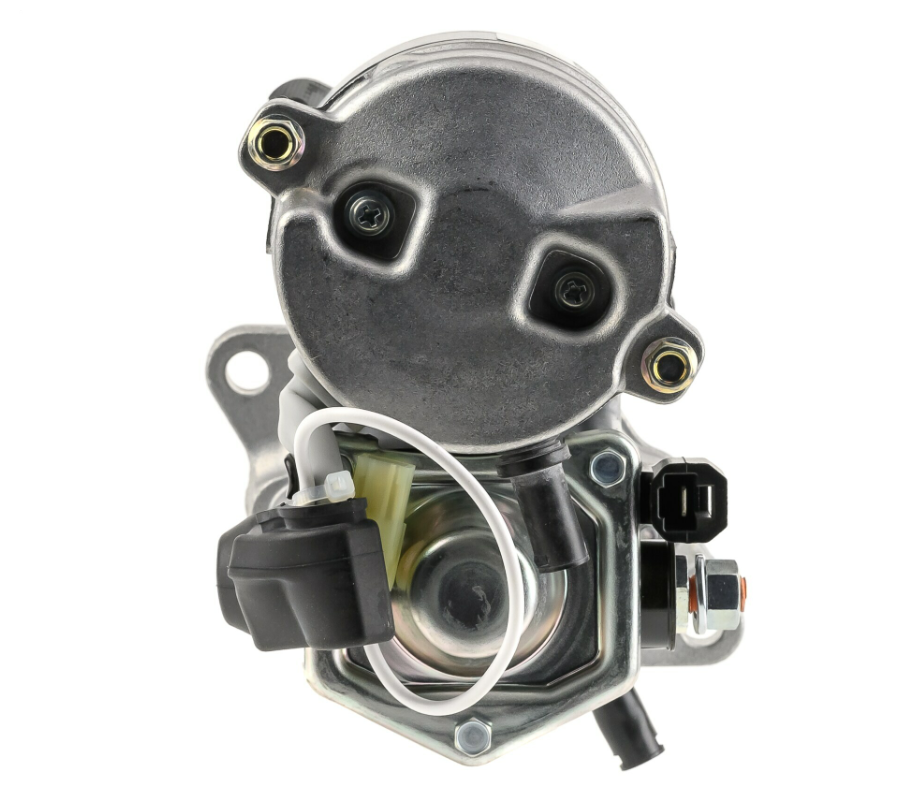

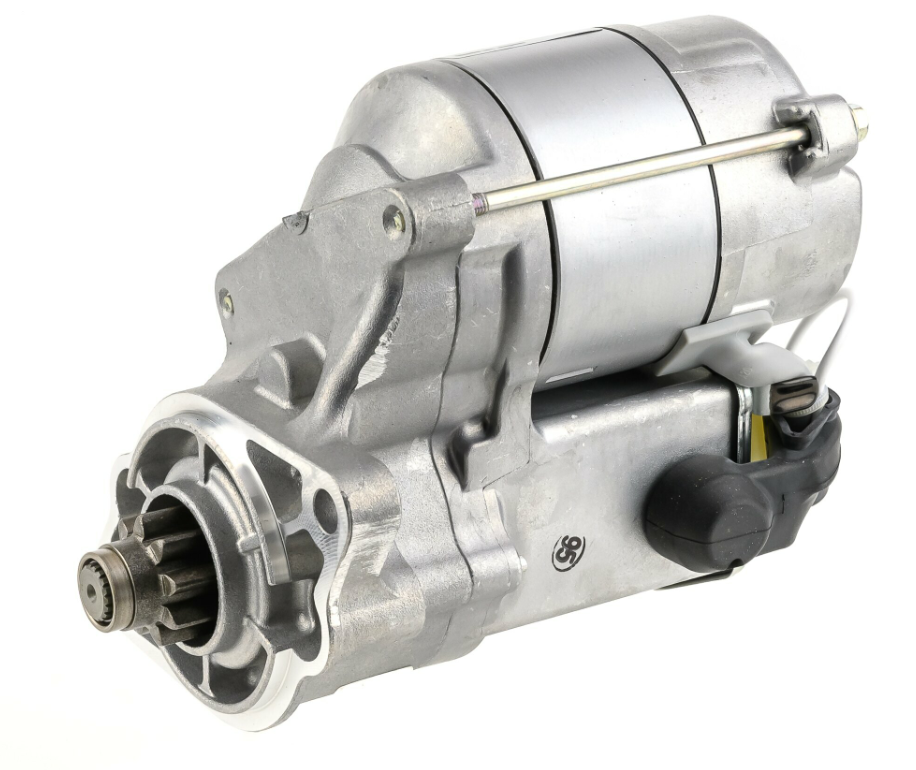

The Denso Gear Reduction Starter Motor is a 12V, 1.2kW starter with a 9-tooth pinion, supplied with clockwise rotation. It connects via terminal 30 (M8) and terminal 50 (connector), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and Kubota OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Kubota K, KX, and U series mini excavators.
Key Features
- 12V, 1.2kW gear reduction starter motor
- 9-tooth pinion
- Clockwise rotation
- Dual terminal connection: terminal 30 (M8) and terminal 50 (connector)
- Fits Kubota K008, KX41-2 Alpha, U10, U10 Alpha, and U15 mini excavators
- Cross-references three OE part numbers
Fitment
| Brand | Series / Type |
|---|---|
| Kubota | K, K008 |
| Kubota | KX, KX41-2 Alpha |
| Kubota | U, U10, U10 Alpha, U15 |
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-0980 | Denso |
| 228000-0981 | Denso |
| 228080-0981 | Denso |
| 37560-63012 | Kubota |

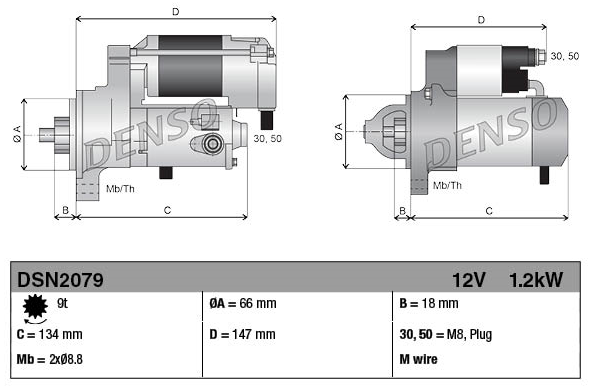

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.2 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 2 x 8.8mm / - |
| Spacing flange to flywheel | 18.0 mm |
| Installation length | 147.0 mm |
| Fitting diameter | 66.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), Terminal 50 (connector) |
| Part number | 3780010160 |
| Weight | 3.78 kg |
| Condition | New |
