Denso Gear Reduction Starter Motor 12V 1.1kW 9-Tooth - Yanmar
Denso Gear Reduction Starter Motor 12V 1.1kW 9-Tooth - Yanmar is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

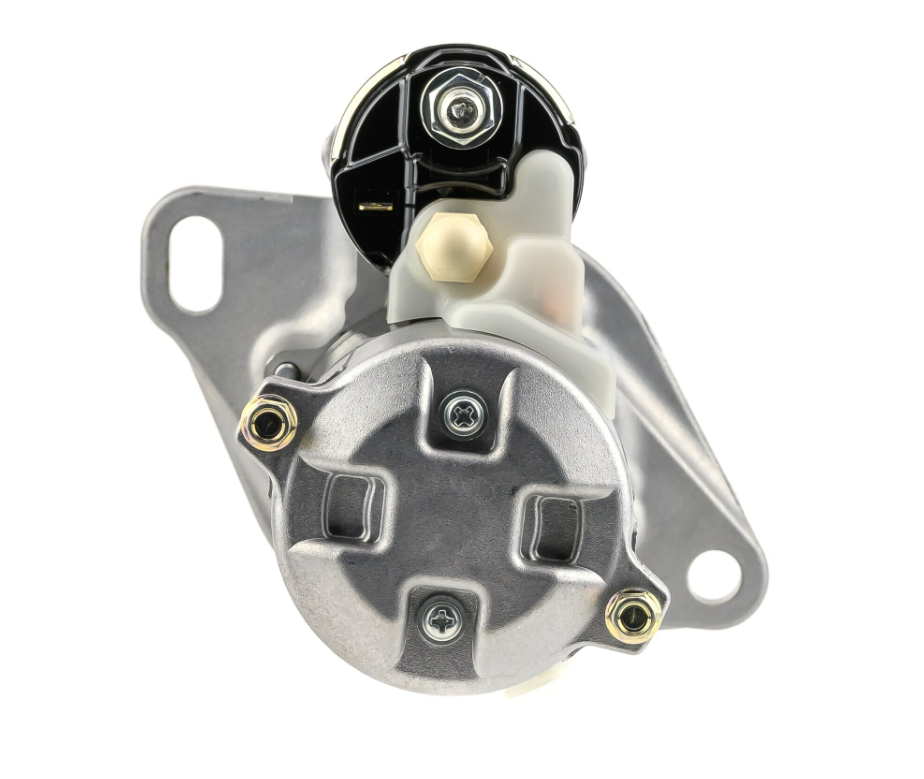

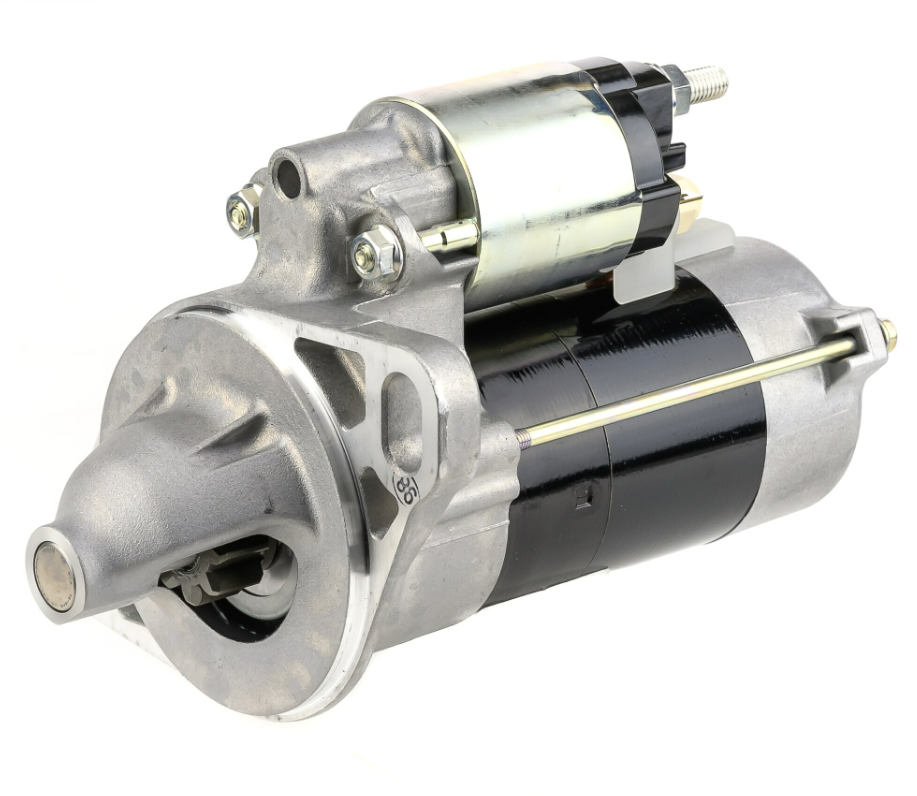

The Denso Gear Reduction Starter Motor is a 12V, 1.1kW starter with a 9-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M8) and terminal 50 (connector), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing multiple Denso and Yanmar OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Yanmar | Not specified |
Key Features
- 12V, 1.1kW gear reduction starter motor
- 9-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M8) and terminal 50 (connector)
- Cross-references six OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-7470 | Denso |
| 228000-7471 | Denso |
| 228000-7472 | Denso |
| 228080-7472 | Denso |
| 119626-77010 | Yanmar |
| 119626-77011 | Yanmar |

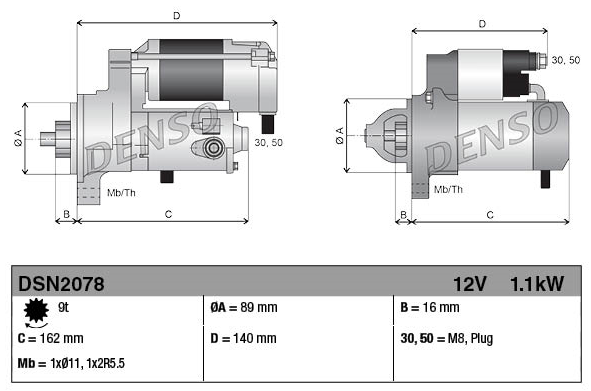

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.1 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 1 x 11.0mm / - |
| Spacing flange to flywheel | 16.0 mm |
| Installation length | 162.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), Terminal 50 (connector) |
| Part number | 3780010159 |
| Reference number | DSN2078 |
| Weight | 3.45 kg |
| EAN | 8717613114513 |
| Condition | New |
