Denso | SKU:
3780010074
Sold out
New arrival
Denso Alternator 14V 90A - John Deere
Regular price
£381.70
Unit price
Shipping calculated at checkout.
Denso Alternator 14V 90A - John Deere is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

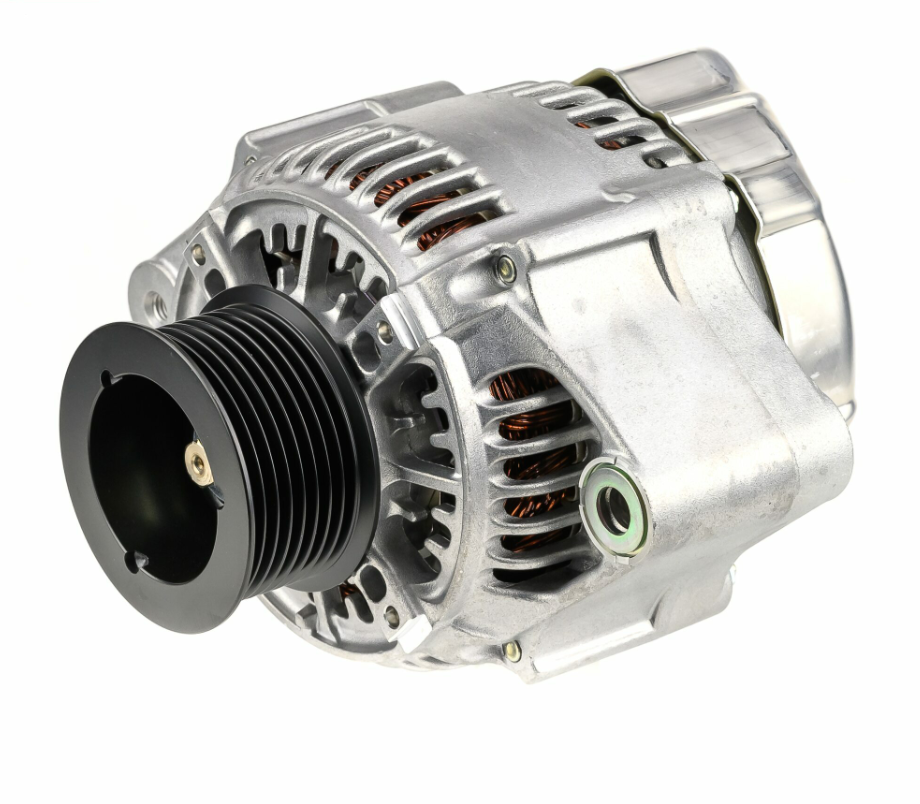

The Denso Alternator is a 14V, 90A unit with a 62.5mm pulley, Form B configuration, and PV x 8 belt type. It connects via B+ (M8) and PL26 terminals, and is a direct fit replacement using original manufacturer specifications.
Cross-referencing Denso and John Deere OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | Not specified |
Key Features
- 14V, 90A alternator
- 62.5mm pulley diameter
- Form B configuration
- PV x 8 belt type

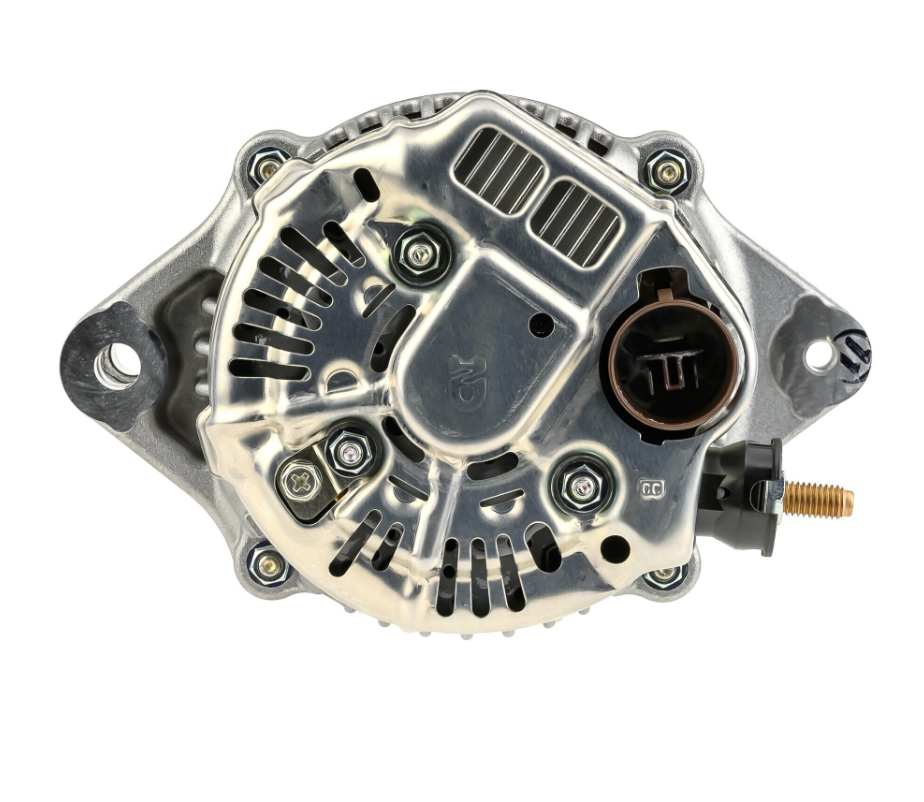

- Connections: B+ (M8), PL26
- Cross-references three OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 021080-0330 | Denso |
| 102211-1180 | Denso |
| RE500227 | John Deere |

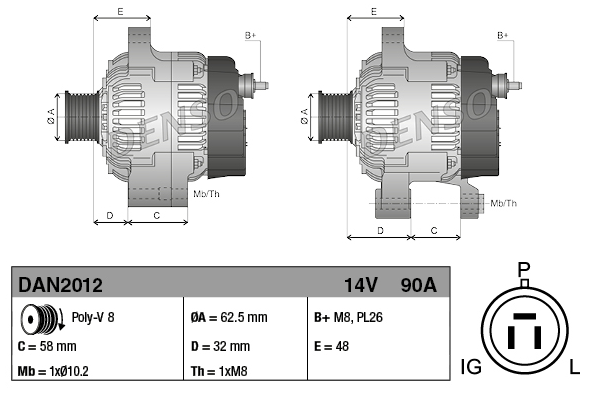

Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 90 A |
| Pulley diameter | 62.5 mm |
| Flange size | 58 mm |
| Form | B |
| Mounting hole | 10.2mm |
| Belt tension hole | 10.2mm |
| Belt width/type | PV x 8 |
| Connections | B+ (M8), PL26 |
| Part number | 3780010074 |
| Reference number | DAN2012 |
| Weight | 5.69 kg |
| EAN | 8717613113578 |
| Condition | New |
