Denso Alternator 14V 90A - Citroën, Peugeot, Mitsubishi
Denso Alternator 14V 90A - Citroën, Peugeot, Mitsubishi is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

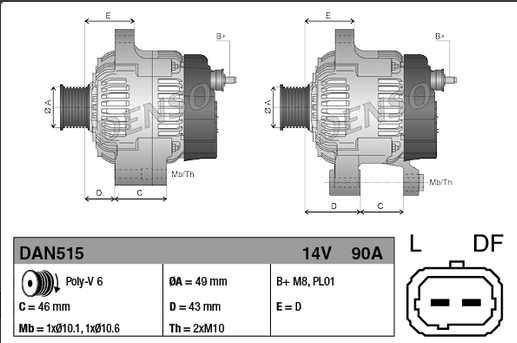

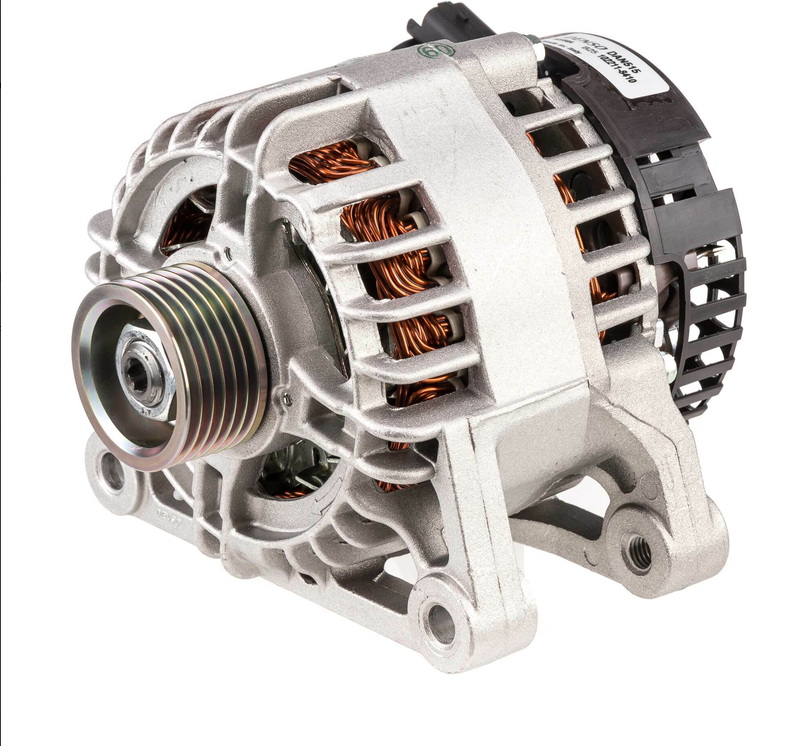

Denso alternator with a nominal voltage of 14V and a charging current of 90A. It rotates clockwise and has a Form A pulley configuration with a pulley diameter of 49.0mm and pulley spacing of 42.6mm. The belt type is PV x 6.
The unit has a flange size of 46.0mm, a mounting length/diameter of 46.0mm/10.1mm, and a mounting hole diameter of 10.1mm. This part carries the reference number DAN515 and has confirmed cross-references to Citroën and Peugeot vehicle applications (via Mitsubishi-manufactured units).
Fitment
| Brand | Series/Type |
|---|---|
| Citroën | Not specified (see OE cross-reference) |
| Peugeot | Not specified (see OE cross-reference) |
Key Features
- Nominal voltage 14V, charging current 90A
- Form A pulley, 49.0mm pulley diameter, PV x 6 belt type
- Clockwise rotation
- Confirmed fitment: Citroën and Peugeot vehicles (specific models not supplied)
- 65 OE cross-reference numbers (Citroën, Peugeot, Mitsubishi and Denso) — condensed to a representative sample below given the volume
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN515 | Reference number |
| 102211-8410 | Denso |
| 63321828 | Denso |
| 63321829 | Denso |
| A005TA6292 | Mitsubishi |
| A005TA6292C | Mitsubishi |
| A005TA6392 | Mitsubishi |
| 5702A4 | Citroën |
| 5705AP | Citroën |
| 9638543680 | Citroën |
| 9649611680 | Citroën |
| 5702A4 | Peugeot |
| 5705AP | Peugeot |
| 9638543680 | Peugeot |
| 9649611680 | Peugeot |
Specifications
| Specification | Detail |
|---|---|
| Nominal voltage | 14V |
| Charging current | 90A |
| Mounting L/d/R | 46.0mm / 10.1mm / - |
| Flange size | 46.0mm |
| Belt tension hole Ø/R | 10.6mm / - |
| Form | A |
| Direction of rotation | Clockwise |
| Pulley diameter | 49.0mm |
| Pulley spacing | 42.6mm |
| Belt width/type | PV x 6 |
| Mounting hole Ø/R | 10.1mm / - |
| Part number | 3780010088 |
| Reference number | DAN515 |
| Weight | 5.52 kg |
| EAN | 8717613019870 |
| Condition | New |
