Denso Alternator 14V 85A - JCB 500 Series, Perkins 1004

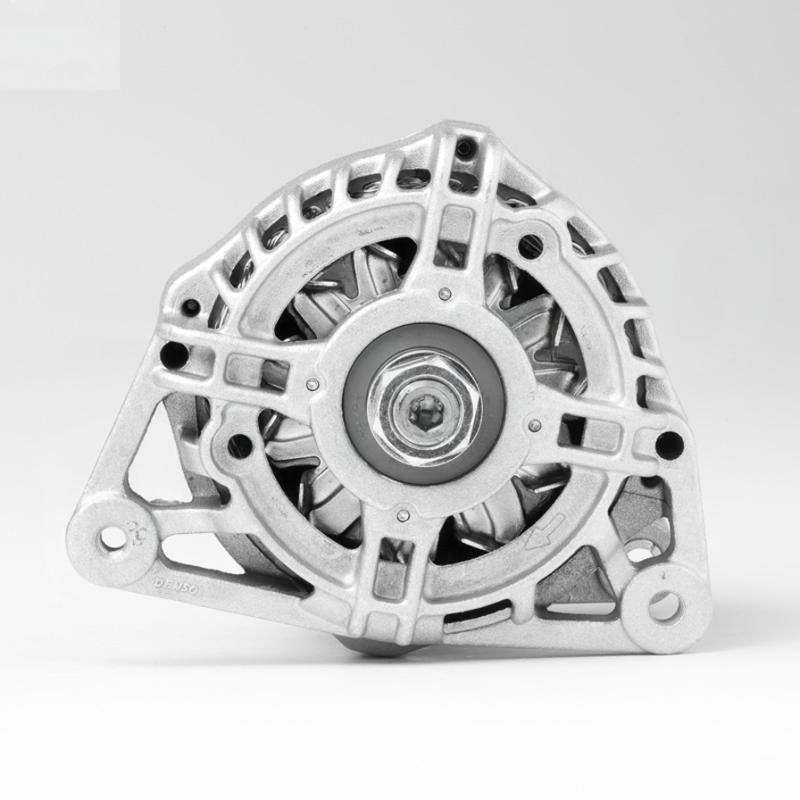

The Denso Alternator is a 14V, 85A unit with an 82mm flange size and Form A configuration. It connects via B+ (M6), D+ (M5), and W (M5) terminals, and is a direct fit replacement using original manufacturer specifications, suiting the JCB 500 series telehandlers powered by Perkins 1004 and 1104 engines.
Cross-referencing Denso and Perkins OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| JCB | 530-70 (Perkins 1004-40T), 530-70 (Perkins 1104T) |
| JCB | 535-60, 535-125, 535-140, 540 (Perkins 1104) |
| Perkins | 1004 AK/AM 1004.40T Agrar |
| Perkins | 1004 AK/AM 1004.40T Industrie |
Key Features
- 14V, 85A alternator
- Form A configuration
- 82mm flange size
- Connections: B+ (M6), D+ (M5), W (M5)
- Fits JCB 500 series telehandlers (530-70, 535-60, 535-125, 535-140, 540)
- Fits Perkins 1004 Agrar/Industrie engines
- Cross-references three OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN655 | Reference number |
| 102211-8180 | Denso |
| 102211-8181 | Denso |
| 2871A303 | Perkins |
| 2871A308 | Perkins |

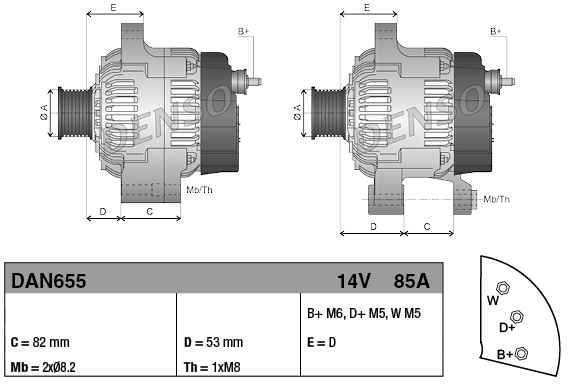

Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 85 A |
| Pulley spacing | 53 mm |
| Flange size | 82 mm |
| Form | A |
| Mounting hole | 8.2mm |
| Belt tension hole | M8 |
| Connections | B+ (M6), D+ (M5), W (M5) |
| Part number | 3780010093 |
| Weight | 5.18 kg |
| Condition | New |
