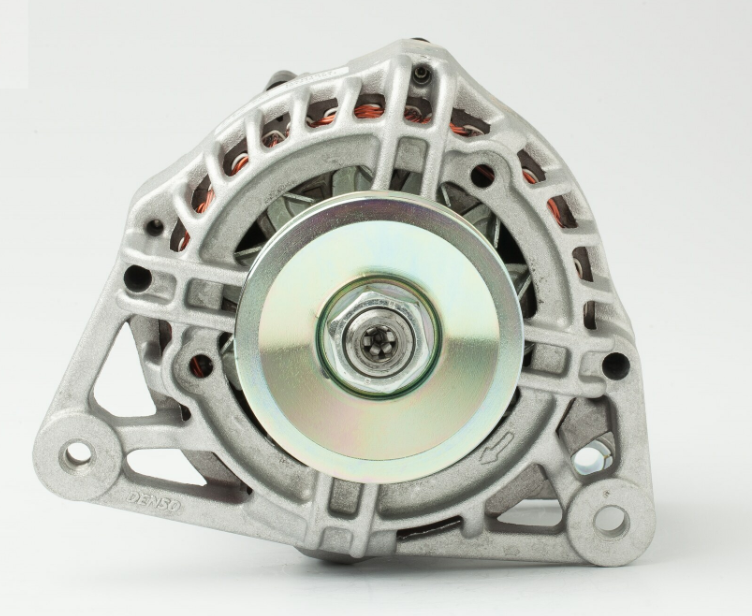

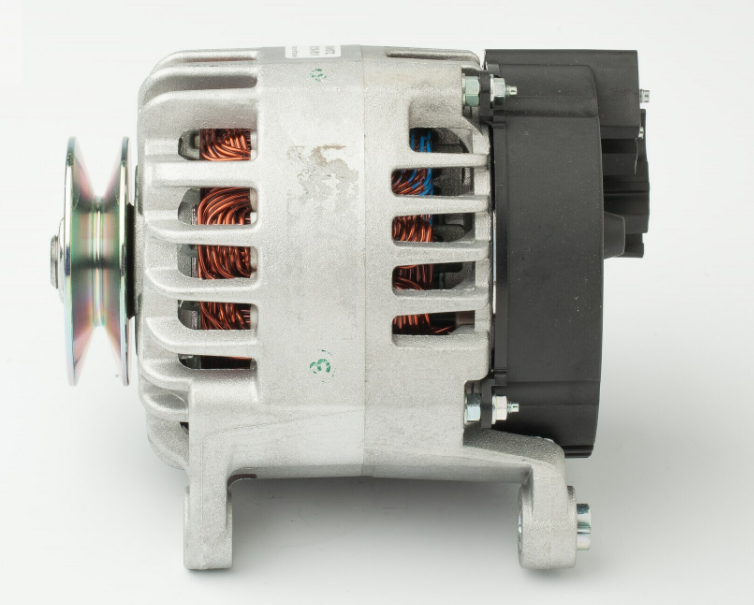

The Denso Alternator is a 14V, 65A unit supplied with clockwise rotation, featuring a 73mm pulley, 82mm flange size, and Form A configuration. It connects via B+ (M6), D+ (M5), and W (M5) terminals, and is a direct fit replacement using original manufacturer specifications, suiting the Perkins 400 series GK 403D-15, GL 403D-15T, and GN 404D-22 engines.
Cross-referencing Denso and Perkins OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| Perkins | GK 403D-15, GL 403D-15T, GN 404D-22 |
Key Features
- 14V, 65A alternator
- Clockwise rotation
- 73mm pulley diameter
- Form A configuration
- 82mm flange size
- Connections: B+ (M6), D+ (M5), W (M5)
- Fits Perkins 400 series engines
- Cross-references six OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN1072 | Reference number |
| 101210-1010 | Denso |
| 101210-1011 | Denso |
| 185046500 | Perkins |
| 185046501 | Perkins |
| U85046501 | Perkins |
| U85046501R | Perkins |

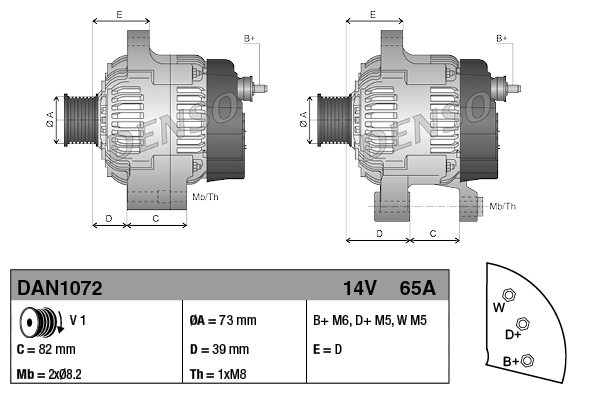

Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 65 A |
| Pulley diameter | 73 mm |
| Pulley spacing | 38.6 mm |
| Flange size | 82 mm |
| Form | A |
| Mounting hole | 8.2mm |
| Belt tension hole | M8 |
| Connections | B+ (M6), D+ (M5), W (M5) |
| Direction of rotation | Clockwise |
| Part number | 3780010065 |
| Weight | 5.50 kg |
| Condition | New |
