Denso Alternator 14V 60A - Toyota

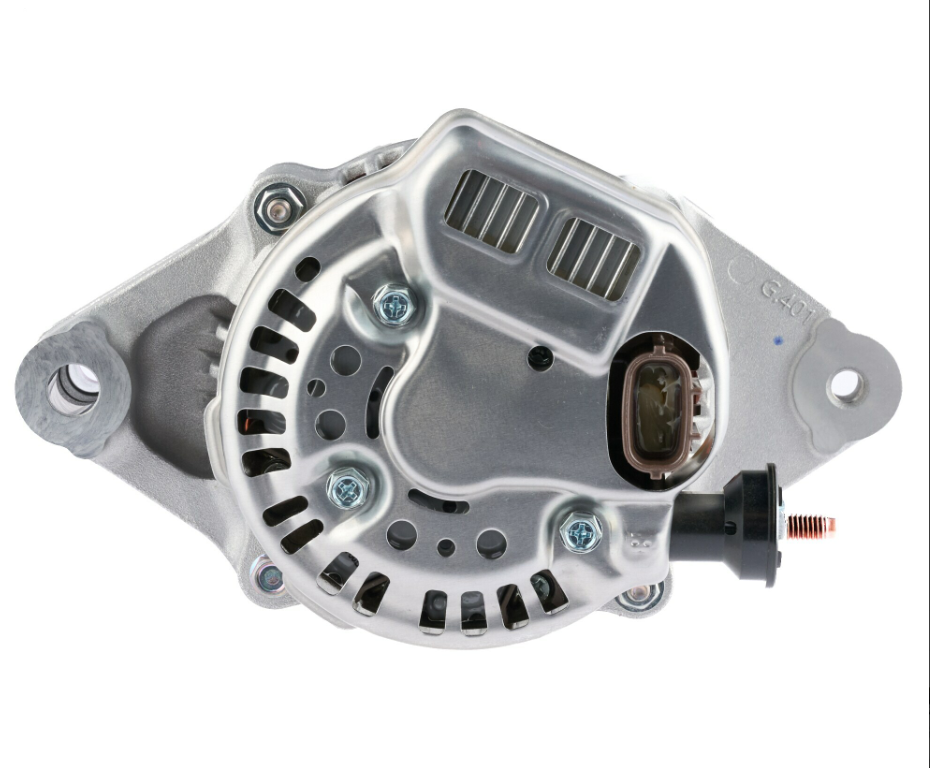

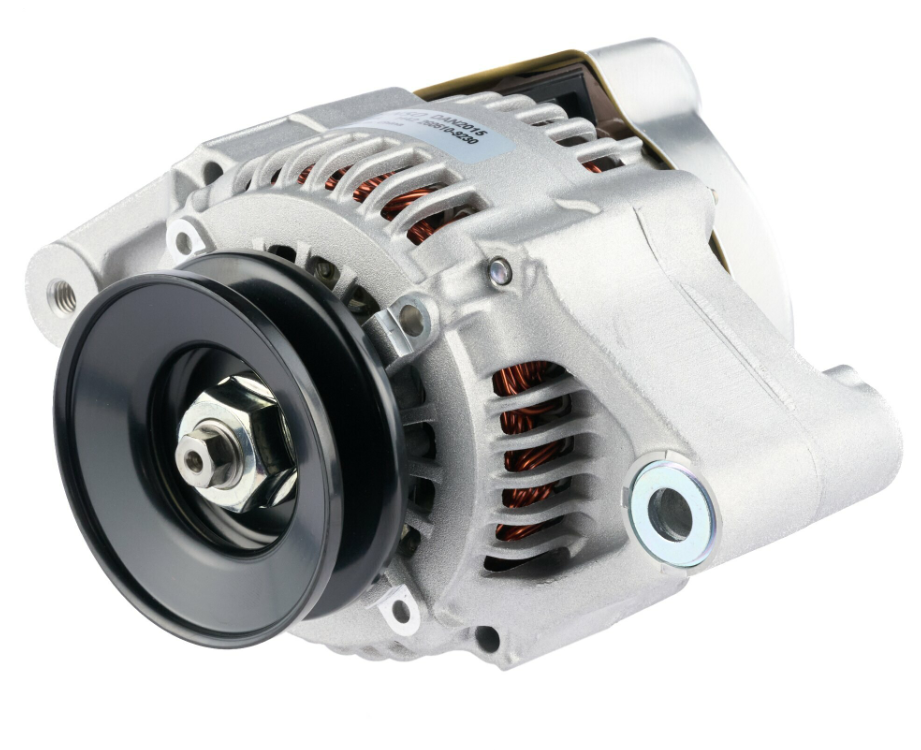

The Denso Alternator is a 14V, 60A unit supplied with clockwise rotation, featuring a 74mm pulley, 58mm flange size, and Form B configuration. It connects via B+ (M6) and PL05 terminals, and is a direct fit replacement using original manufacturer specifications.
Cross-referencing Denso and Toyota OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| Toyota | Not specified |
Key Features
- 14V, 60A alternator
- Clockwise rotation
- 74mm pulley diameter
- Form B configuration
- 58mm flange size
- Connections: B+ (M6), PL05
- Cross-references one OE part number
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN2015 | Reference number |
| 27060UB050 | Toyota |

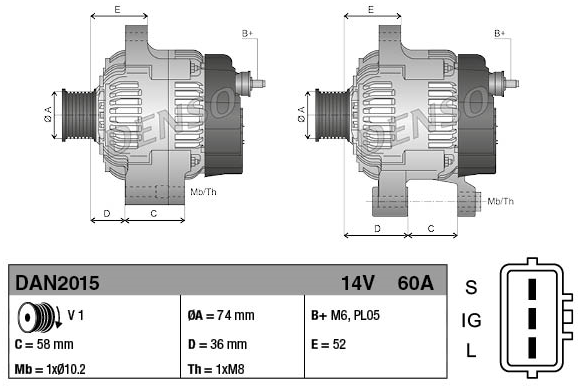

Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 60 A |
| Pulley diameter | 74 mm |
| Pulley spacing | 36 mm |
| Flange size | 58 mm |
| Form | B |
| Mounting hole | 10.2mm |
| Connections | B+ (M6), PL05 |
| Direction of rotation | Clockwise |
| Part number | 3780010077 |
| Weight | 3.91 kg |
| Condition | New |
