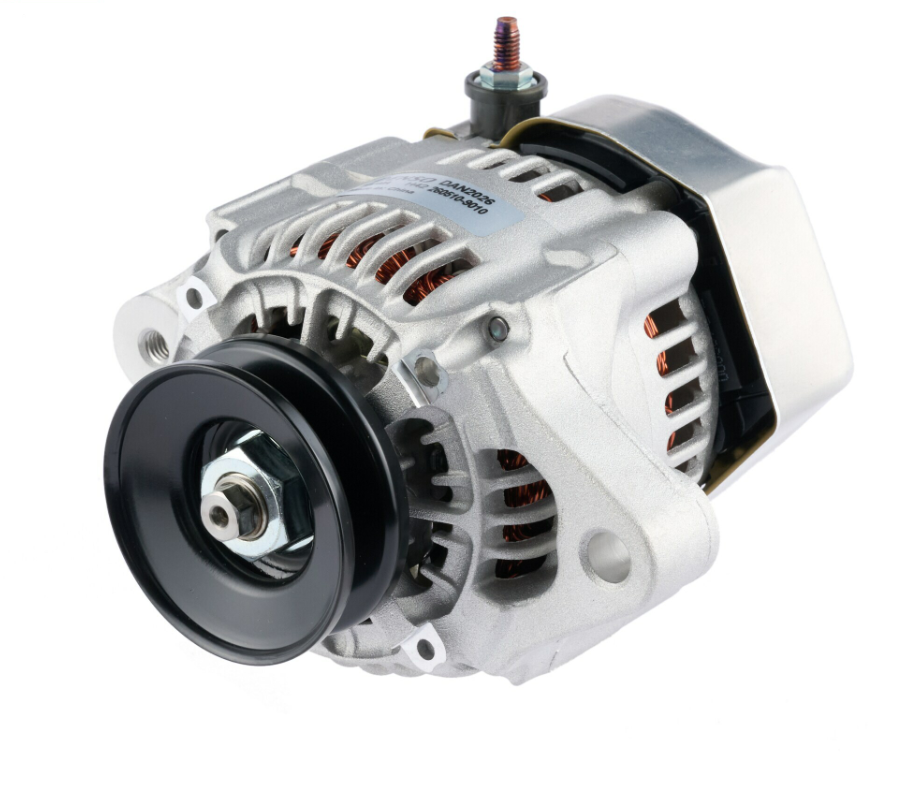

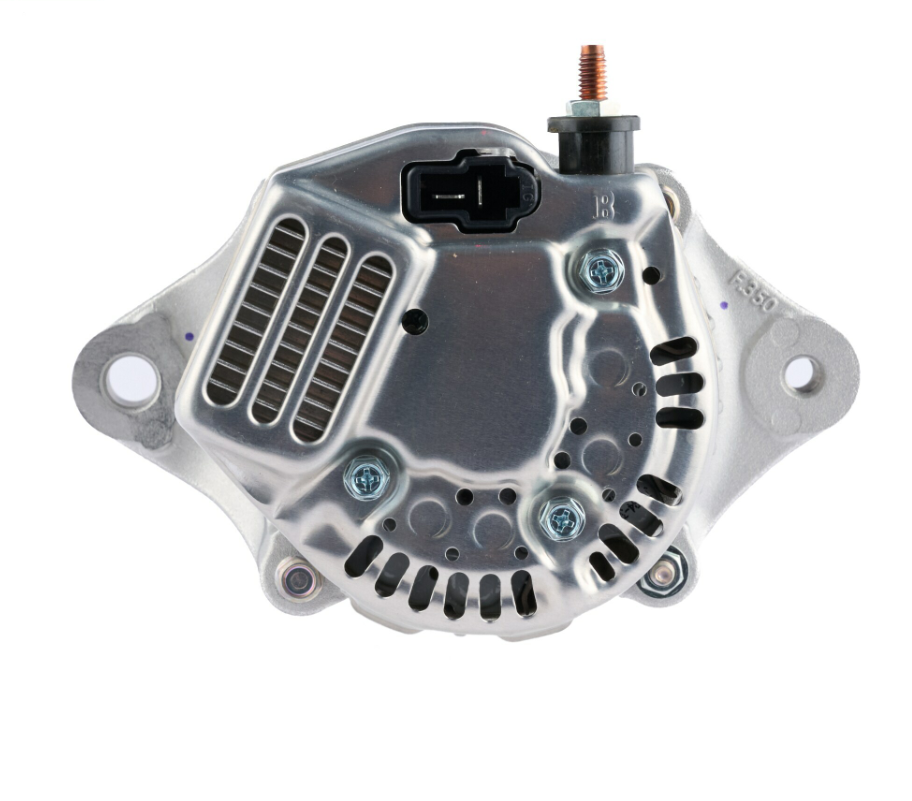

The Denso Alternator is a 14V, 40A unit supplied with clockwise rotation, featuring a 63mm pulley, 21mm flange size, and Form B configuration. It connects via B+ (M6) and PL02 terminals, and is a direct fit replacement using original manufacturer specifications, suiting the Kubota M series tractors and equipment powered by the Perkins 400 series engine.
Cross-referencing Denso, Kubota, and Perkins OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| Kubota | M 6030, M 6030 DT, M 7030, M 7030 DT, M 7030 SU, M 7580 DT, M 8030, M 8030 DT, M 8580 DT |
| Perkins | GH 403D-07, GJ 403D-11, GM 404D-15 |
Key Features
- 14V, 40A alternator
- Clockwise rotation
- 63mm pulley diameter
- Form B configuration
- 21mm flange size
- Connections: B+ (M6), PL02
- Fits an extensive range of Kubota M series tractors
- Fits equipment using the Perkins 400 series engine
- Cross-references two OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN2026 | Reference number |
| 16541-64010 | Kubota |
| 185046220 | Perkins |

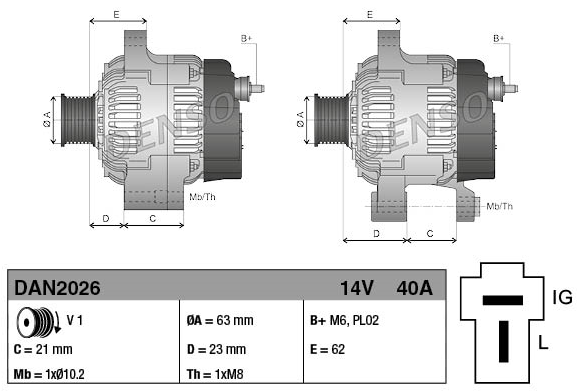

Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 40 A |
| Pulley diameter | 63 mm |
| Pulley spacing | 23 mm |
| Flange size | 21 mm |
| Form | B |
| Mounting hole | 10.2mm |
| Connections | B+ (M6), PL02 |
| Direction of rotation | Clockwise |
| Part number | 3780010086 |
| Weight | 3.22 kg |
| Condition | New |
