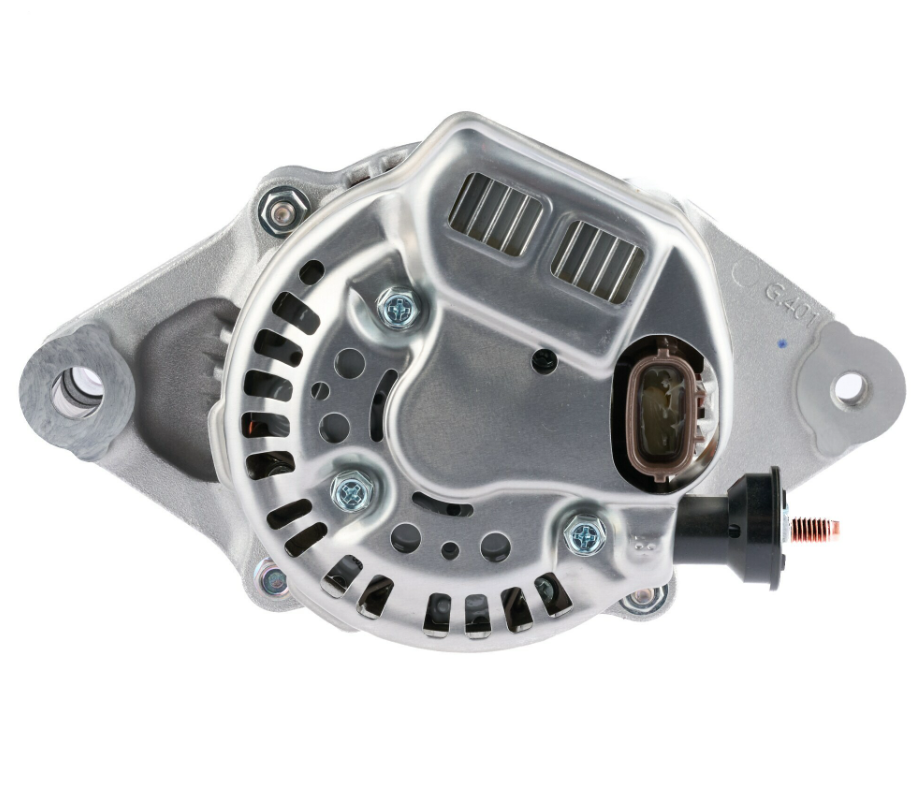

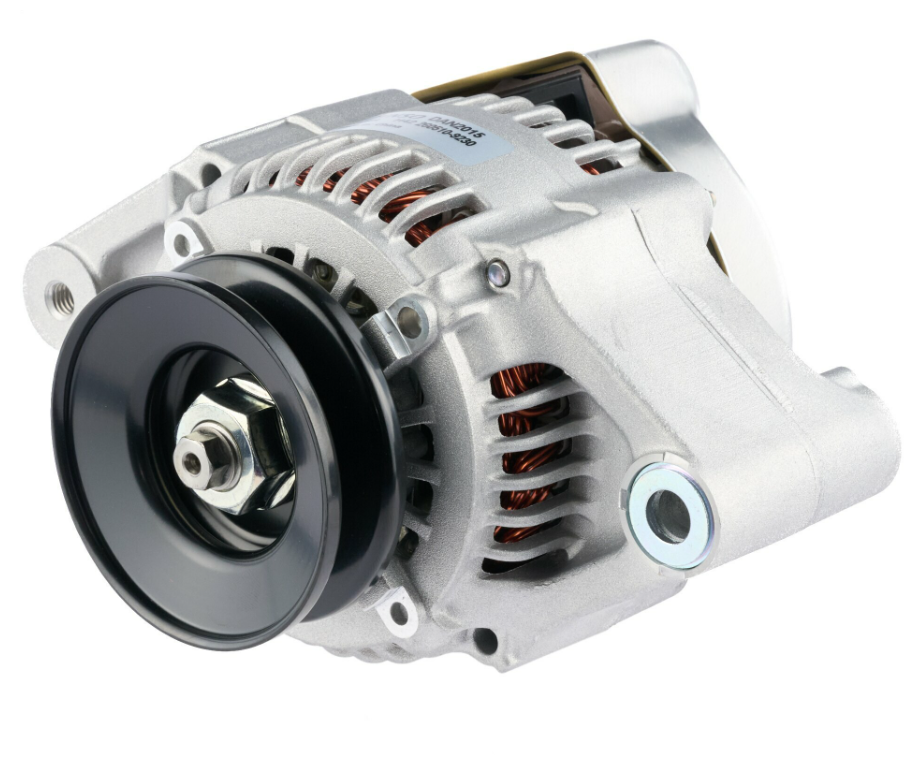

Denso Alternator 14V 40A - Kubota KX, BX, F, U Series
The Denso Alternator is a 14V, 40A unit supplied with clockwise rotation, featuring a 63mm pulley, 24mm flange size, and Form B configuration. It connects via B+ (M6) and PL02 terminals, and is a direct fit replacement using original manufacturer specifications, suiting an extensive range of Kubota mini excavators, mowers, and compact tractors.
Cross-referencing Denso and Kubota OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| Kubota | KX36-2, KX36-2 Alpha, KX41 H, KX41-2 Alpha, KX41-3 S, KX71 H, KX91-2 |
| Kubota | BX 2200 D |
| Kubota | F 2560, F 3060, F 3680 |
| Kubota | U17-3, U17-3 Alpha |
Key Features
- 14V, 40A alternator
- Clockwise rotation
- 63mm pulley diameter
- Form B configuration
- 24mm flange size
- Connections: B+ (M6), PL02
- Fits an extensive range of Kubota KX, BX, F, and U series equipment
- Cross-references two OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN2019 | Reference number |
| 16241-64012 | Kubota |
| 16241-64013 | Kubota |
Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 40 A |
| Pulley diameter | 63 mm |
| Pulley spacing | 20 mm |
| Flange size | 24 mm |
| Form | B |
| Mounting hole | 10.2mm |
| Connections | B+ (M6), PL02 |
| Direction of rotation | Clockwise |
| Part number | 3780010081 |
| Weight | 3.23 kg |
| Condition | New |
