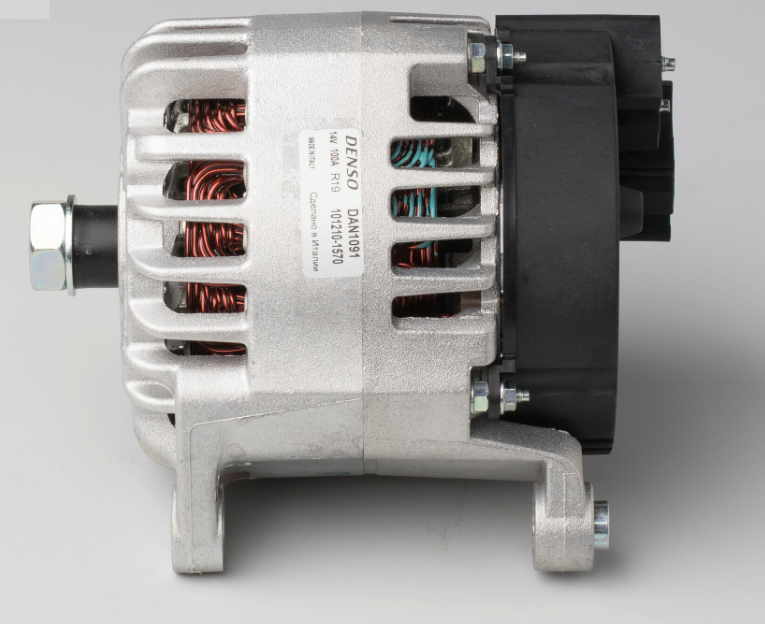

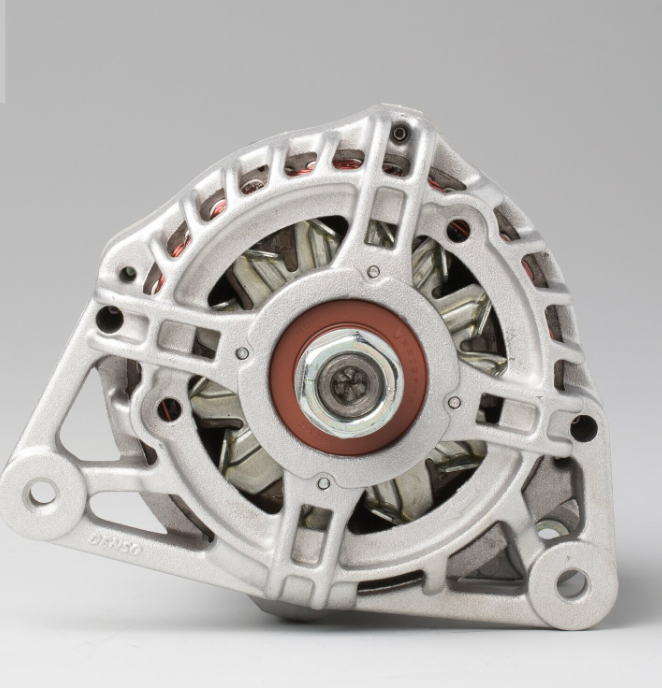

Denso Alternator 14V 100A - Perkins 1004 Agrar
The Denso Alternator is a 14V, 100A unit supplied with clockwise rotation, featuring an 82mm flange size and Form A configuration. It connects via B+ (M6), D+ (M5), and W (M5) terminals, and is a direct fit replacement using original manufacturer specifications, suiting the Perkins 1004 AK 1004.40T engine in both agricultural and industrial applications.
Cross-referencing Denso and Perkins OE part numbers, this alternator is engineered to original fitment standards for reliable charging performance.
Fitment
| Brand | Series / Type |
|---|---|
| Perkins | 1004 Agrar, AK 1004.40T Agrar |
| Perkins | 1004 Industrie, AK 1004.40T Industrie |
Key Features
- 14V, 100A alternator
- Clockwise rotation
- Form A configuration
- 82mm flange size

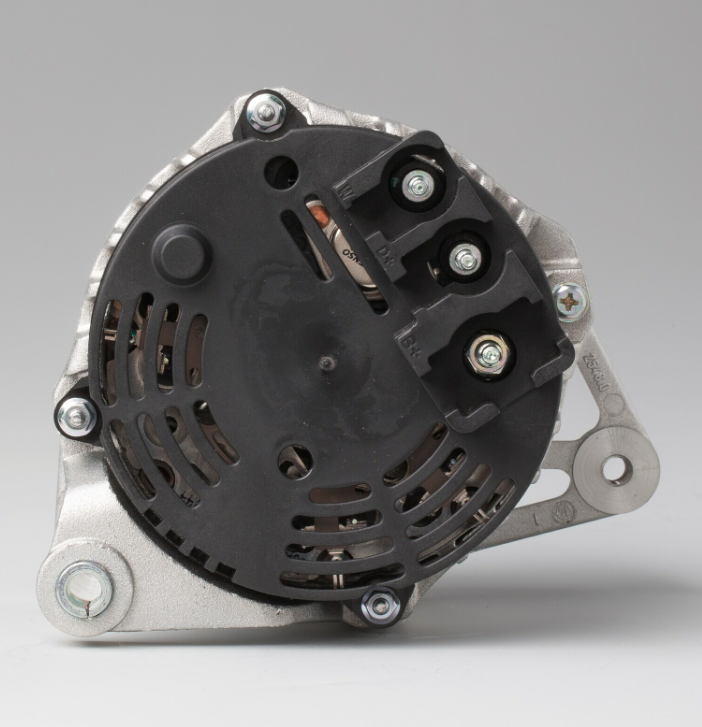

- Connections: B+ (M6), D+ (M5), W (M5)
- Fits Perkins 1004 AK 1004.40T engine (agricultural and industrial)
- Cross-references six OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DAN1091 | Reference number |
| 101210-1570 | Denso |
| 102211-8120 | Denso |
| 102211-8121 | Denso |
| 2871A304 | Perkins |
| 2871A309 | Perkins |
| 3832556 | Perkins |
| T412401 | Perkins |

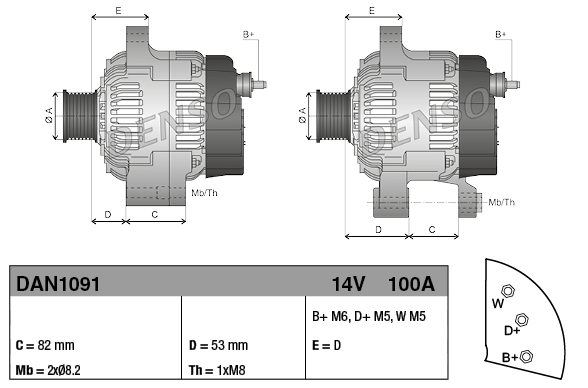

Specifications
| Specification | Detail |
|---|---|
| Type | Alternator |
| Nominal voltage | 14 V |
| Charging current | 100 A |
| Flange size | 82 mm |
| Form | A |
| Mounting hole | 8.2mm |
| Belt tension hole | M8 |
| Connections | B+ (M6), D+ (M5), W (M5) |
| Direction of rotation | Clockwise |
| Part number | 3780010066 |
| Weight | 5.21 kg |
| Condition | New |
