Chapman TF350 Trailed Stock Feeder | 320L | Electric Drive | Digita...

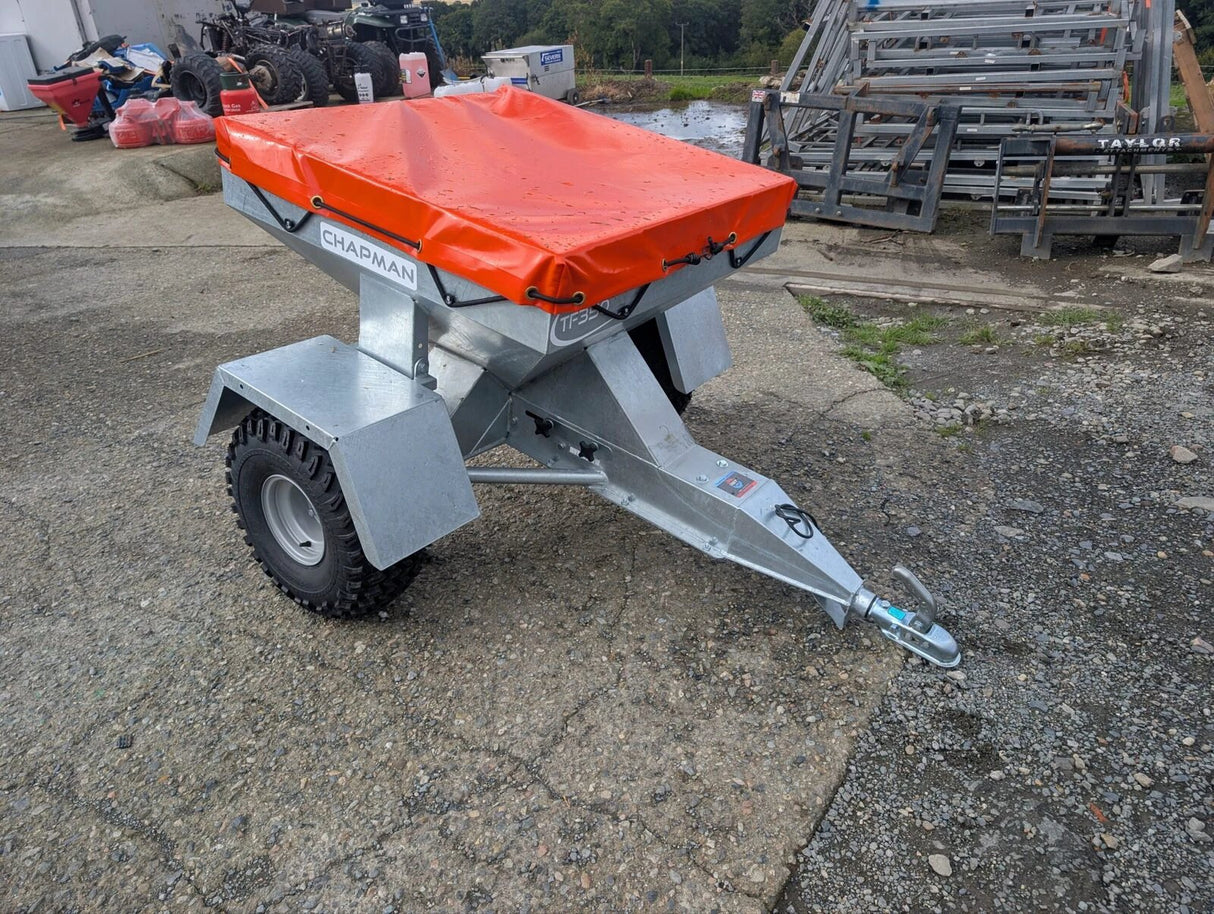

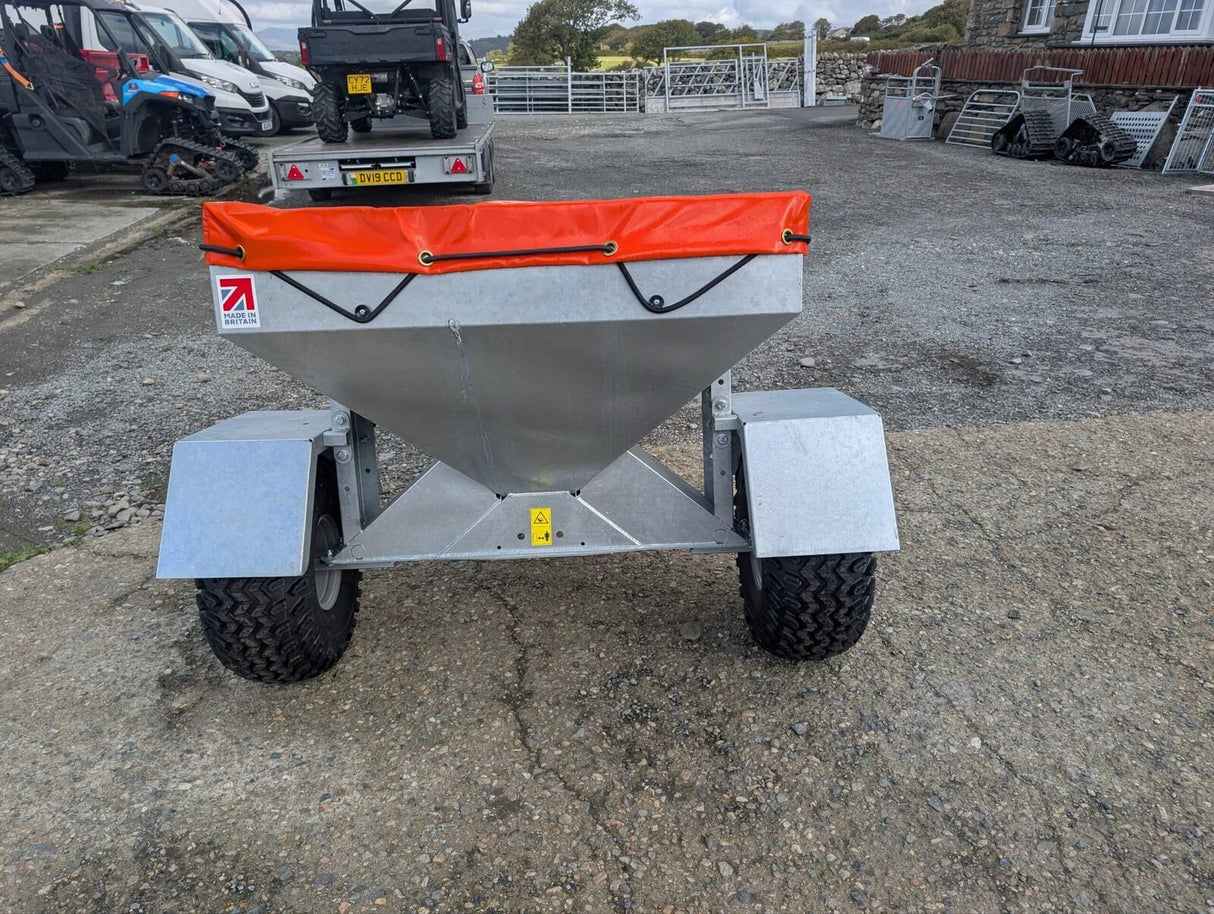

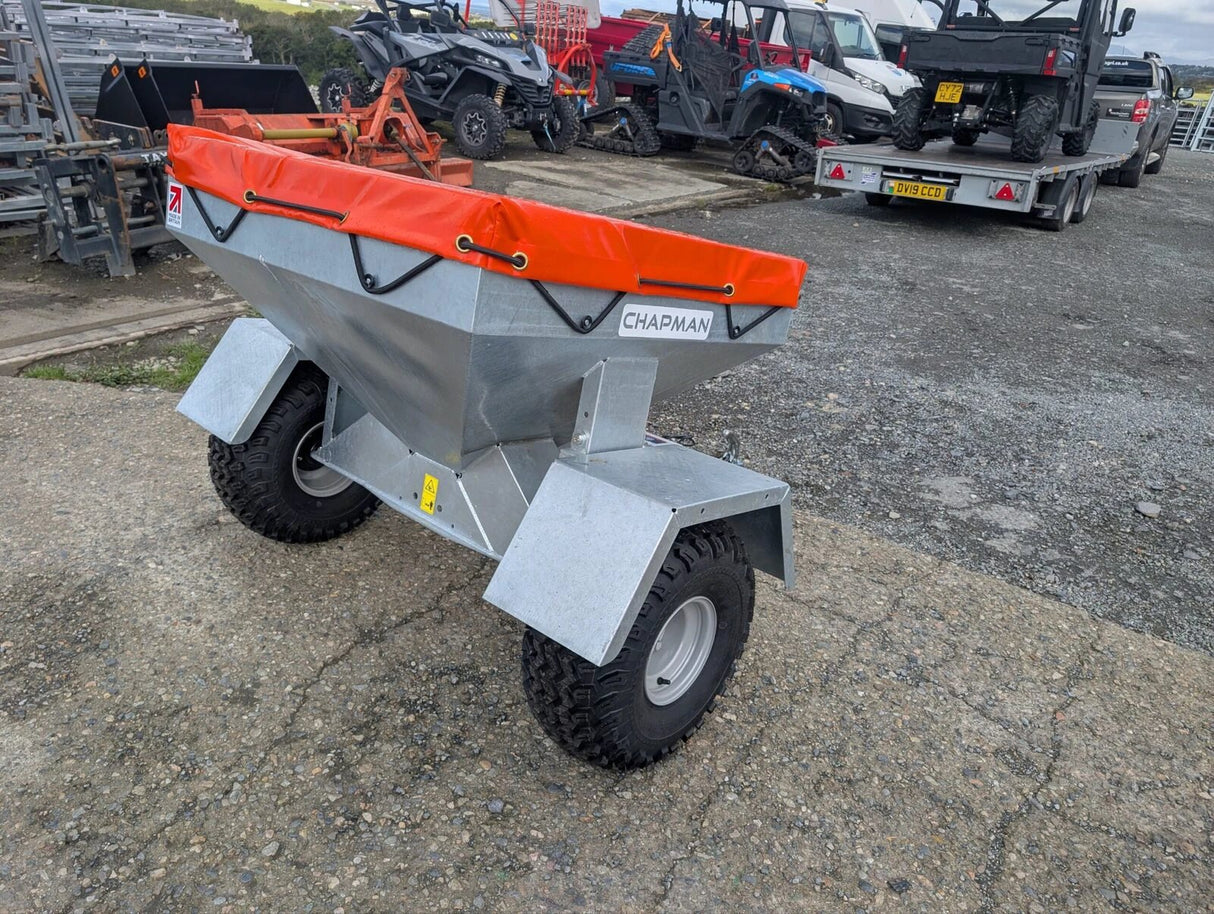

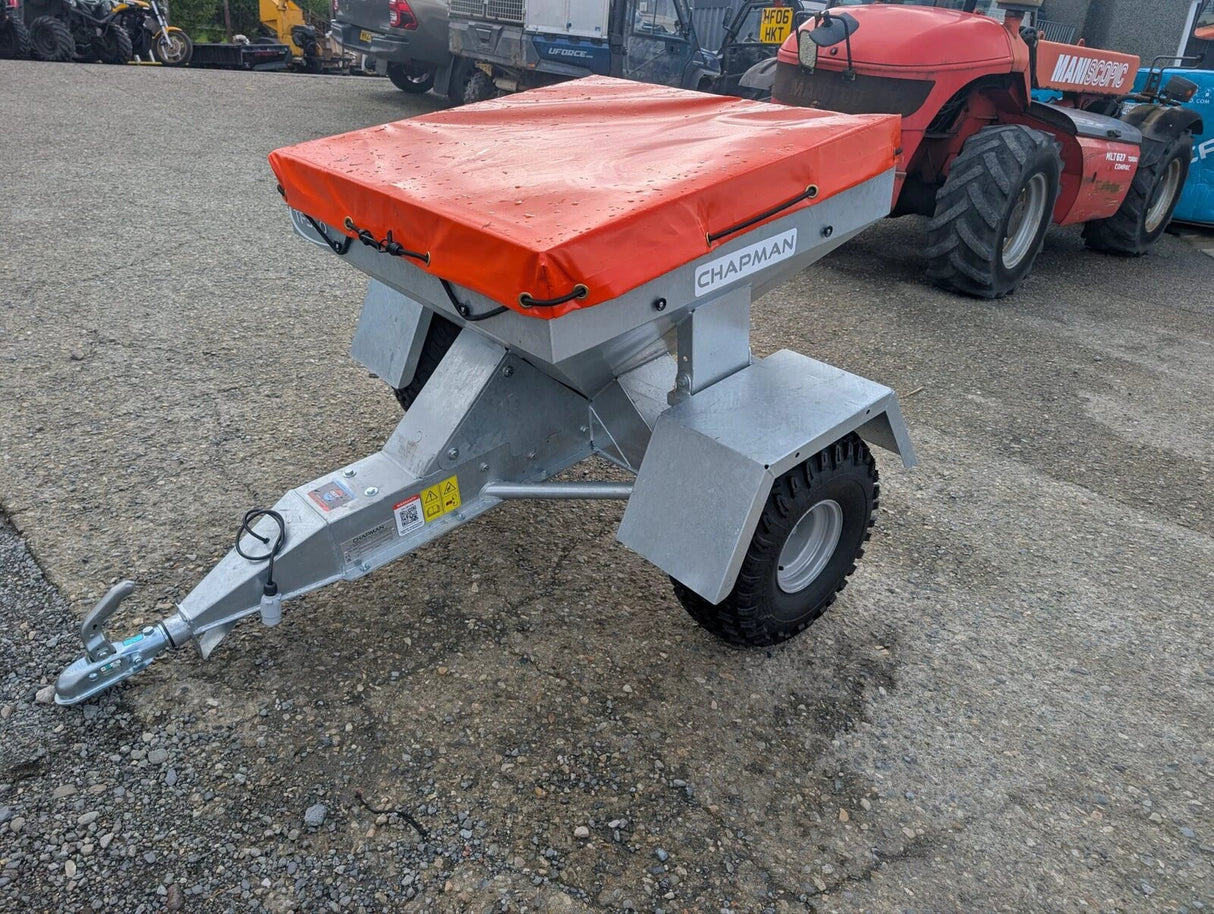

The Chapman TF350 is a trailed spaced-drop stock feeder for ATVs, UTVs and quad bikes, designed for the distribution of feed to sheep and cattle. Fully galvanised all-steel construction with a minimum 300mm ground clearance and a steel belly pan allow the TF350 to travel wherever the towing vehicle can go — addressing the low clearance limitation common to conventional drum-operated feeders.
The electronic drive system has few moving parts and operates only when in use, reducing wear. All electronic components are IP67 rated. The high-visibility backlit digital counter is operable in count-up or countdown mode, allowing a precise quantity of feed to be deposited on each pass. Drop size is adjustable between 0.25kg and 2kg per drop depending on feed type, with 25 drops per minute at operating speed. Drop spacing is controlled by the forward speed of the towing vehicle.
Standard capacity is 320 litres (approximately 300kg of feed). Extension sides are available as a bolt-on option to increase capacity to 600 litres (approximately 500kg). A range of further options is available including oversize balloon traction tyres for improved grip on slopes, a nudge bar for sheep feeding, twin beam axles for smoother towing over rough ground and a road legal model with suspension axles and E-marked tyres for use on public highways.
Specifications
| Specification | Detail |
|---|---|
| Capacity (Standard) | 320 Litres (approx. 300kg feed) |
| Capacity (With Extension Sides) | 600 Litres (approx. 500kg feed) |
| Weight (Unladen) | 130kg |
| Ground Clearance (Standard) | 300mm |
| Ground Clearance (Oversize Tyres) | 350mm |
| Drops per Minute | 25 |
| Drop Size | 0.25–2kg (feed type dependent) |
| Supply Voltage | 12V DC Nominal, 16V Maximum |
| Operating Temperature | -10°C to +40°C |
| Polarity Protection | Yes |
| Overload Thermal Reset | 30 Seconds |
| Electronics Rating | IP67 |
| Standard Tyre Size | 22 x 11 x 8in |
| Optional Tyre Size | 25 x 13 x 9in Balloon Traction |
| Construction | Fully Galvanised Steel with Steel Belly Pan |
| Compatibility | ATV / UTV / Quad Bike |
Available Options
| Option | Detail |
|---|---|
| Extension Sides | Increases capacity to 600L — bolt-on, fits existing tonneau cover |
| Oversize Tyres | 25 x 13 x 9in Balloon Traction — improved grip and clearance |
| Nudge Bar | Livestock fender bars — prevents sheep becoming jammed between vehicle and feeder |
| Twin Axle | Twin beam axles with mudguards — smoother towing and reduced ground pressure |
| Additional Control Box | Allows use behind a second vehicle without swapping control electrics |
| Road Legal Model | Suspension axles and E-marked road tyres for use on public highways |
