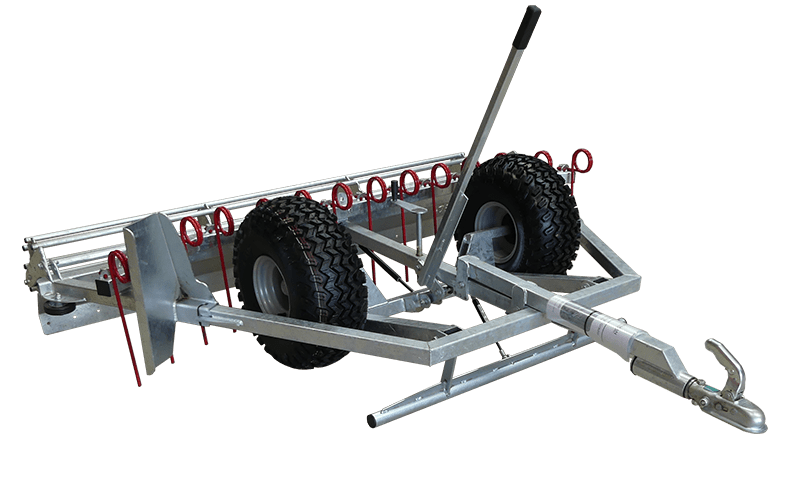

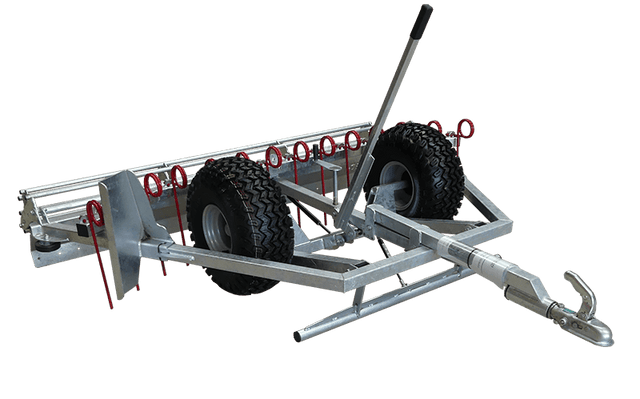

The Chapman MG250 is a 2.3m arena leveller and grader designed for the maintenance of equestrian riding surfaces including sand, rubber crumb, wax-stabilised and fibre surfaces such as CombiRide, Turfloat and CLOPF. Available as a standard towed unit with 50mm ball or pin hitch for use behind ATVs, UTVs and 4x4 vehicles, or as a 3-point linkage mounted version for compact and mid-sized tractors where more frequent or larger-scale maintenance is required.

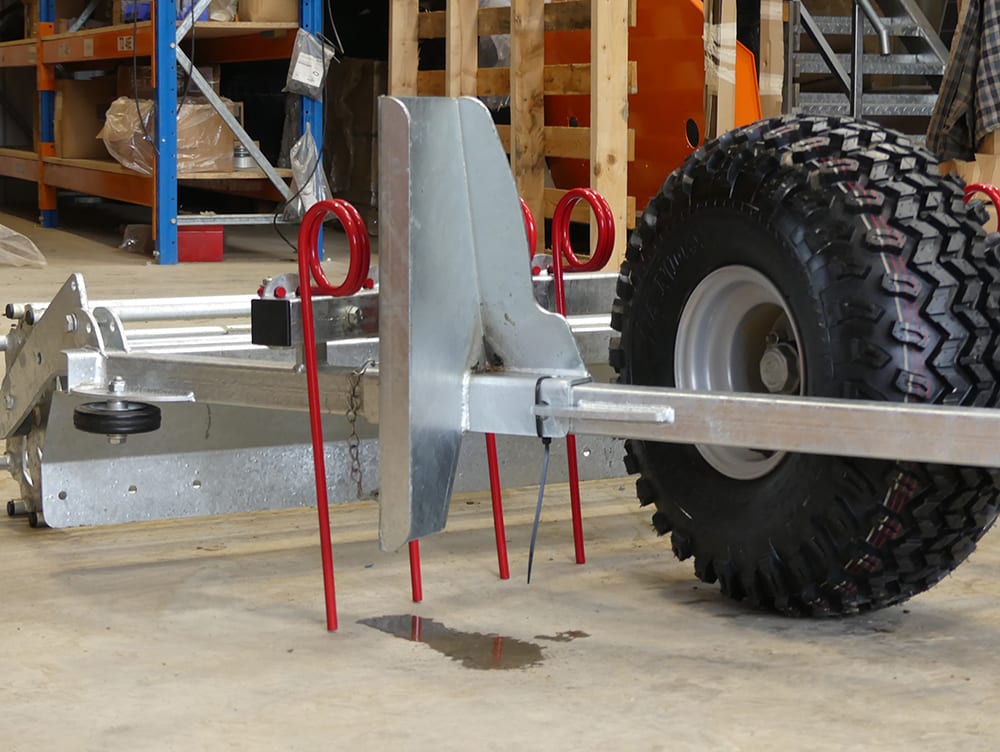

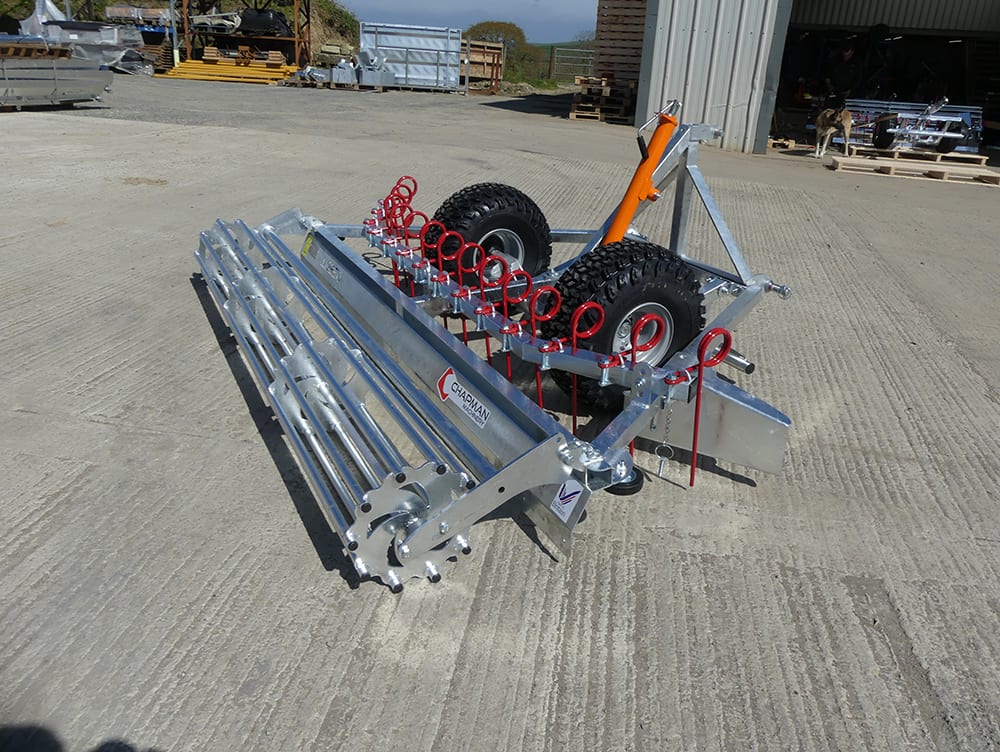

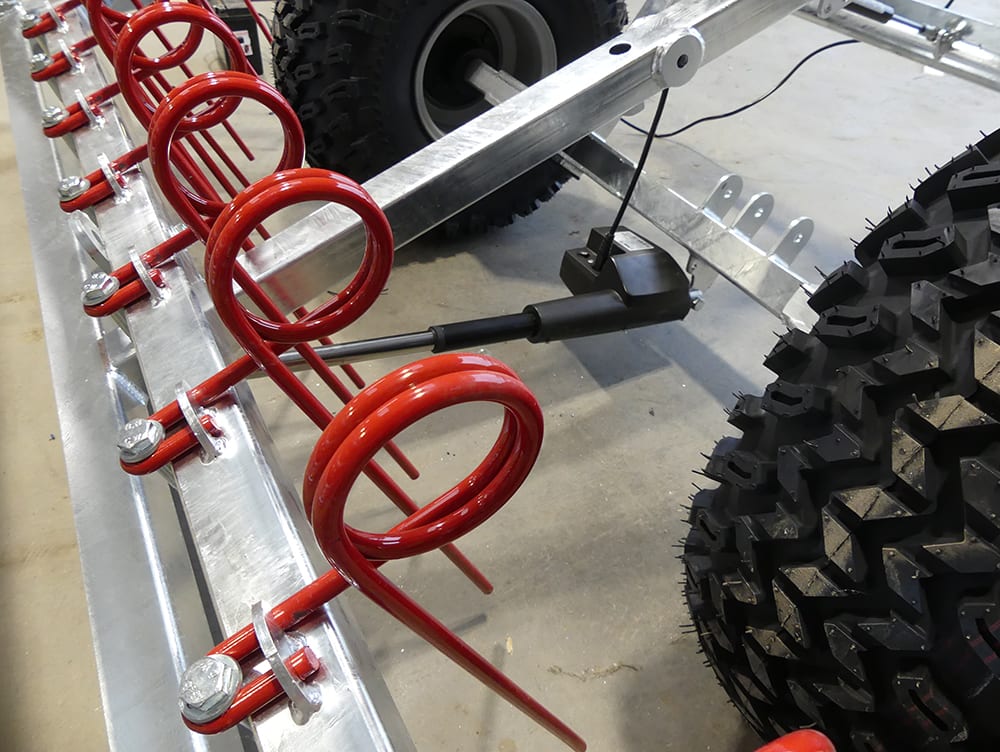

A pre-levelling bar allows the large diameter wheels to roll smoothly across the surface. Fourteen 13mm diameter spring steel tines with adjustable working depth agitate and loosen compacted material. A feathering levelling blade grades out high and low spots, with a reversible perimeter blade working the surface edges. A rear consolidation roller consolidates and orientates fibres across the surface for a one-pass finish. The delta-shaped frame deflects fence posts for safe operation close to arena boundaries.
Construction is fully hot-dip galvanised heavy-duty steel throughout for long-term resistance to weathering.
Specifications
| Specification | Detail |
|---|---|
| Grading Width | 2.3m |
| Number of Tines | 14 |
| Tine Size | 13mm Diameter Spring Steel |
| Tine Depth | Adjustable |
| Levelling Blade | Feathering, Reversible Perimeter Blade |
| Rear Roller | Consolidation Roller |
| Pre-Levelling Bar | Included |
| Frame | Delta Shape, Fully Hot-Dip Galvanised |
| Tyre Size | 22 x 11 x 8in |
| Weight | 175kg |
| Hitch (Towed) | 50mm Ball or Pin |
| Attachment (Mounted) | 3-Point Linkage |
Available Variants
| Variant | Detail |
|---|---|

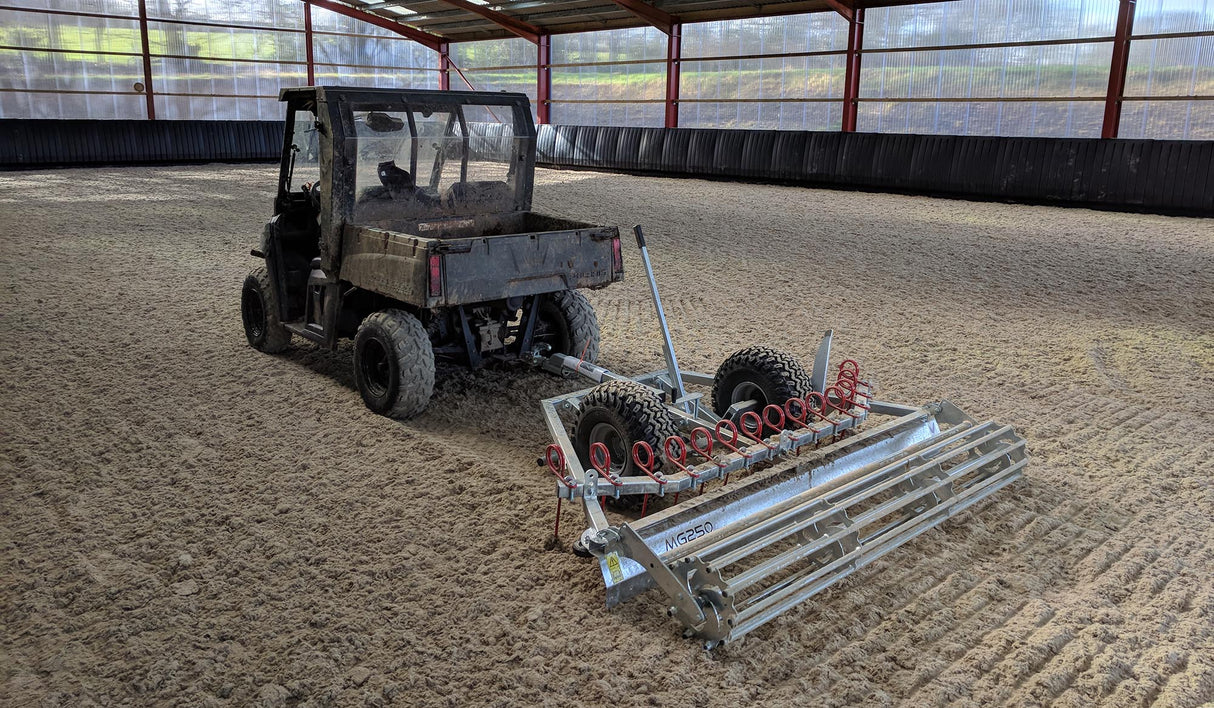

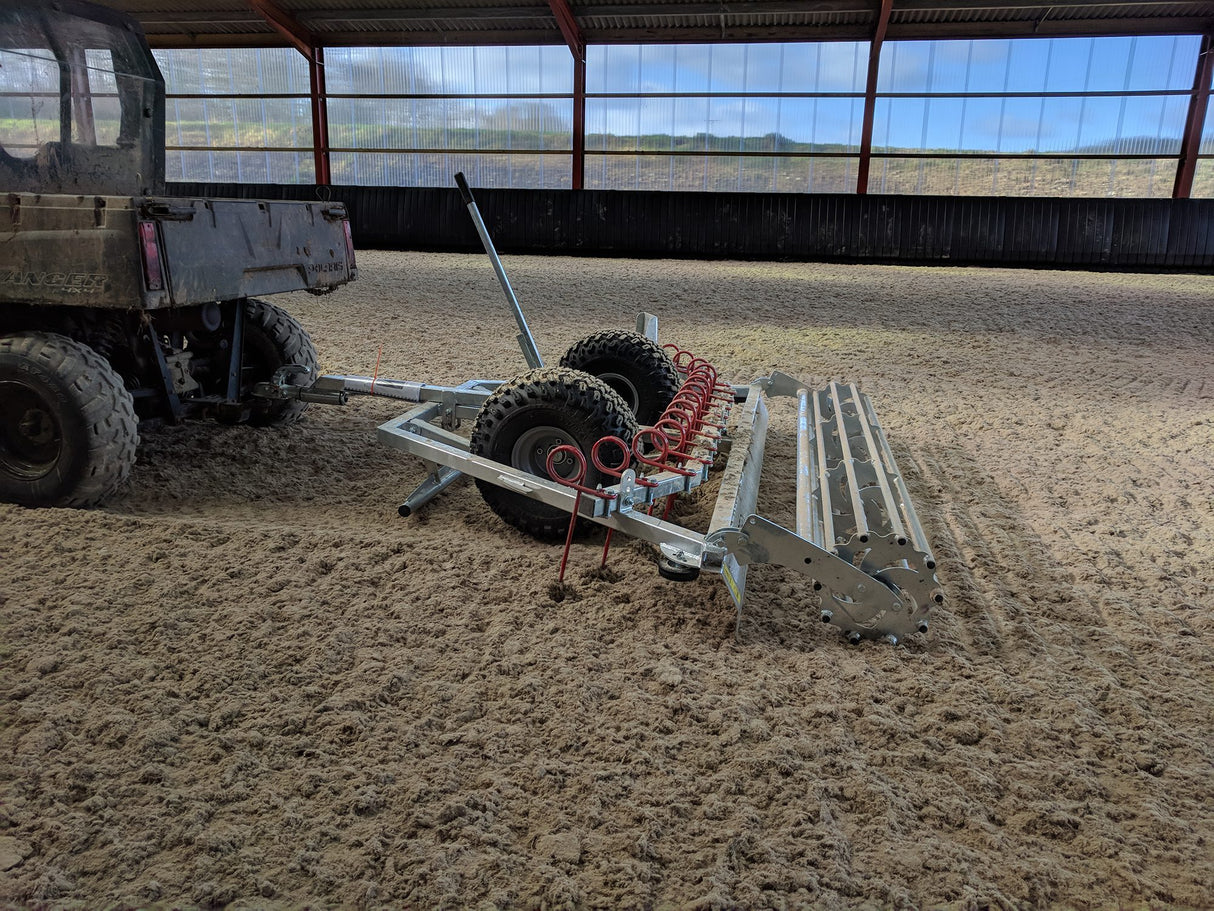

| Standard Towed | 50mm Ball or Pin Hitch — ATV / UTV / 4x4 |

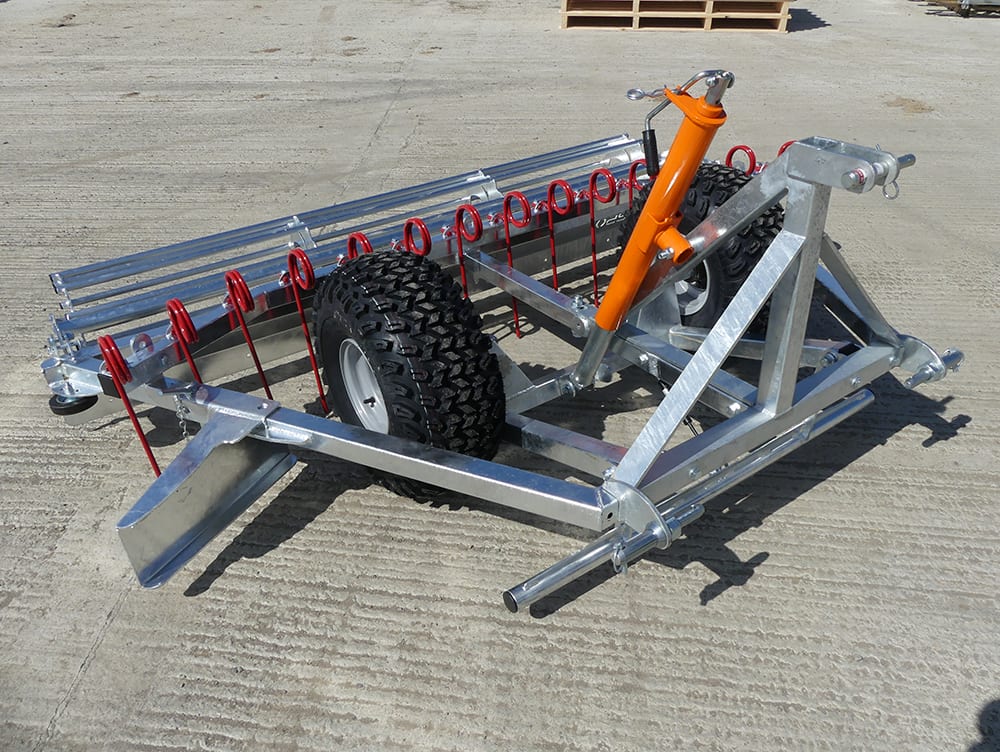

| 3-Point Linkage Mounted | Tractor Mounted — CAT 1 and CAT 2 |
Suitable Surfaces
| Surface Type | Detail |
|---|---|
| Sand | General arena and paddock sand surfaces |
| Rubber Crumb | Mixed rubber and sand surfaces |
| Wax Stabilised | CombiRide, Turfloat and similar |
| Fibre Stabilised | CLOPF and similar orientated fibre surfaces |
