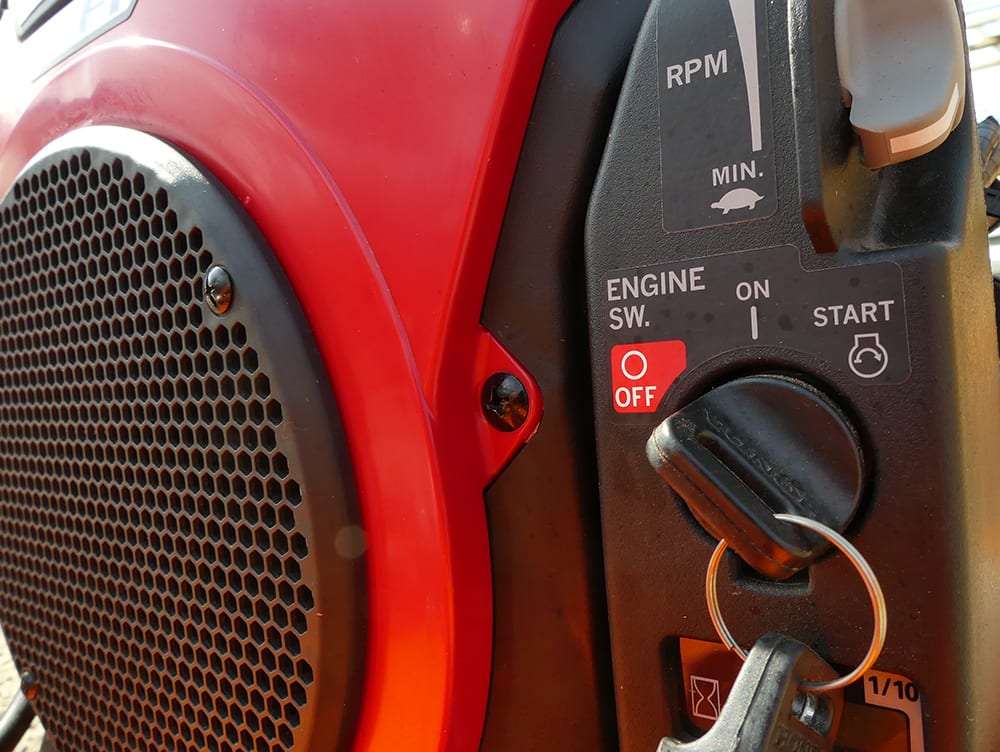

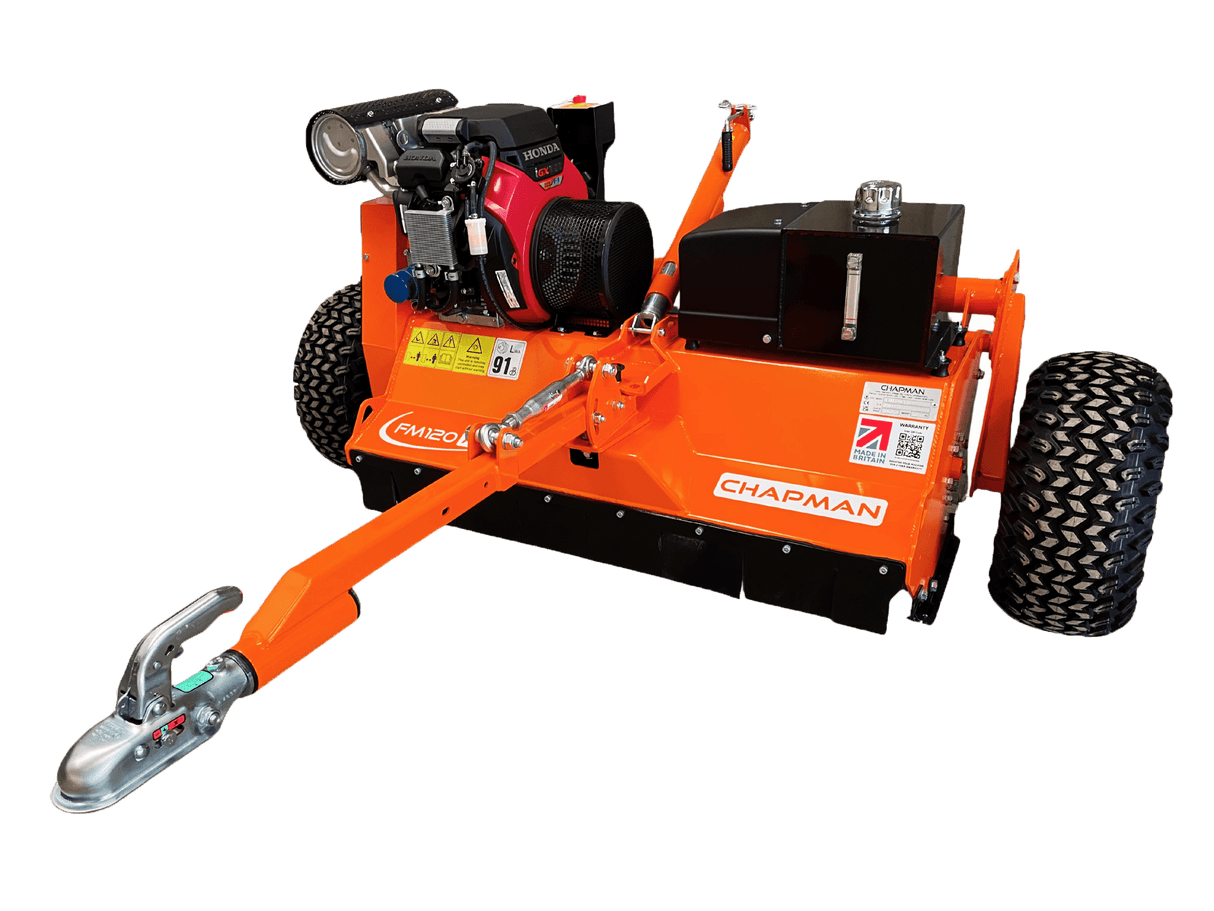

The Chapman FM Pro is a high-performance ATV flail mower available in 1.2m (FM120) and 1.5m (FM150) cutting widths, designed for the full range of topping and mowing tasks from dense rushes and bracken through to fine parkland topping. Powered by a Honda iGX800 25hp EFI V-twin engine with electric start, oil cooling and a 10 litre fuel tank for extended run times.

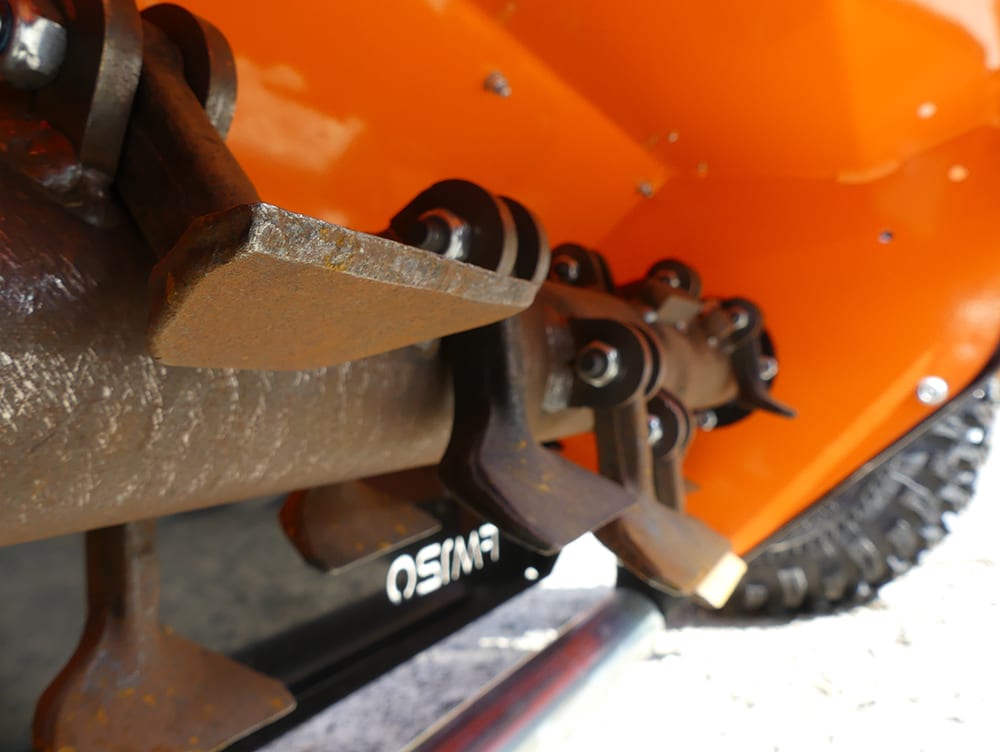

The FM Pro features a 360mm rotor dynamically balanced to G6.3 grade, running at 2,400rpm with forged hammer flails fitted as standard. Flails are designed to pivot rearwards on hidden obstacle impact, protecting the rotor whilst maintaining a consistent cut. The cutting deck is manufactured from Strenx high-tensile steel with 5mm cover and 8mm side plates, providing significantly increased structural rigidity whilst reducing overall machine weight. A double flyweight clutch ensures smooth, reliable drive engagement. Belt drive is via two BX41 cogged belts with an automatic tensioning system.
The FM Pro is the first mower in its class to feature SmartCut wireless controls, allowing engine start and blade engagement from the towing vehicle without trailing cables. The SmartCut system provides real-time monitoring of engine temperature, fuel consumption and service intervals.

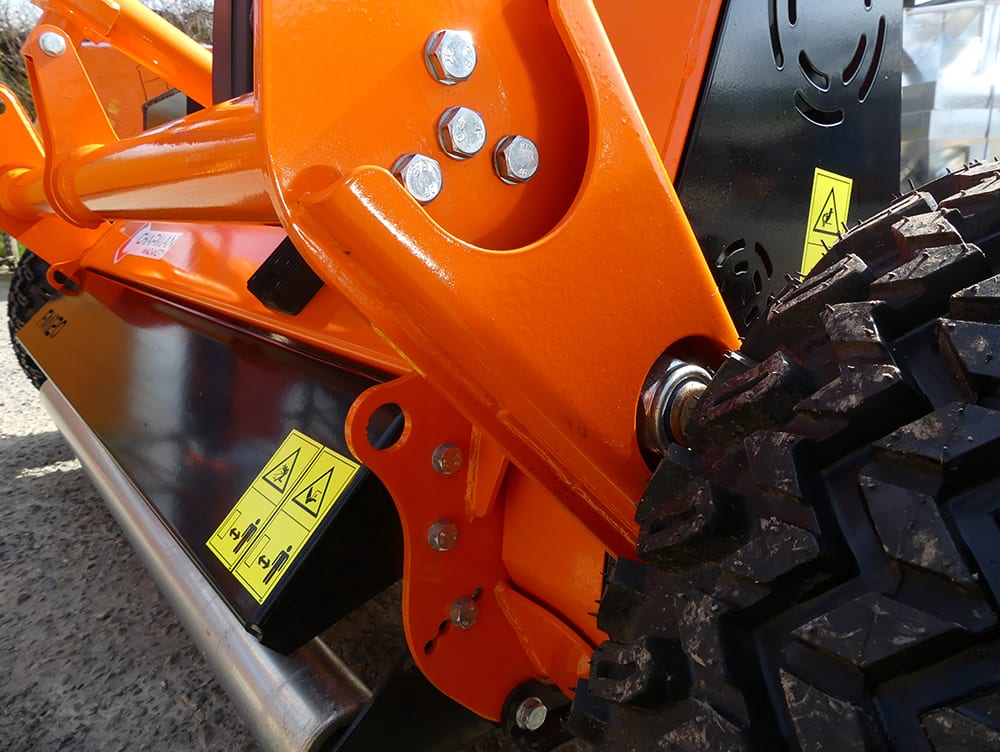

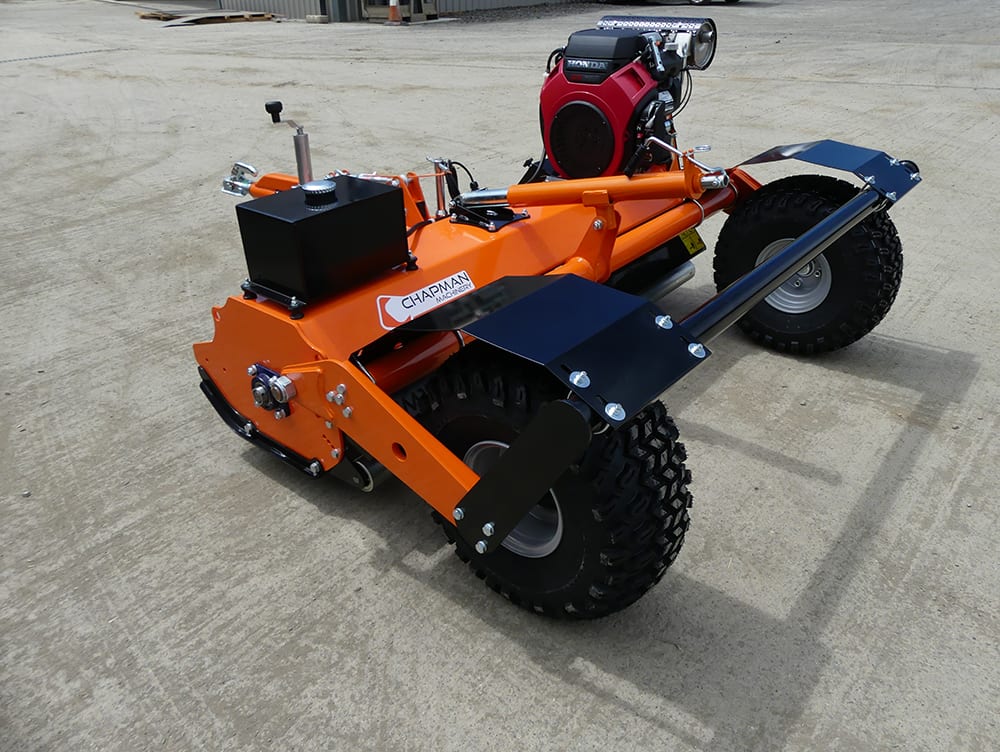

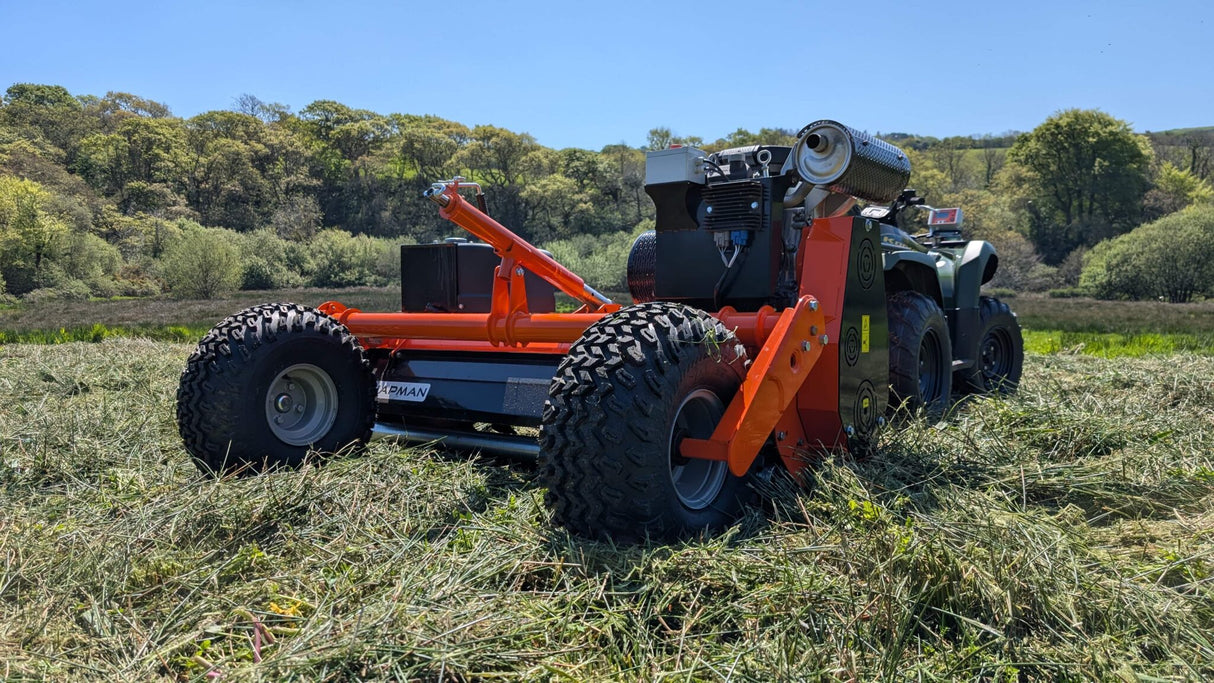

Large 22x11x8in flotation tyres can be positioned alongside the cutting deck for towing or moved to the trailing position for close-edge work near fences, trees and field boundaries. The redesigned axle system allows operators to switch between positions in under two minutes.
Specifications
| Specification | Detail |
|---|---|

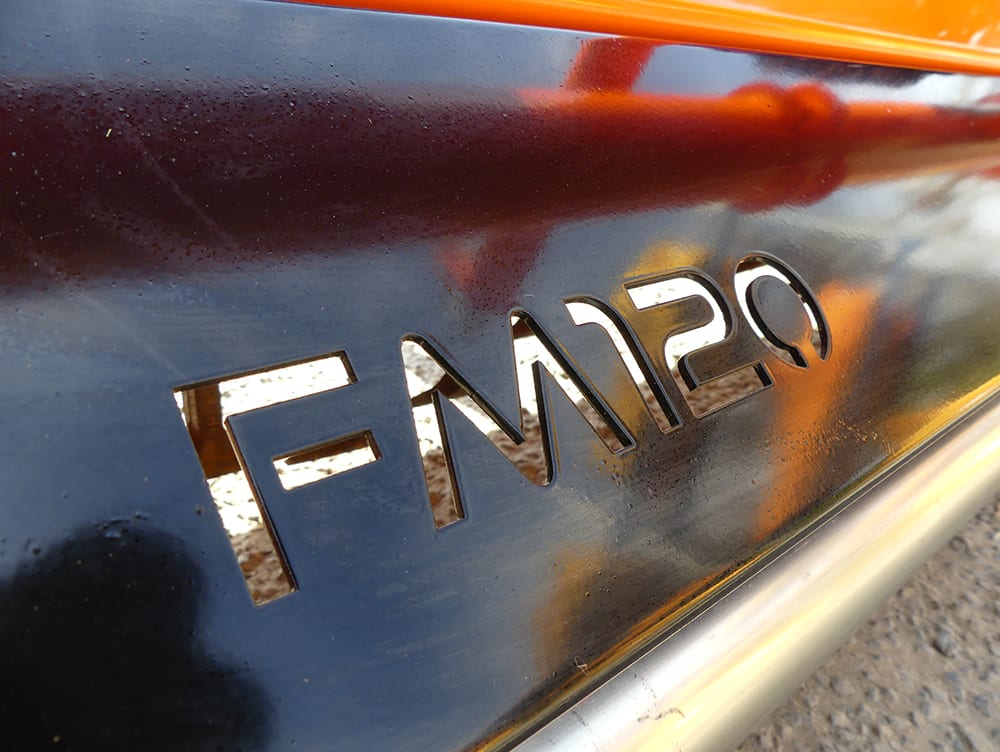

| Available Models | FM120 (1.2m) / FM150 (1.5m) |
| Cutting Width | 1.2m (FM120) / 1.5m (FM150) |
| Weight | 310kg (FM120) / 325kg (FM150) |
| Number of Flails | 22 (FM120) / 26 (FM150) |
| Cutting Height | 25–225mm (Adjustable) |
| Rotor Speed | 2,400rpm |
| Rotor Diameter | 360mm |
| Rotor Balance | G6.3 Dynamic Balanced |
| Deck Steel | 5mm Cover / 8mm Side Plates (Strenx) |
| Engine | Honda iGX800, 25hp EFI V-Twin, Electric Start |
| Cooling | Oil Cooled |
| Fuel Tank | 10 Litres |
| Belt Drive | 2 x BX41 Cogged Belts with Automatic Tensioning |
| Flail Type | Forged Hammer Flails |
| Controls | SmartCut Wireless — Engine Start, Blade Engagement, Real-Time Monitoring |
| Tyre Size | 22 x 11 x 8in Flotation |
| Tyre Position | Alongside Deck or Trailing (Switchable in Under 2 Minutes) |
| Clutch | Double Flyweight |
| Compatibility | ATV / UTV |
Available Options
| Option | Detail |
|---|---|
| Front Breaker Bar | Tubular fender bar to protect wheels and feed tall material into the mower |

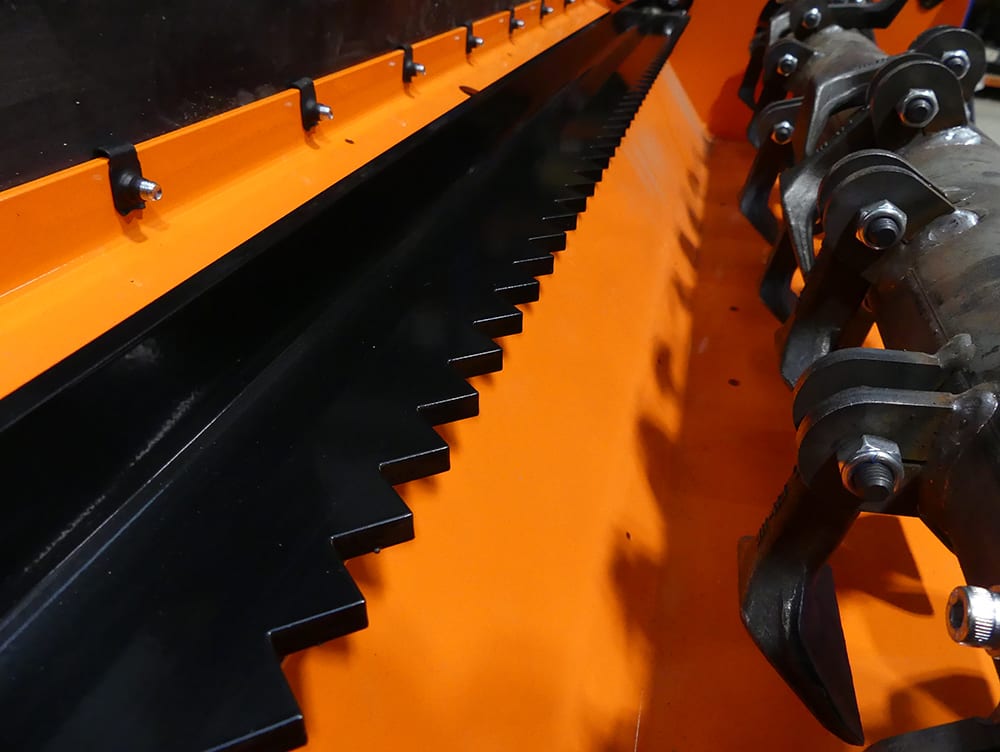

| Cutter Bar | Fixed cutter bar within deck to increase mulching and reduce chop size |
| Twin Bogie Axle | Rocking beam axle with two wheels per side for rough terrain — side position only |
| Forged Hammer Flails | Replacement / spare forged hammer flails |
