Chapman DT100 Hydraulic Dump Trailer - 1 Ton Payload
Chapman DT100 Hydraulic Dump Trailer - 1 Ton Payload is backordered and will ship as soon as it is back in stock.

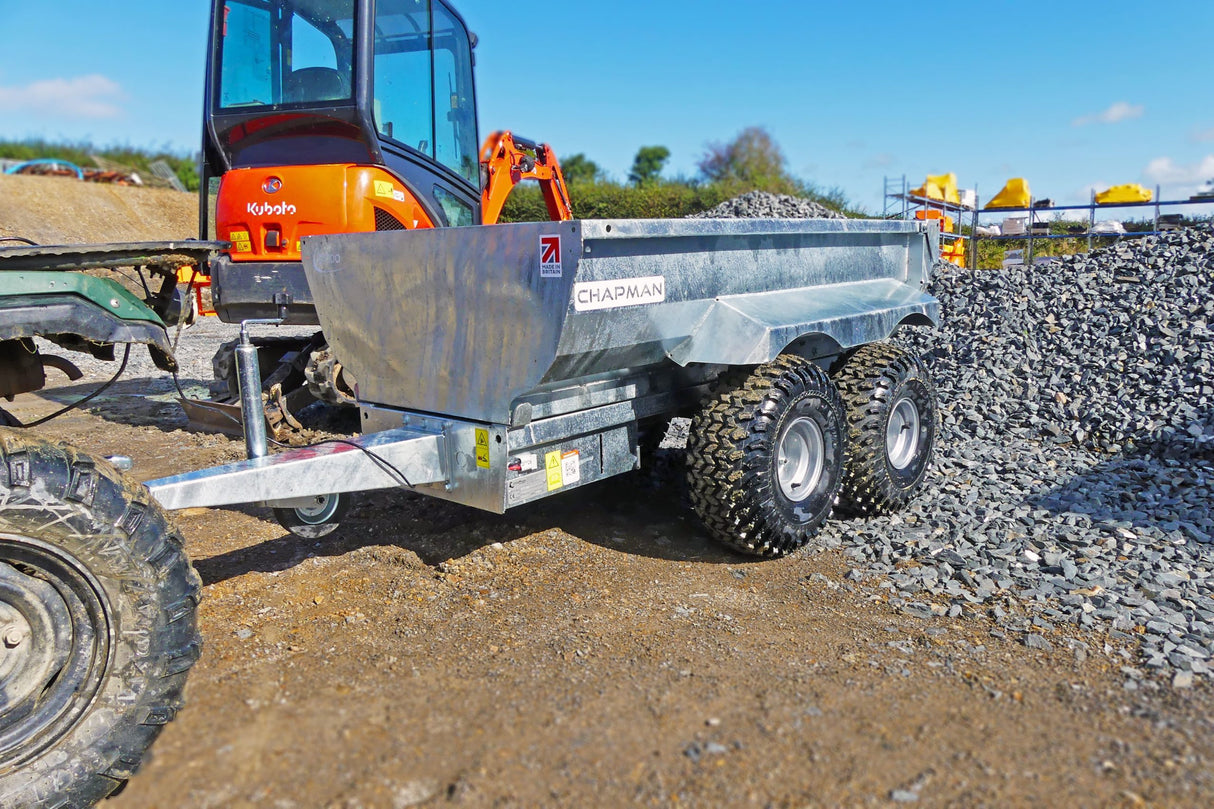

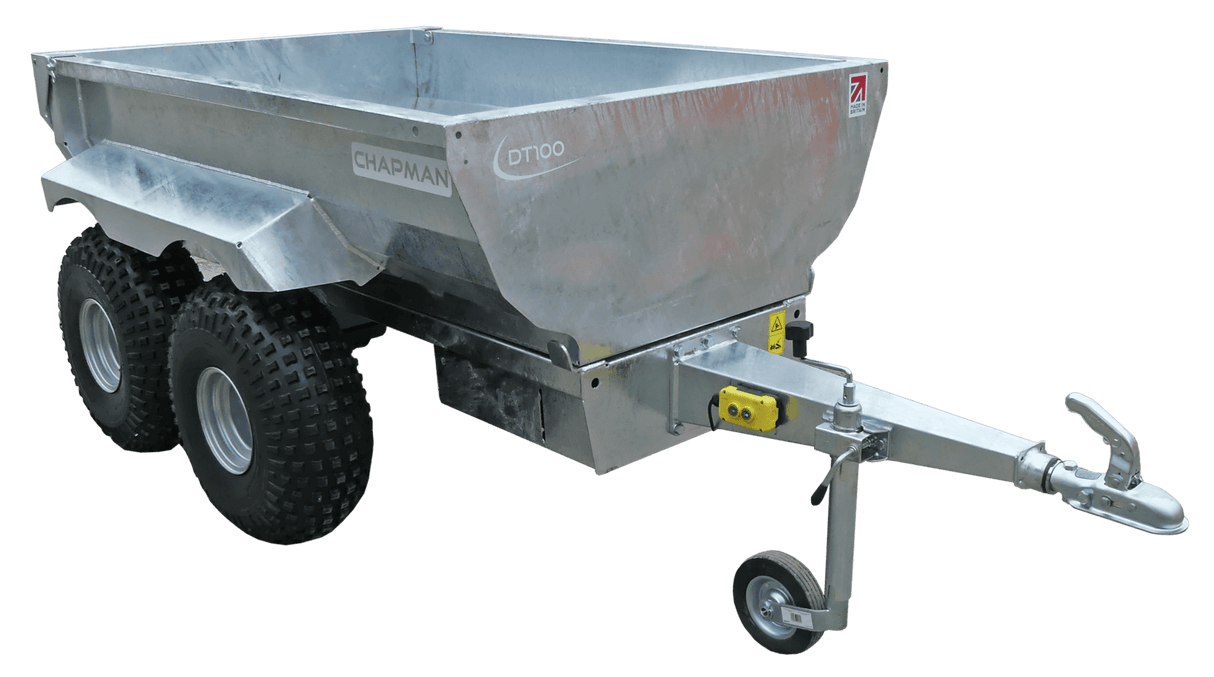

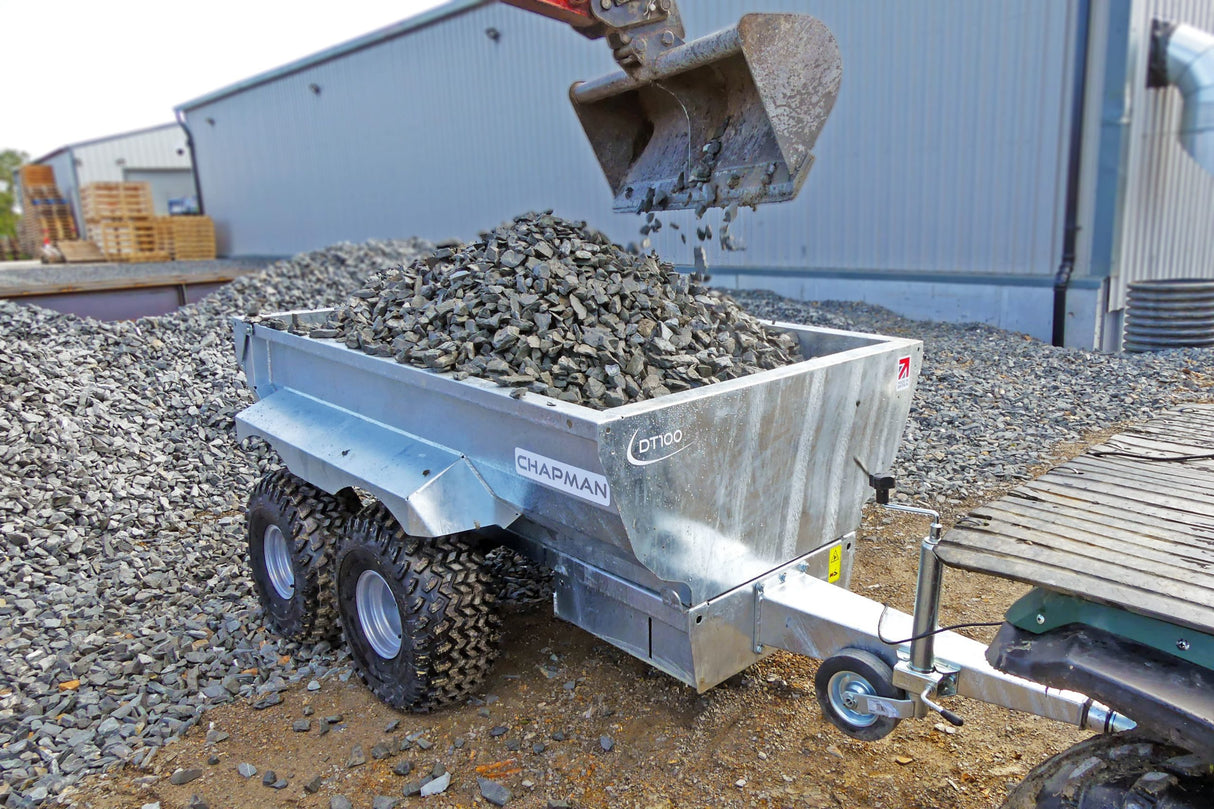

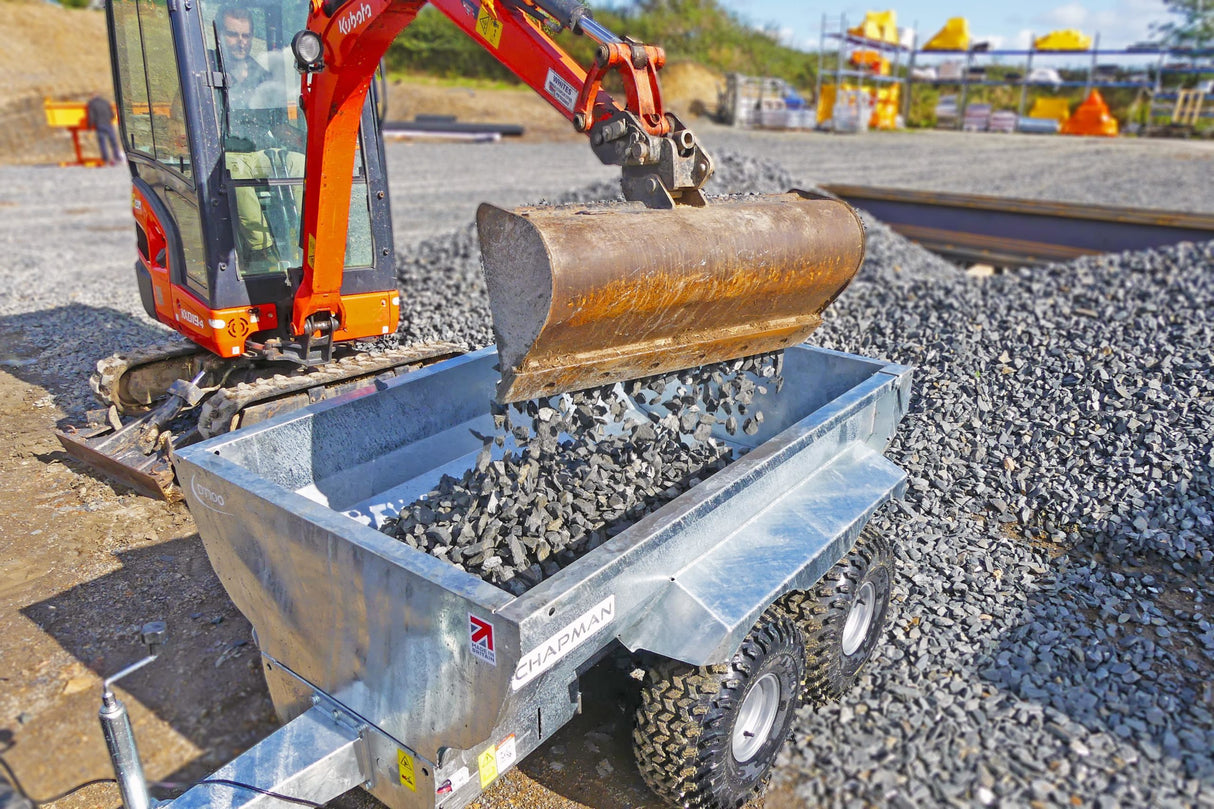

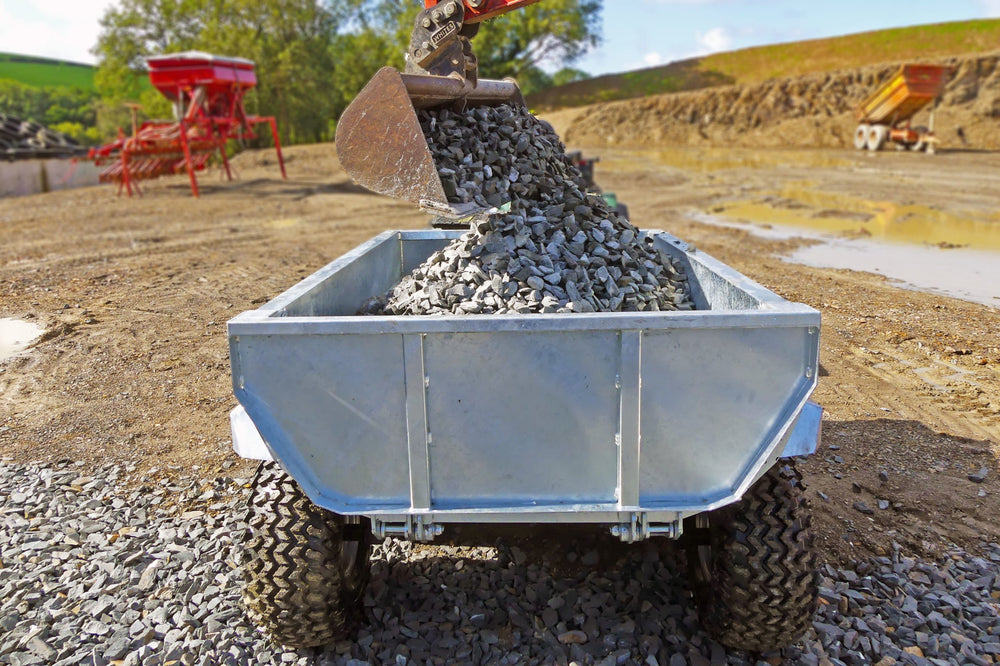

The Chapman DT100 is an electric hydraulic tipping trailer for ATVs, UTVs and 4x4 vehicles, designed for agricultural, equestrian and contracting use. Rated to a maximum laden weight of 1,400kg with a 1 ton payload capacity, it is suited to moving soil, dung, stone and similar materials. The DT100 is off-road use only.

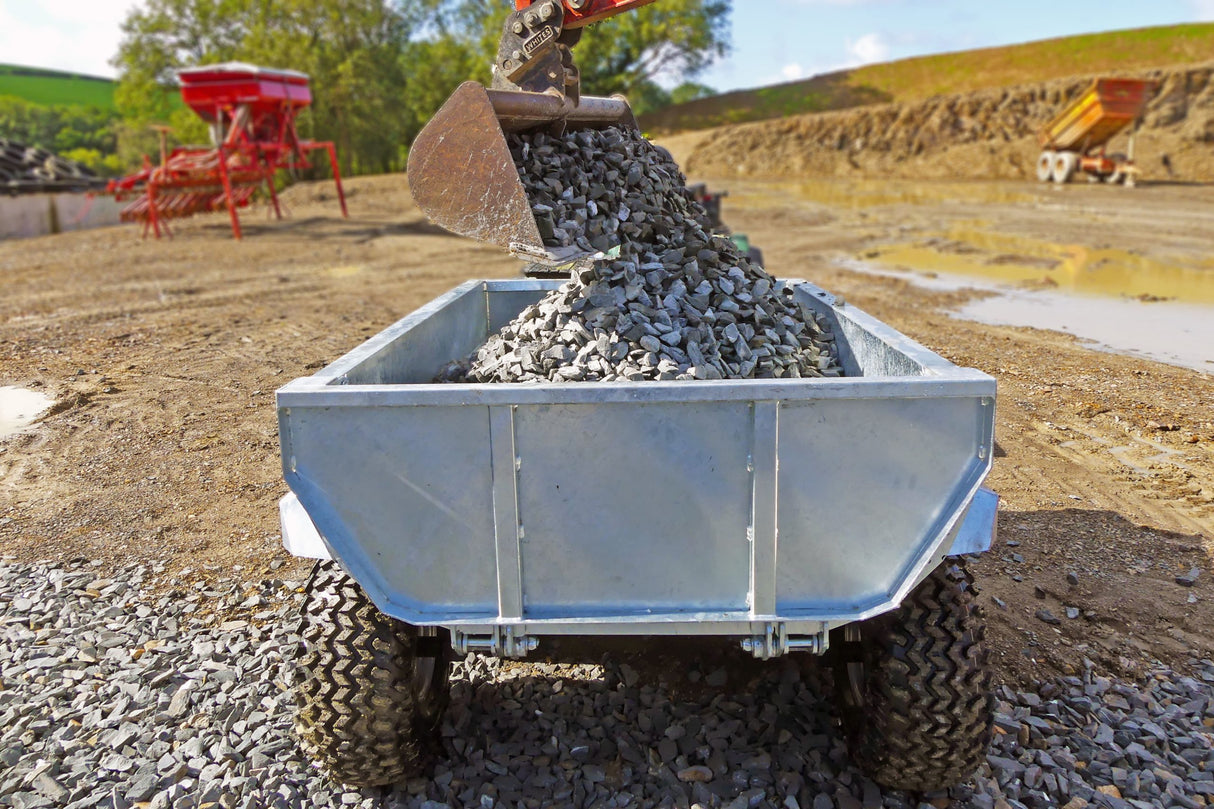

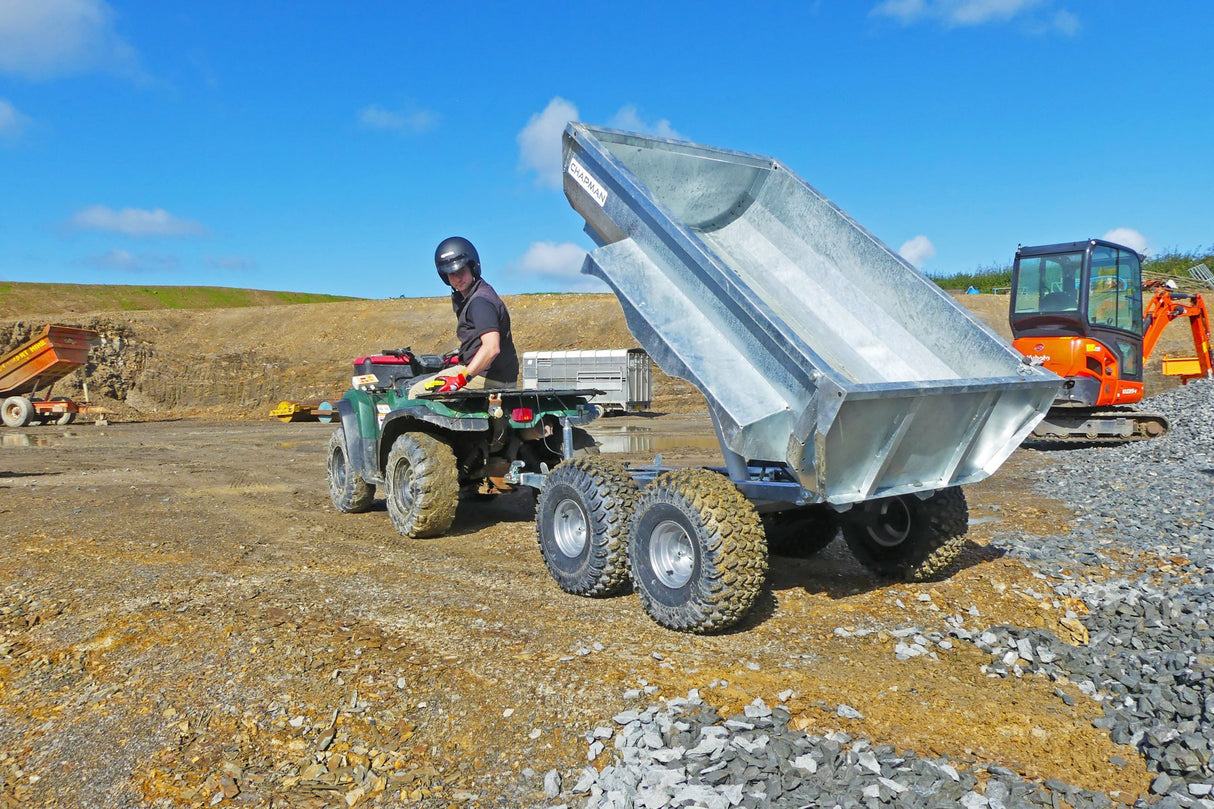

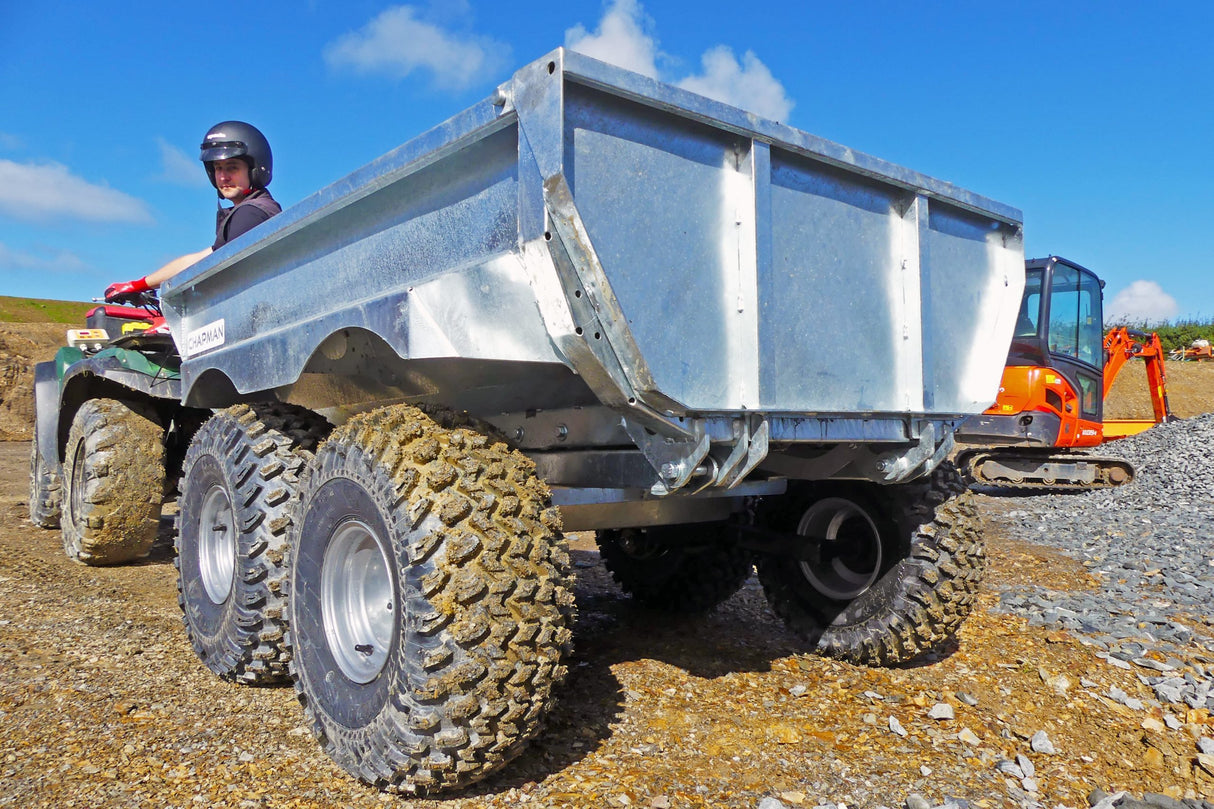

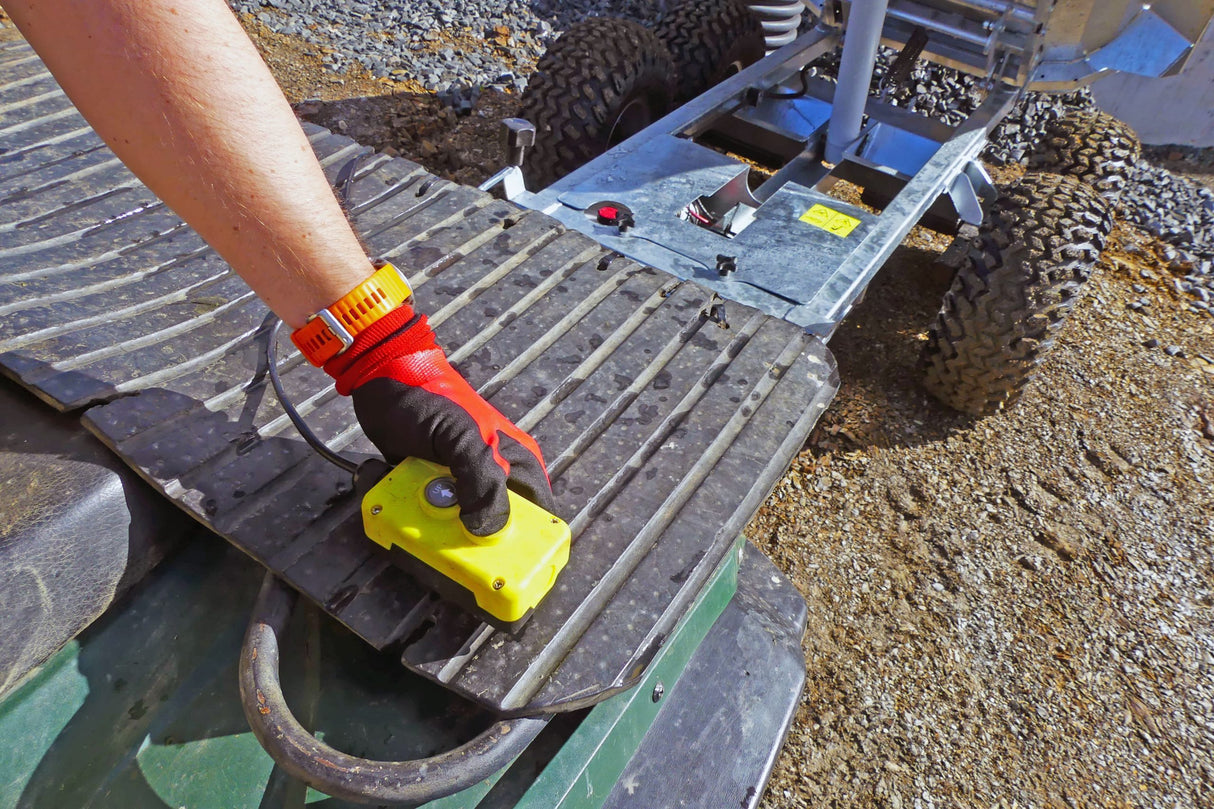

An electric hydraulic tipping system with a 50° tipping angle is controlled via a wired hand remote that attaches to the back of the towing vehicle, with an on-board battery for self-contained operation. An automatic latch and unlatch system in the rear tailgate allows hassle-free emptying without manual intervention. Twin pivoting axles with four flotation tyres provide stability and easy towing over rough ground.

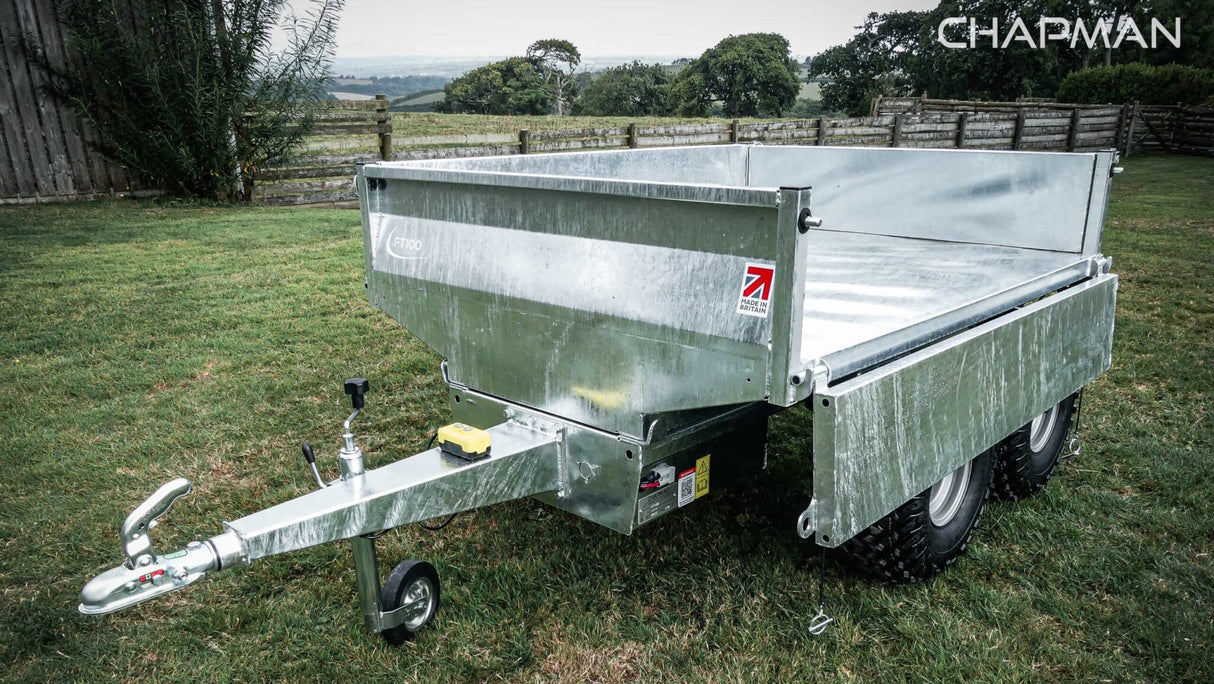

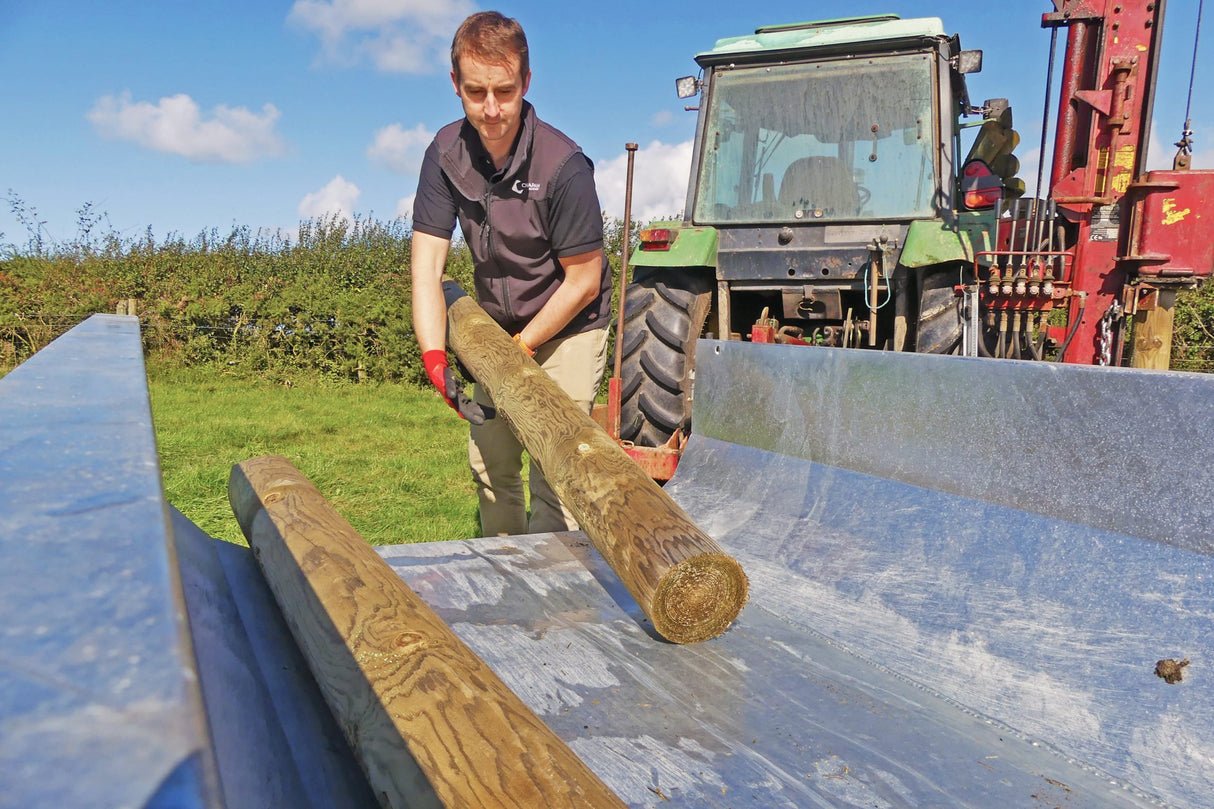

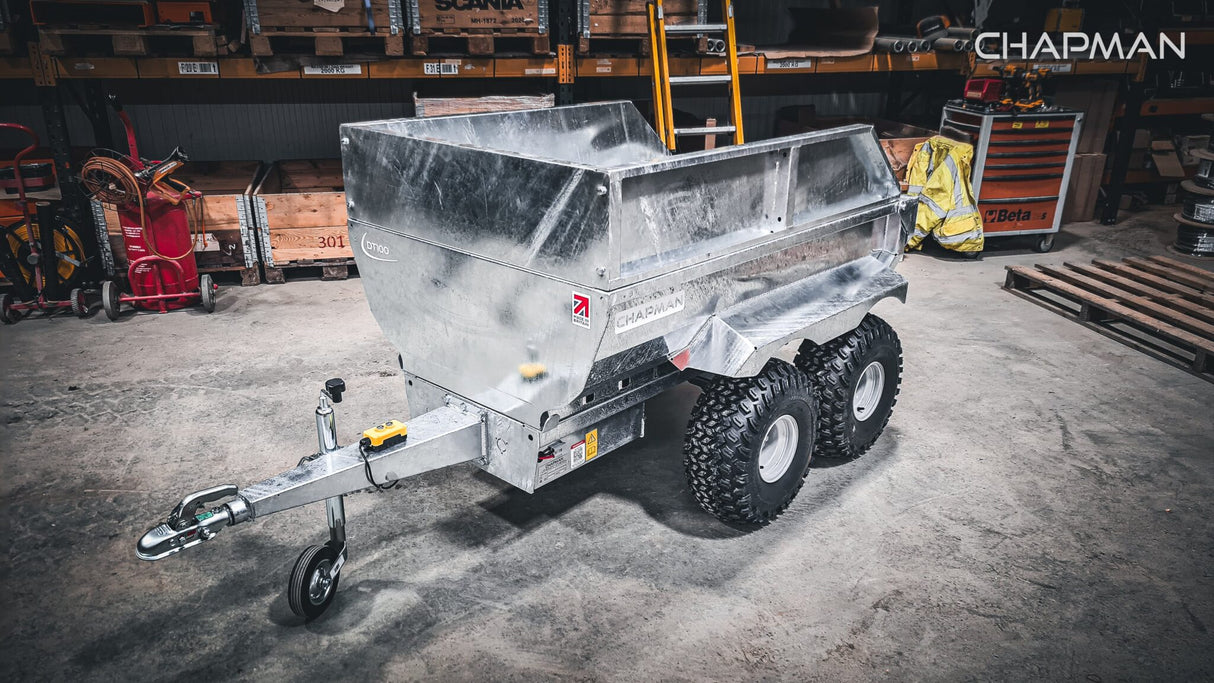

A flat bed body option is available in place of the standard dump body, retaining the hydraulic tipping function and adding removable drop-down sides for flexible load carrying. Extension sides increase the body height by 300mm for bulkier lighter materials such as manure and leaves. A wireless remote upgrade eliminates the wired cable for cleaner operation, and an LED light kit is available for improved visibility.
Available Options
| Option | Detail |
|---|---|
| Wireless Remote | Replaces wired remote - no trailing cables |
| Extension Sides | Increases body height by 300mm for bulkier materials |
| Flat Bed Body | Replaces dump body - retains hydraulic tip, removable drop-down sides |
| LED Light Kit | Integrated LED lighting for improved visibility |
Specifications
| Specification | Detail |
|---|---|
| Unladen Weight | 335kg |
| Maximum Laden Weight | 1,400kg |
| Maximum Payload | Approx. 1,065kg (1 Ton) |
| Volume (Heaped) | 1.7m³ |
| Tipping Angle | 50° (Approx) |
| Hydraulic Pump | 4.5L at 160 Bar |
| Control | Wired Hand Remote with On-Board Battery |
| Tailgate | Automatic Latch and Unlatch |
| Axles | Twin Pivoting |
| Tyre Size | 4 x 22 x 11 x 8in Flotation |
| Finish | Fully Galvanised |
| Use | Off-Road Only |
| Compatibility | ATV / UTV / 4x4 |
