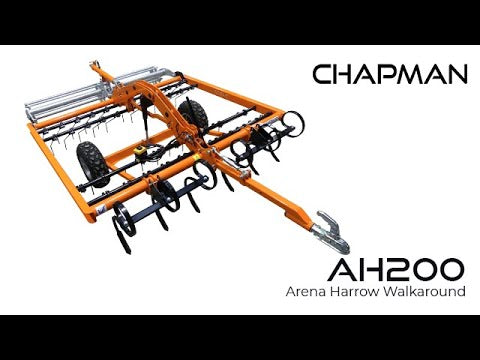

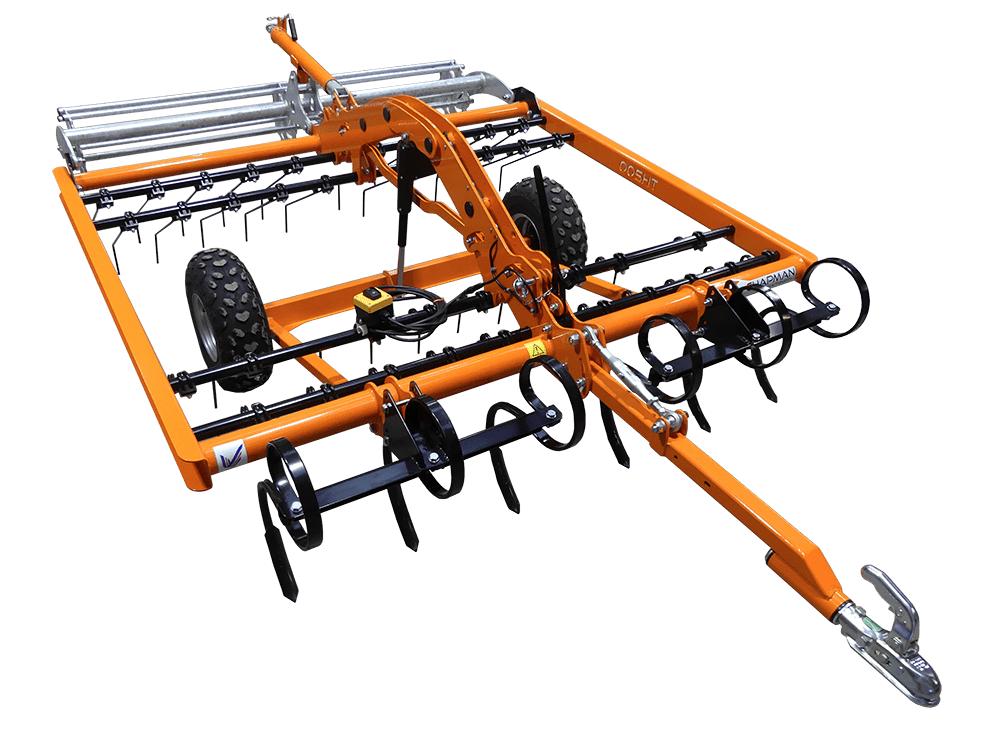

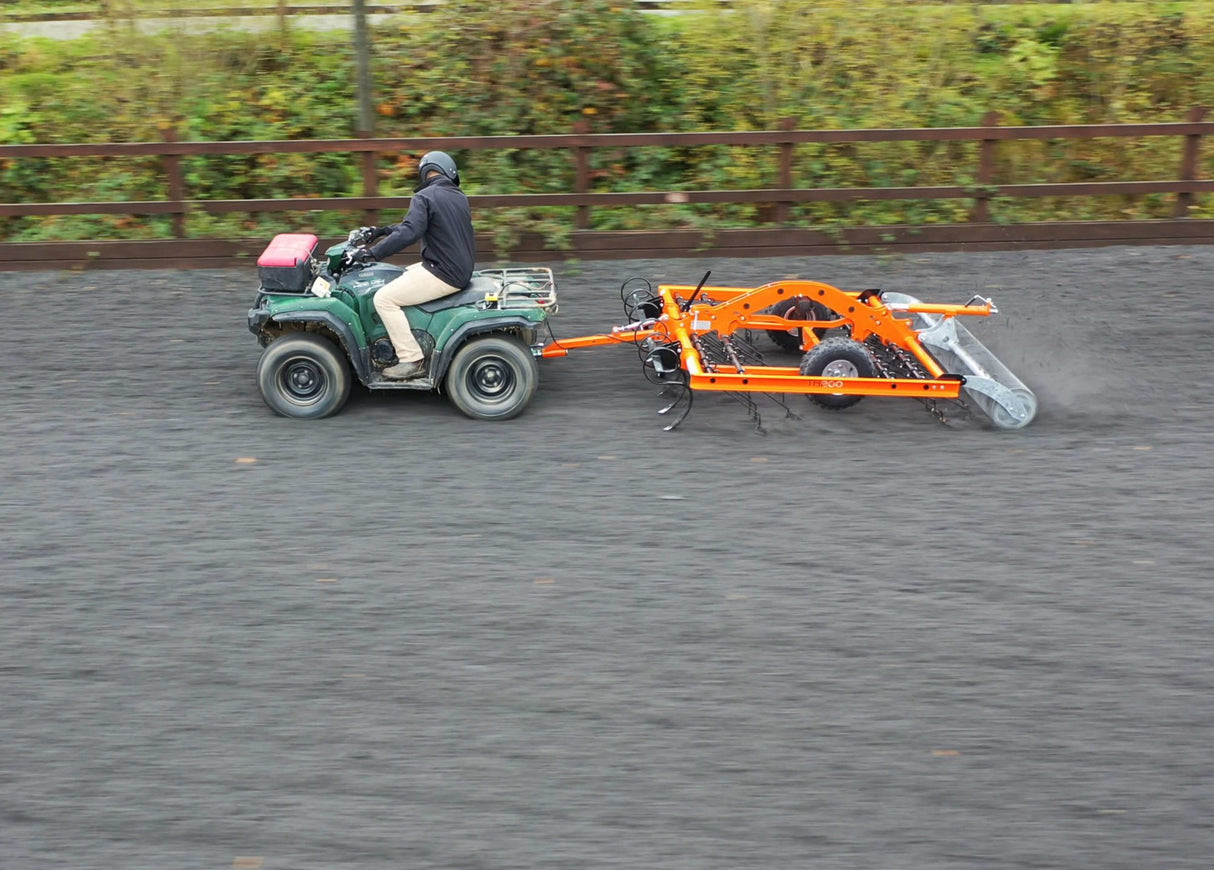

The Chapman AH200 is a towed arena harrow with a 2.0m working width, designed for the maintenance of equestrian arenas, sand schools and gallops with synthetic, fibre and wax-stabilised surfaces such as CombiRide, Turfloat and CLOPF. Available for use behind ATVs, UTVs and most vehicles equipped with a 50mm ball or pin hitch.

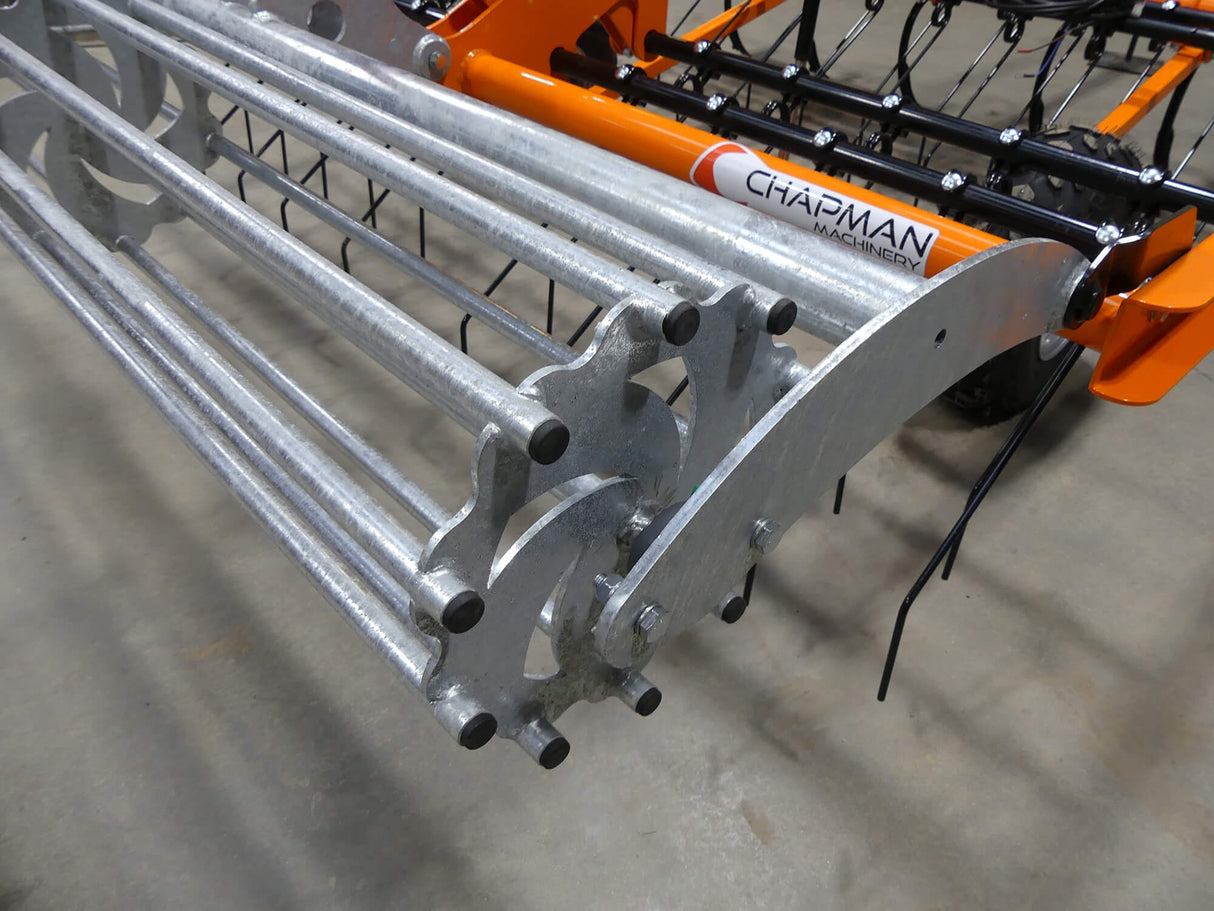

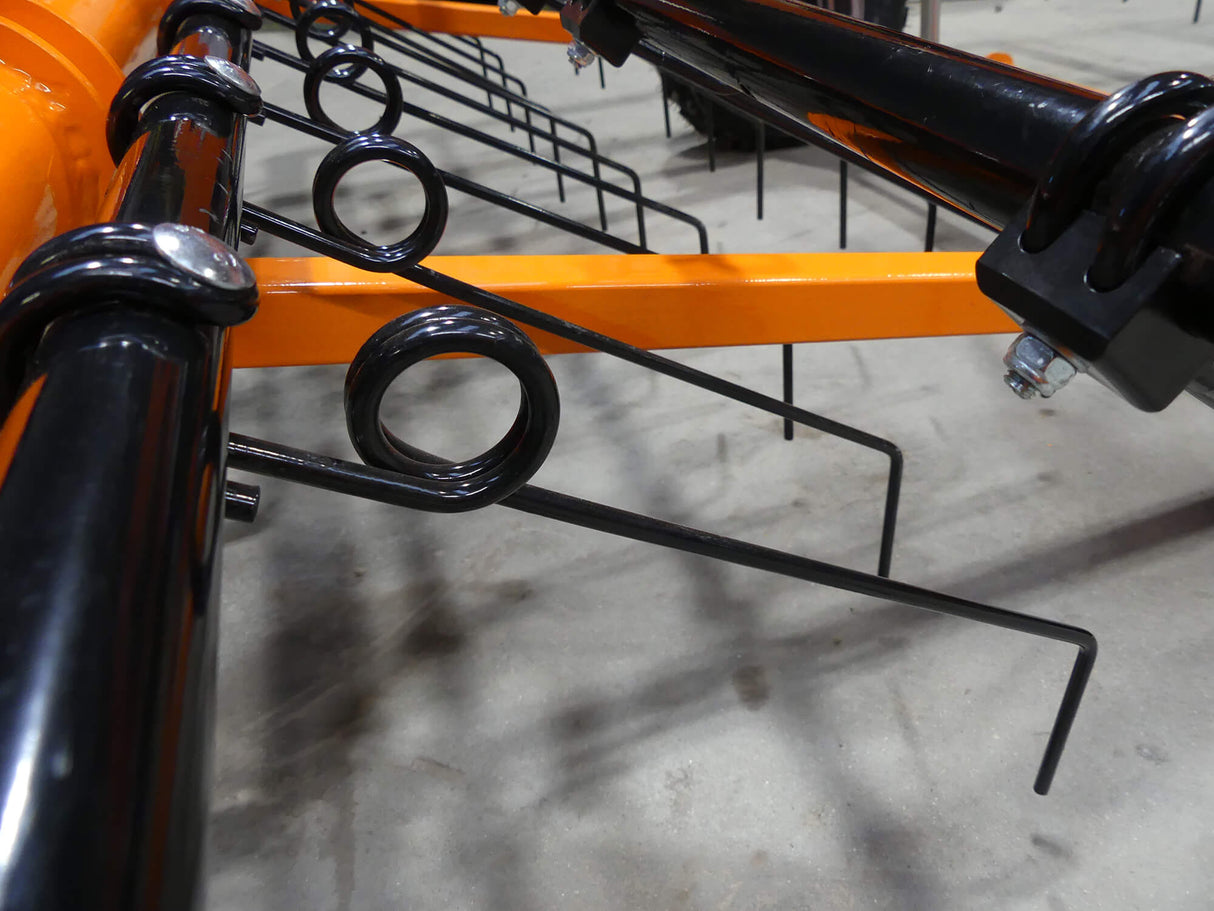

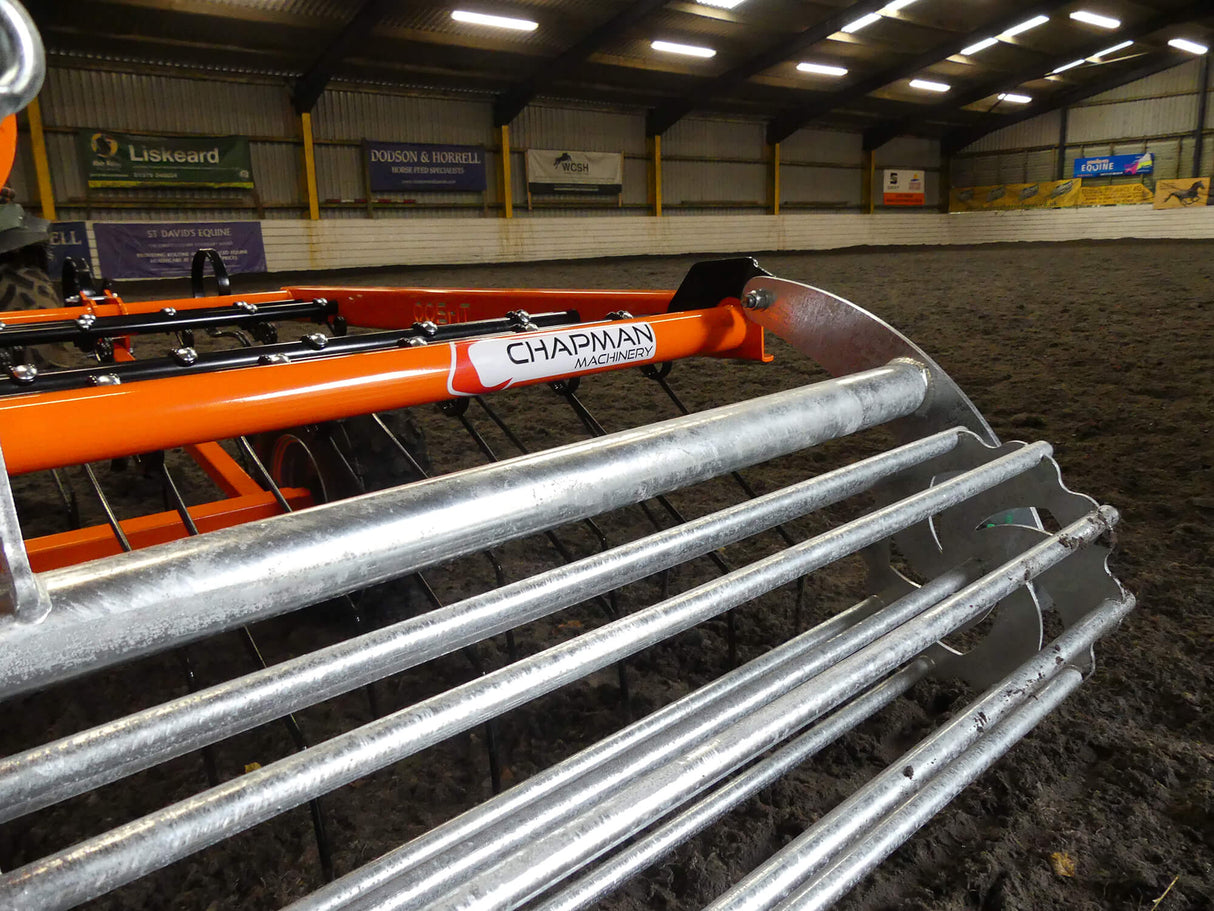

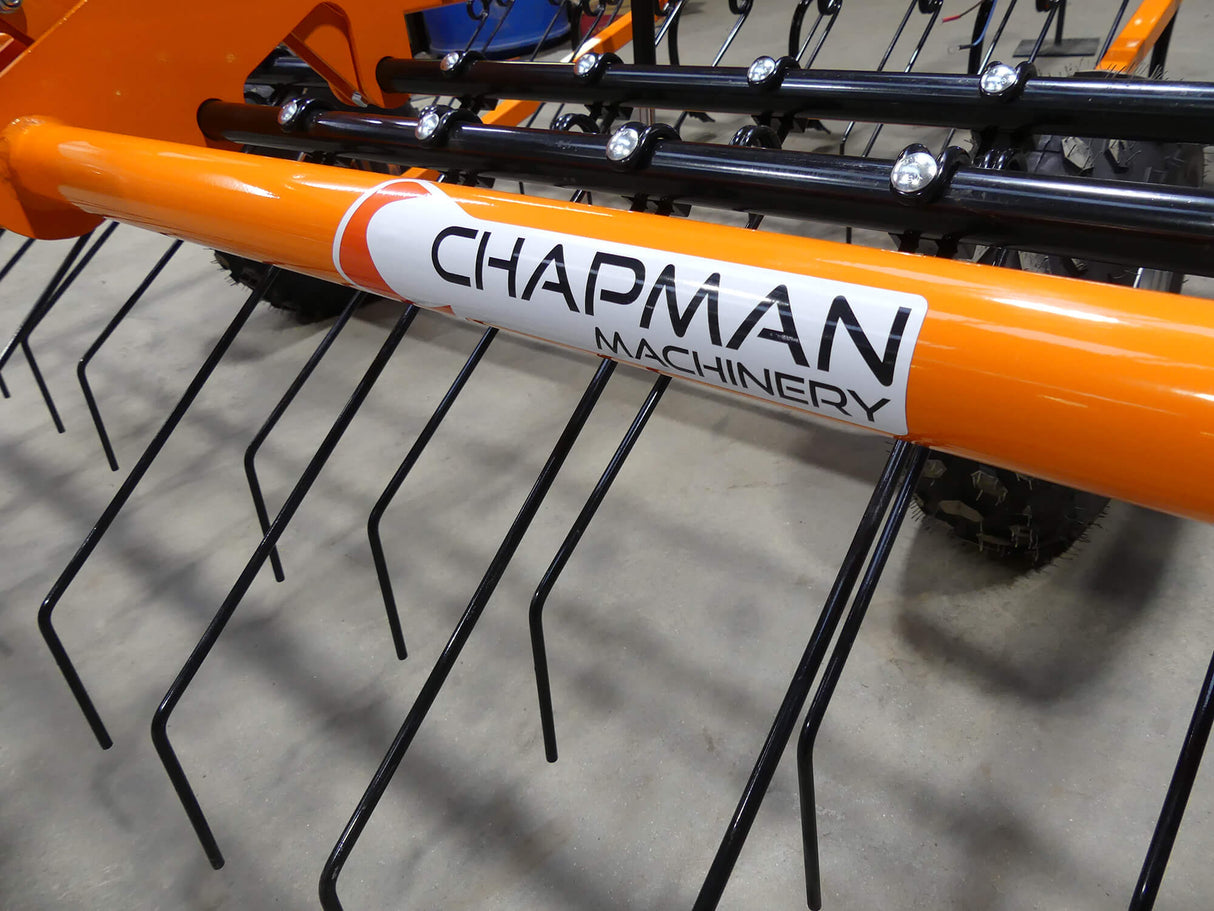

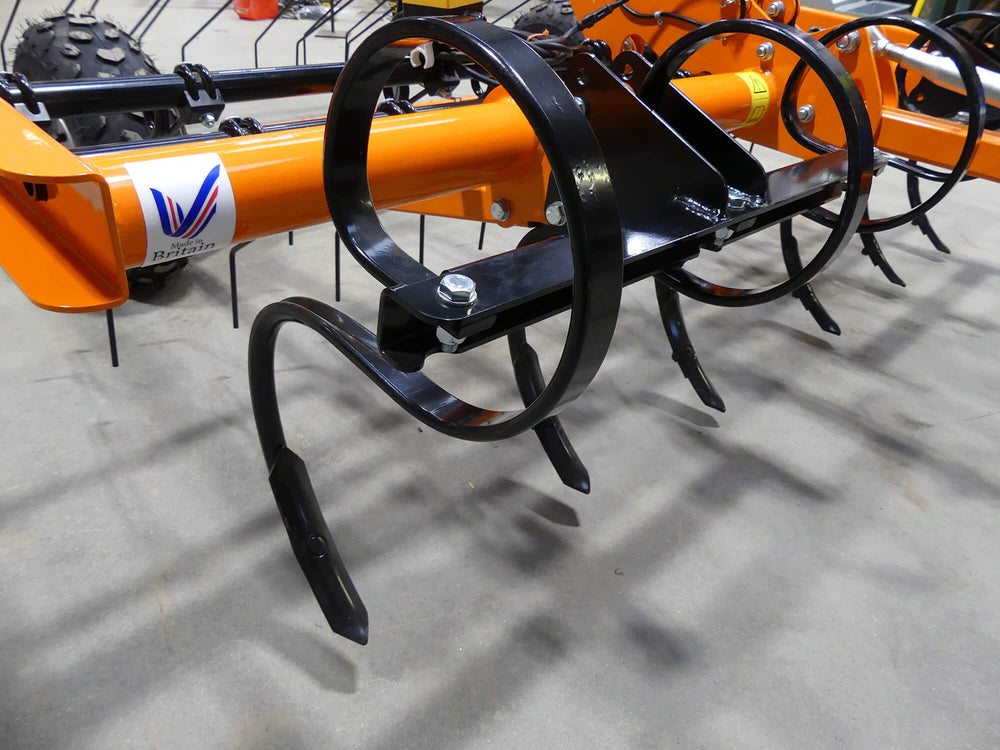

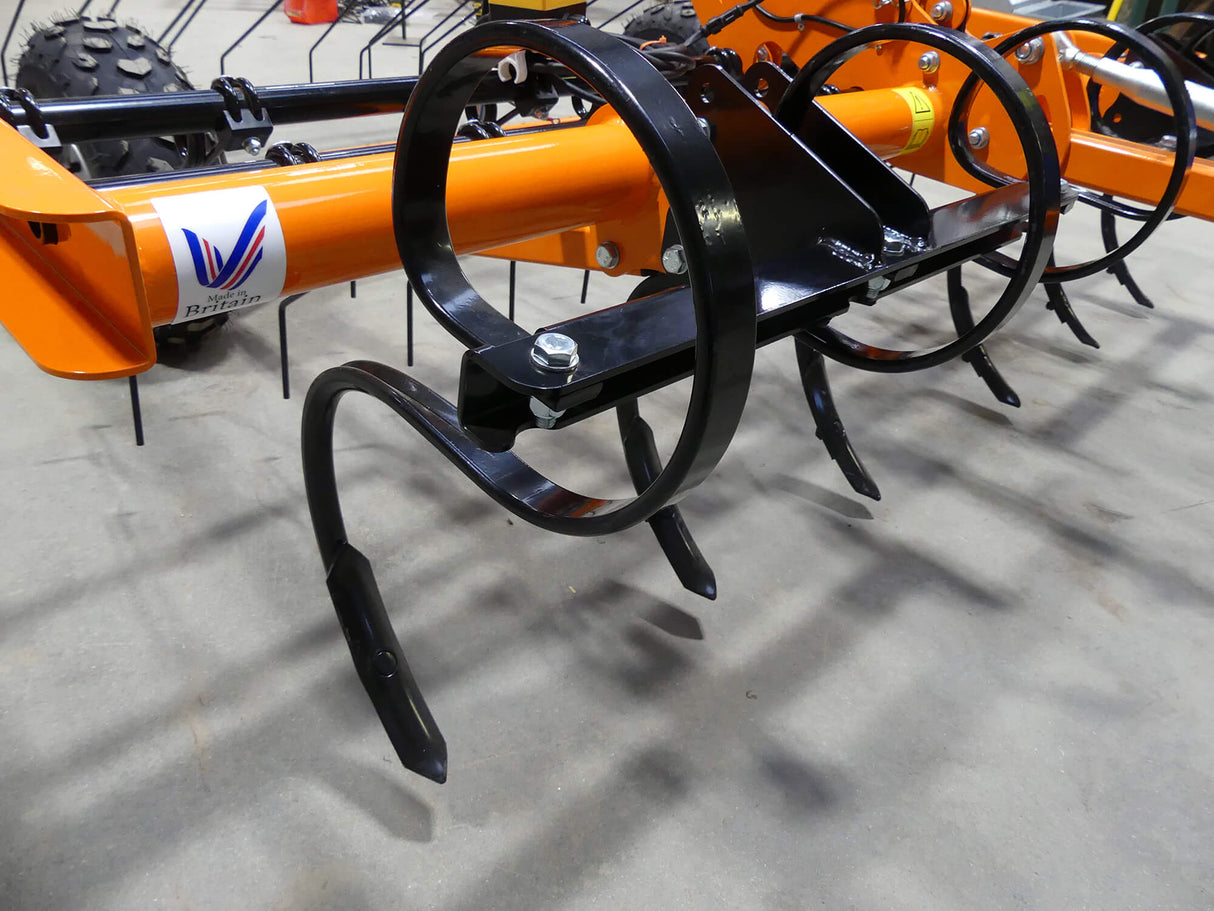

Six front-mounted heavy-duty S tines loosen and lift the surface to promote a greater mix of fibre and synthetic materials. Forty spring tines arranged across four offset rows follow, smoothing the surface with three adjustable tine aggressiveness settings. A rear consolidation roller compacts and orientates fibres across the surface for a consistent finish in a single pass.

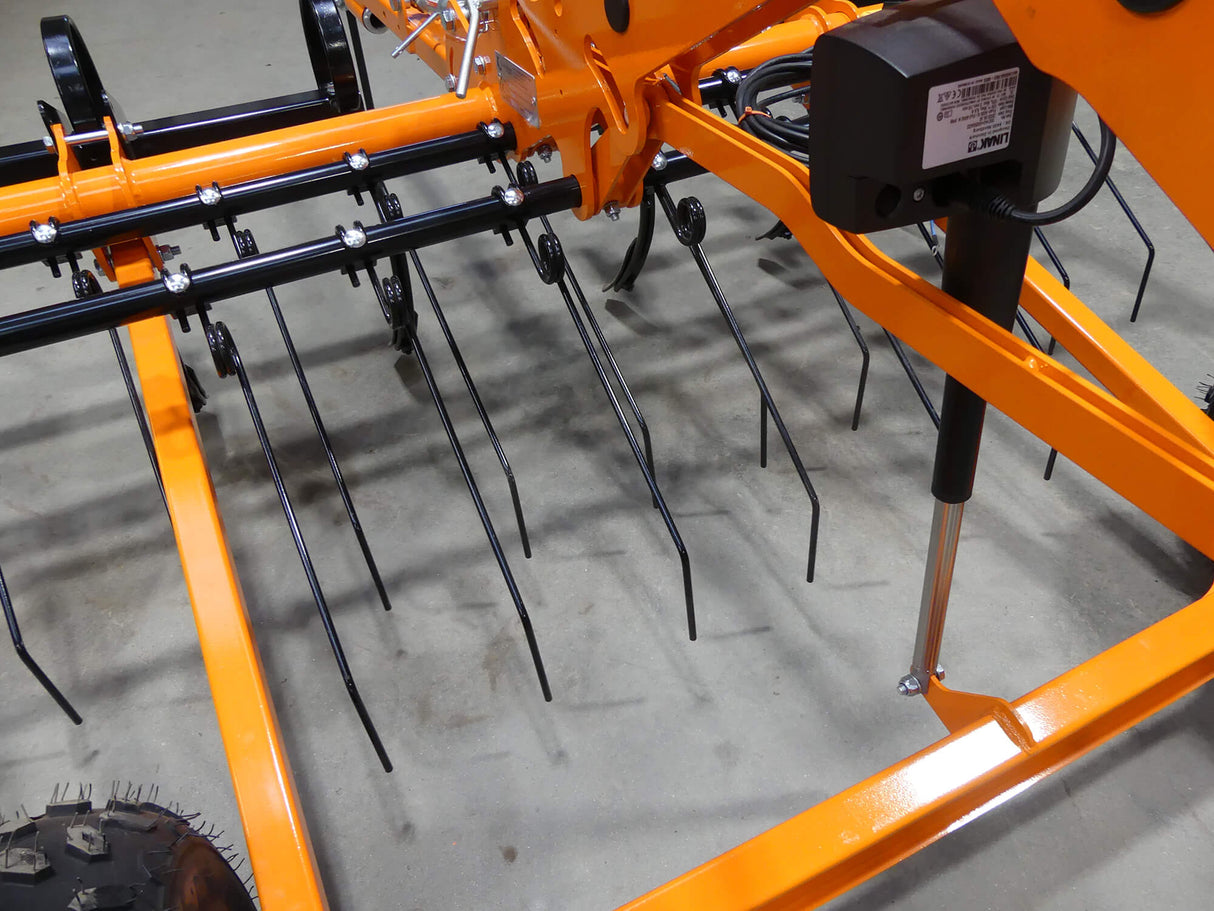

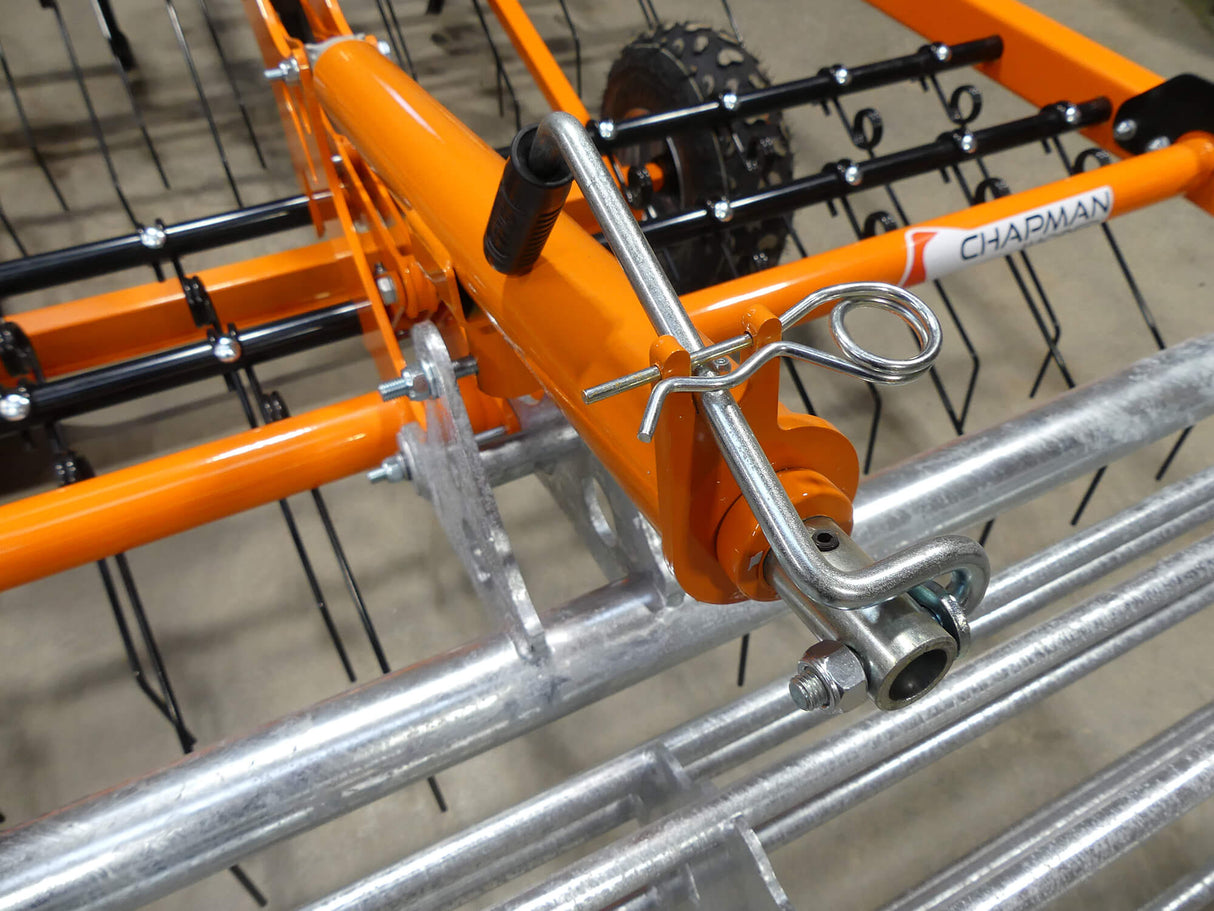

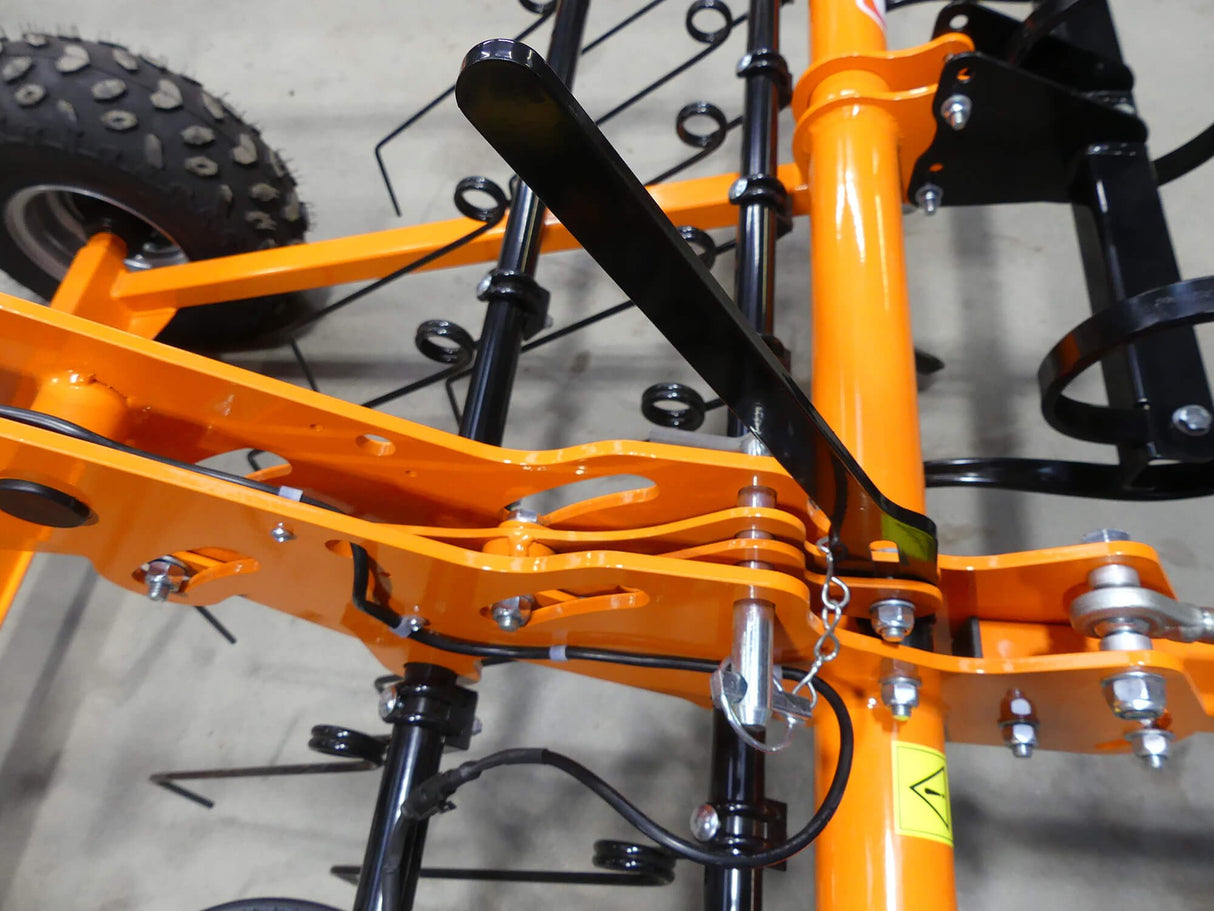

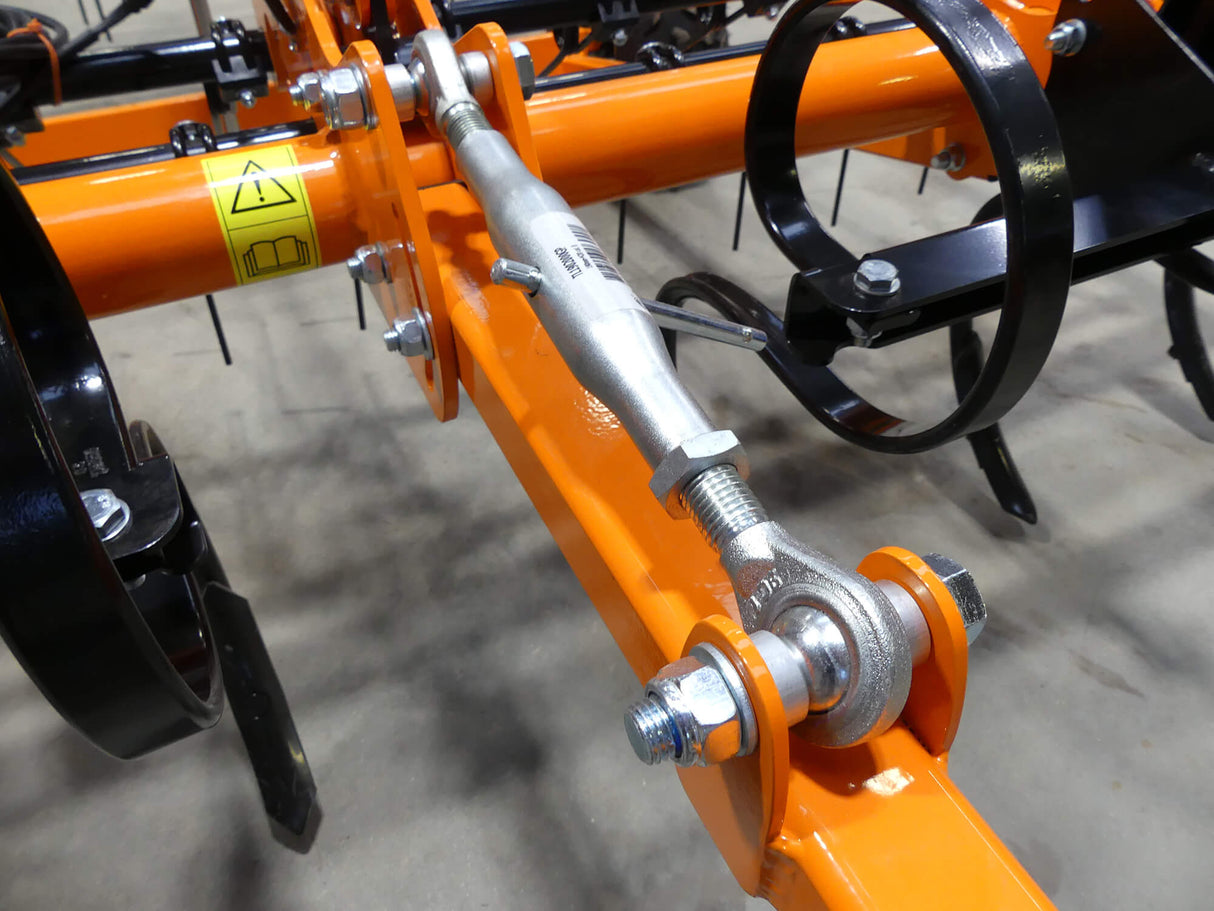

A 12V electric actuator raises and lowers the machine between work and transport positions via a remote switch on the towing vehicle. A height-adjustable drawbar accommodates different tow ball heights, and a British-manufactured swivel hitch is fitted as standard. The AH200 carries a 2-year manufacturer warranty.
