KFI AS-25 Assault Series 2500lb / 1134kg Synthetic Cable Winch | 12...

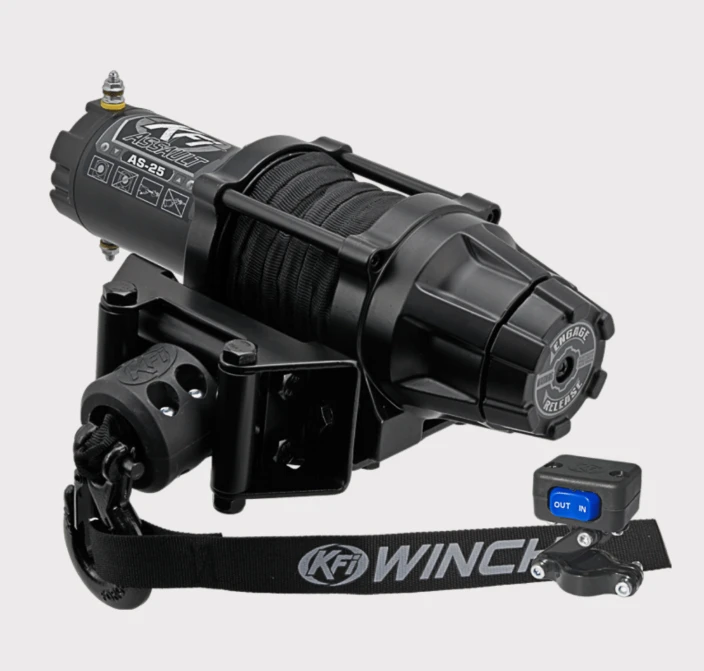

Synthetic cable winch from KFI's AS-25 Assault Series, rated at 2,500lb / 1,134kg. Features all-metal planetary gear drive, dynamic and mechanical brake, water resistant seals and an all-metal turn clutch. Supplied with a handlebar-mounted mini-rocker switch, heavy duty electrical contactor and split cable hook stopper. No corded hand remote is included. A model-specific mount is required and must be purchased separately for your make and model of ATV or UTV.
Specifications
| Specification | Detail |
|---|---|
| Model | AS-25 Assault Series |
| Load Rating | 2,500lb / 1,134kg |
| Motor | 12V DC, 1.07hp Permanent Magnet |
| Gear Ratio | 180:1 |
| Transmission | All-Metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch | All-Metal Cam Activated Freespool |
| Drum Size | 1.75in (D) x 3.19in (L) |
| Synthetic Cable | 3/16in (D) x 50ft (L), Smoke Colour |
| Cable Sheath | 5ft Protective Sheath with End Loop |
| Fairlead | Multi-Directional POM Roller |
| Control | Handlebar-Mounted Mini-Rocker Switch |

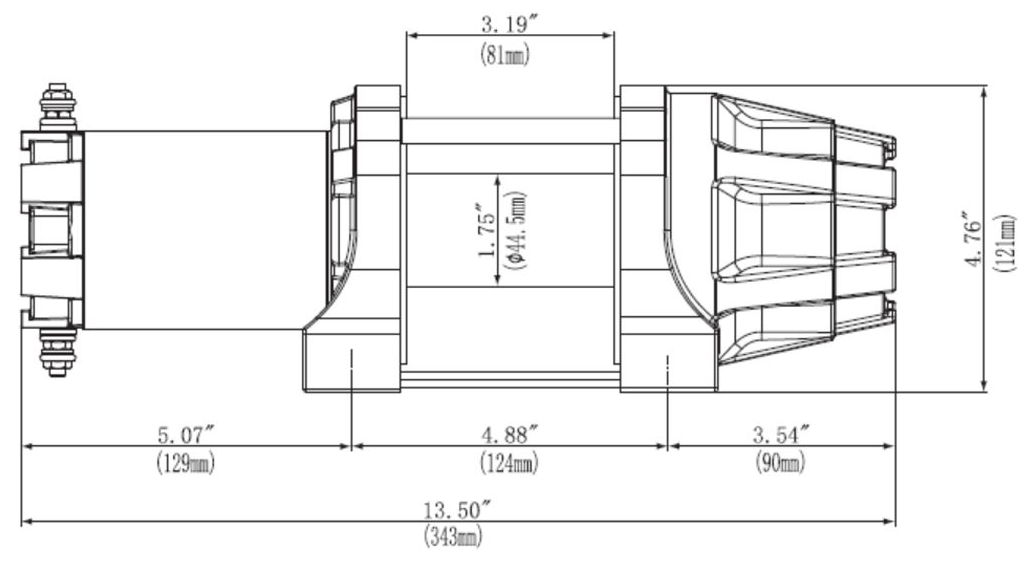

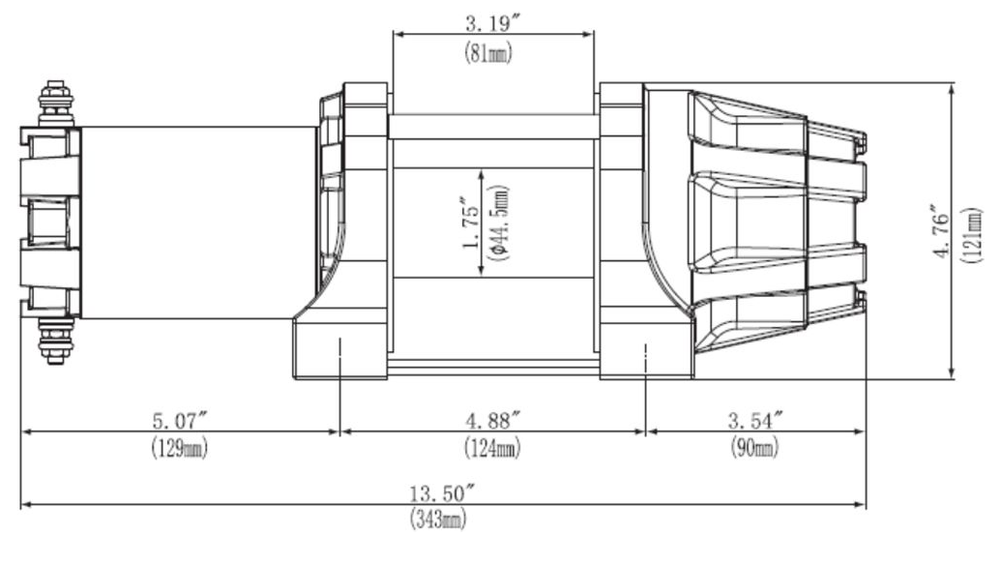

| Winch Dimensions | 13.5in L x 4.44in D x 4.76in H |
| Mounting Bolt Pattern | 3.00in x 4.88in (4-Bolt) |
| Mount Plate | Fairlead Mount Only — Model-Specific Mount Required Separately |
| Recommended Battery | 12Ah Minimum |
| Winch Weight | 24.3lb (Complete Kit) |
| Warranty | 2 Year Limited |
Kit Contents
| Item | Detail |
|---|---|
| Winch | 1x AS-25 Assault Series |
| Synthetic Cable | 50ft with 5ft Protective Sheath (SYN19-S50) |
| Handlebar Mini-Rocker Switch | Included (ATV-MR) |
| Heavy Duty Electrical Contactor | Included (AS-CONT) |
| Split Cable Hook Stopper | Included (ATV-SCHS) |
| Mounting Hardware | Included |
| Installation Instructions | Included |
