MOSFET Regulator Rectifier – Arctic Cat 375 / 400 / 500 / TBX / TRV...

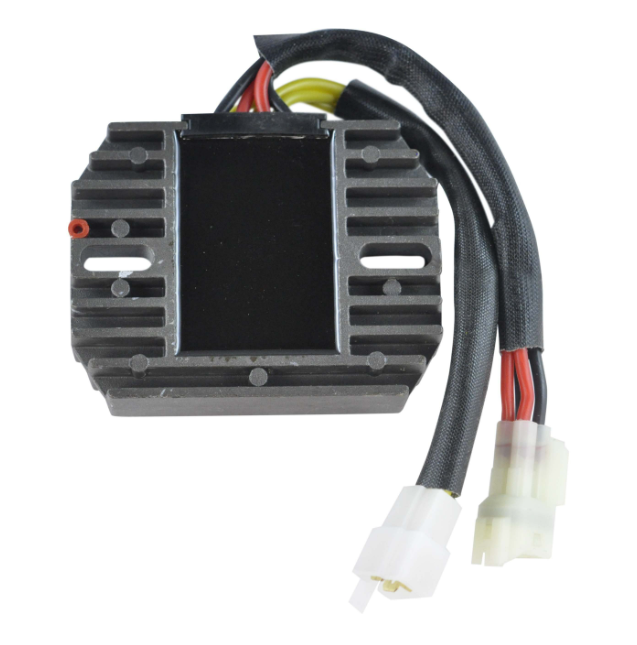

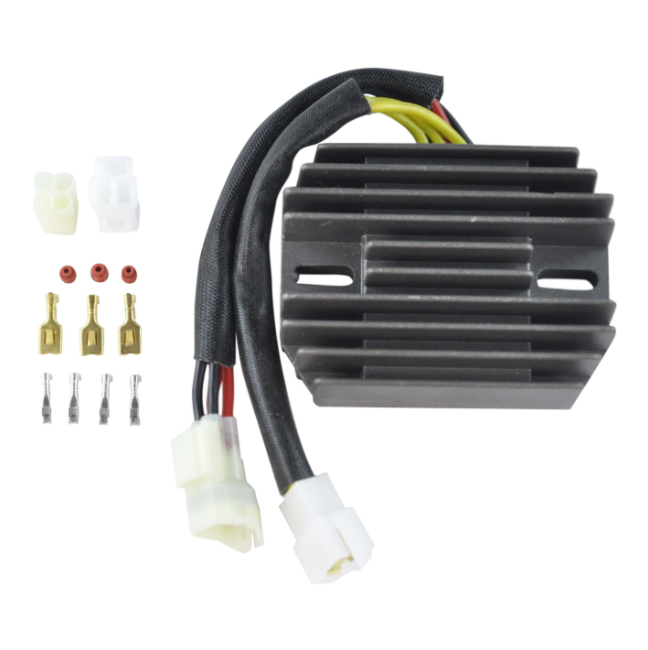

An advanced MOSFET-type replacement regulator rectifier compatible with the Arctic Cat 375, 400, and 500 ATV ranges - including TBX and TRV variants - and the Suzuki SV 650, SV 1000, and V-Strom 650 produced between 2000 and 2009. Unlike conventional diode-style regulators, this MOSFET design runs significantly cooler and features built-in overheat protection - temporarily shutting off to cool down rather than burning out. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to exceed OEM specification using higher-grade electrical components and an improved heat sink. Cross-referencing OEM part numbers across both Arctic Cat and Suzuki for straightforward identification. Verify your model, transmission type, and year against the fitment table before ordering.
Fitment
Arctic Cat – ATV
| Model | Year Range |
|---|---|
| 375 Automatic | 2002 |
| 400 Automatic | 2003–2008 |
| 400 Manual | 2001–2008 |
| 500 Automatic | 2000–2009 |
| 500 Manual | 2001–2009 |
| TBX 400 | 2004–2006 |
| TBX 500 | 2002–2006 |
| TRV 400 | 2006–2007 |
| TRV 500 | 2003–2006, 2008 |
Suzuki – Motorcycle
| Model | Year Range |
|---|---|
| SV 650 | 2003–2008 |
| SV 650S | 2003–2008 |
| SV 1000 | 2003–2006 |
| SV 1000S | 2003–2007 |
| V-Strom 650 | 2004–2007 |
Key Features
- Advanced MOSFET design — runs cooler than OEM diode-style regulators
- Built-in overheat protection — shuts off temporarily rather than burning out
- Covers Arctic Cat 375 / 400 / 500 / TBX / TRV and Suzuki SV 650 / SV 1000 / V-Strom 650 variants
- Year range 2000–2009
- Replaces OEM part numbers 3402-682, 3530-028, 3530-059, 32800-16G00, and 32800-16G01
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 3402-682 | Arctic Cat |
| 3530-028 | Arctic Cat |
| 3530-059 | Arctic Cat |
| 32800-16G00 | Suzuki |
| 32800-16G01 | Suzuki |
Specifications
| Specification | Detail |
|---|---|
| Component | MOSFET Regulator Rectifier |
| Type | MOSFET (replaces OEM diode-style) |
| Voltage | 12V |
| Overheat Protection | Yes — thermal shutdown and recovery |
| Application | Arctic Cat 375 / 400 / 500 / TBX / TRV |
| Year Range | 2000–2009 |
| ATV City Part Number | RM30517 |
| Condition | New |
