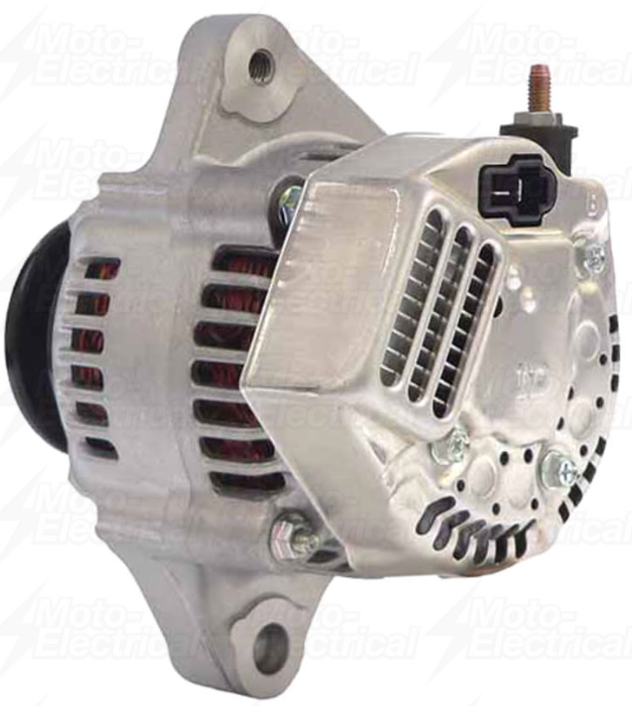

Alternator - Kawasaki KAF950 Mule Diesel / Cub Cadet / Toro | 12V 40A
A direct-fit replacement 12V 40A alternator for the Kawasaki KAF950 Mule 2510, 3010, and 4010 Diesel series, a range of Cub Cadet compact tractors, and the Toro Greensmaster 3200. The alternator generates AC electricity as the engine runs, which is converted to DC power to charge the battery and supply the vehicle's electrical system. A failing alternator typically presents as a flat battery that will not hold charge, dimming lights under load, or complete electrical failure even with a known good battery.

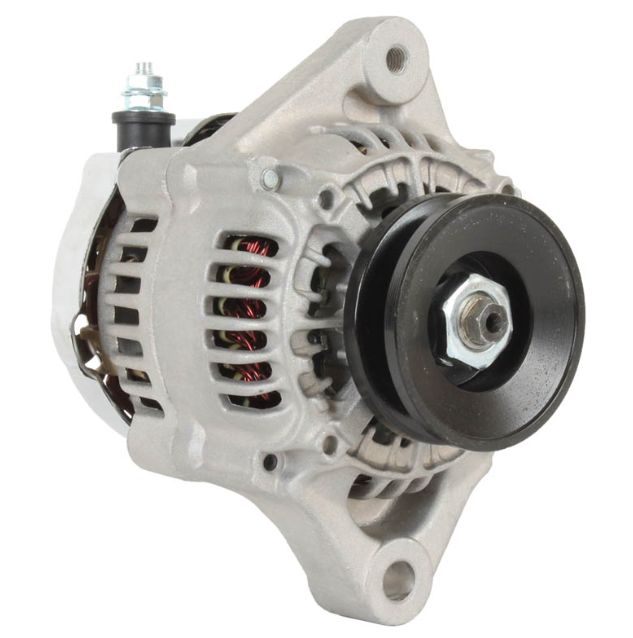

Manufactured to OEM specification with internal regulator, internal fan, clockwise rotation, and V-belt pulley with 64mm outer diameter, cross-referencing Kawasaki OEM part number 21001-1176 for straightforward identification. Verify your model and year against the fitment table before ordering.
Fitment
| Model | Year Range |
|---|---|
| KAF950 Mule 2510 Diesel | Year range not specified in source data |
| KAF950 Mule 3010 Diesel 4x4 | 2004–2008 |
| KAF950 Mule 3010 Diesel Trans 4x4 | 2007–2008 |
| KAF950 Mule 4010 Diesel 4x4 | 2010–2013 |
| KAF950 Mule 4010 Diesel Trans 4x4 | 2010–2013 |
| Cub Cadet Compact 5234DE | 2004–2006 |
| Cub Cadet Compact 5234DL | 2004–2006 |
| Cub Cadet Compact 5264DE | 2006 onwards |
| Cub Cadet Compact 5264DL | 2006 onwards |
| Cub Cadet Compact 7264 | 1998–2004 |
| Toro Greensmaster 3200 | 1995–1999 |
Key Features
- Direct OEM-specification replacement alternator
- 12V / 40A output - clockwise rotation - internal fan - internal regulator - V-belt pulley / 64mm OD
- Covers Kawasaki KAF950 Mule Diesel series, Cub Cadet compact tractors, and Toro Greensmaster 3200
- Regulator part number 126000-1160
- Replaces Kawasaki OEM part number 21001-1176
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 21001-1176 | Kawasaki |
| 27060-87211 | Daihatsu |
| 27060-87211-000 | Daihatsu |
| 27060-87212 | Daihatsu |
| 27060-87510-000 | Daihatsu |
| 100211-3050 | Denso |
| 100211-3051 | Denso |
| 100211-3240 | Denso |
| 100211-4620 | Denso |
| 100211-4621 | Denso |
| 100211-4630 | Denso |
| 100211-4631 | Denso |
| AND0285 / AND0450 | Arrowhead |
| 825084 | Briggs & Stratton |
| LRA01489 | Lucas Electric |
| 12513 / 12530 | Lester |
| 90-29-5504 | Wilson |
| A-80096 | Dixie |
| 99-9209 | Toro |
Specifications
| Specification | Detail |
|---|---|
| Component | Alternator |
| Voltage | 12V |
| Amperage | 40A |
| Rotation | Clockwise |
| Pulley Class | V1 / 64mm OD |
| Regulator | Internal (126000-1160) |
| Fan Type | Internal |
| Application | Kawasaki KAF950 Mule Diesel / Cub Cadet / Toro Greensmaster |
| ATV City Part Number | 400-52055 |
| Condition | New |
