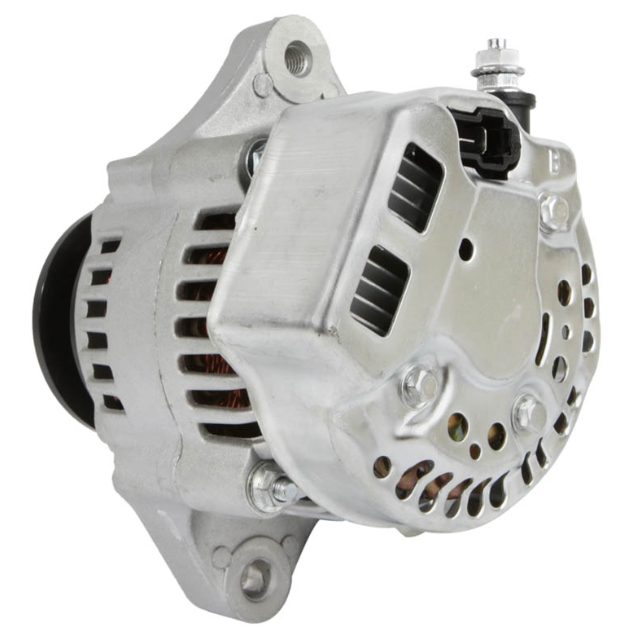

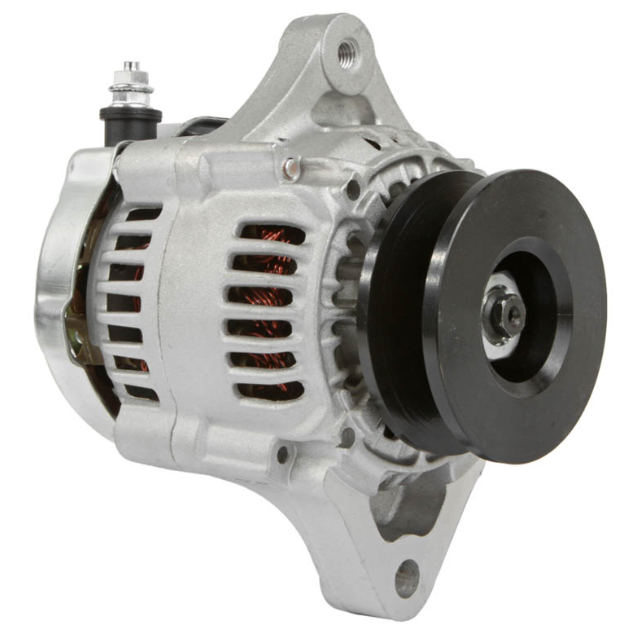

A direct-fit replacement 12V 40A alternator for the John Deere Gator CS and Gator CX Compact Series fitted with Kawasaki engines. The alternator generates AC electricity as the engine runs, which is converted to DC power to charge the battery and supply the vehicle's electrical system. A failing alternator typically presents as a flat battery that will not hold charge, dimming lights under load, or complete electrical failure even with a known good battery.
Manufactured to OEM specification with internal regulator, internal fan, clockwise rotation, V-belt pulley with 75mm outer diameter and 15mm inner diameter, and IG-L T-shaped plug, cross-referencing John Deere OEM part number RE72915 for straightforward identification. Verify your model and year against the fitment table before ordering.
Fitment
| Model | Engine |
|---|---|
| John Deere Gator CS Compact Series | Kawasaki |
| John Deere Gator CX Compact Series | Kawasaki |
Key Features
- Direct OEM-specification replacement alternator
- 12V / 40A output - clockwise rotation - internal fan - internal regulator
- V-belt pulley / 75mm OD / 15mm ID / 16mm belt width - IG-L T-shaped plug
- Covers John Deere Gator CS and CX Compact Series with Kawasaki engine
- Replaces John Deere OEM part numbers RE72915, RE42778, SE501379, and TY6760
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| RE72915 | John Deere |
| RE42778 | John Deere |
| SE501379 | John Deere |
| TY6760 | John Deere |
| TY67060 | John Deere |
| 100211-4700 | Denso |
| 100211-4701 | Denso |
| AND0203 | Arrowhead |
| RA00134 | Delco |
| 12080 | Lester |
| 90-29-5294 | Wilson |
| A-8510 | Dixie |
Specifications
| Specification | Detail |
|---|---|
| Component | Alternator |
| Voltage | 12V |
| Amperage | 40A |
| Rotation | Clockwise |
| Pulley Type | V1 / 75mm OD / 15mm ID / 16mm belt width |
| Fan Type | Internal |
| Regulator | Internal |
| Plug | IG-L T-shaped |
| Application | John Deere Gator CS / CX Compact Series |
| ATV City Part Number | 400-52098 |
| Condition | New |
