Alternator | John Deere 1030 / 1130 / 2240 Tractors | 12V 65A | 197...

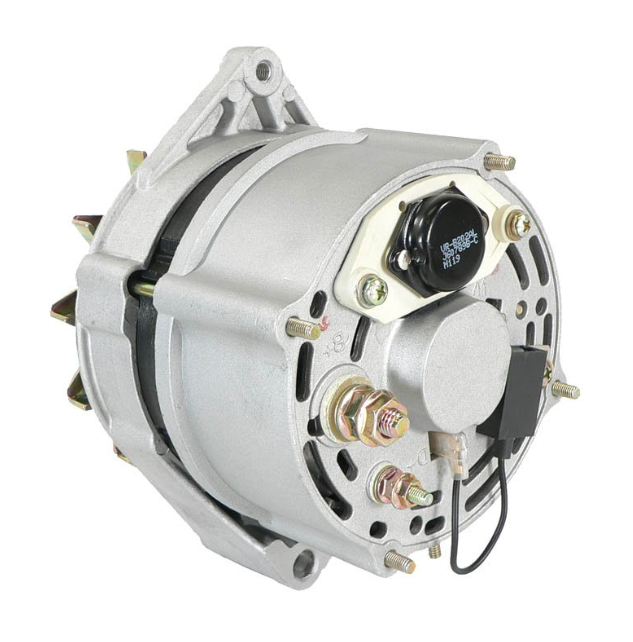

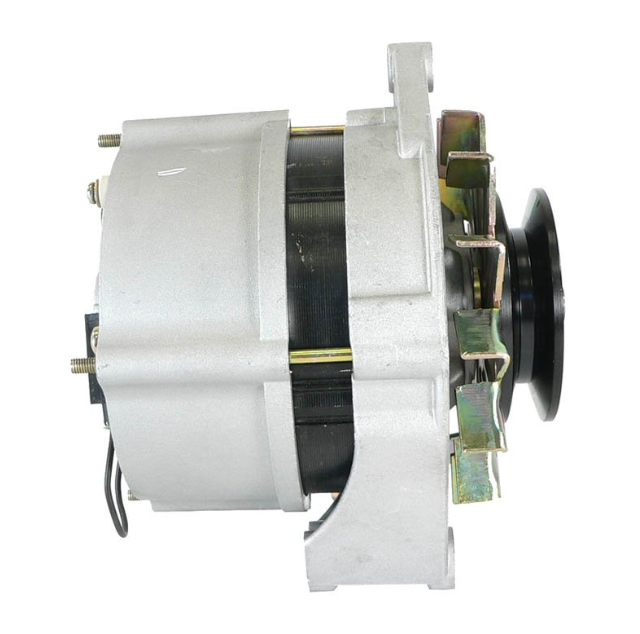

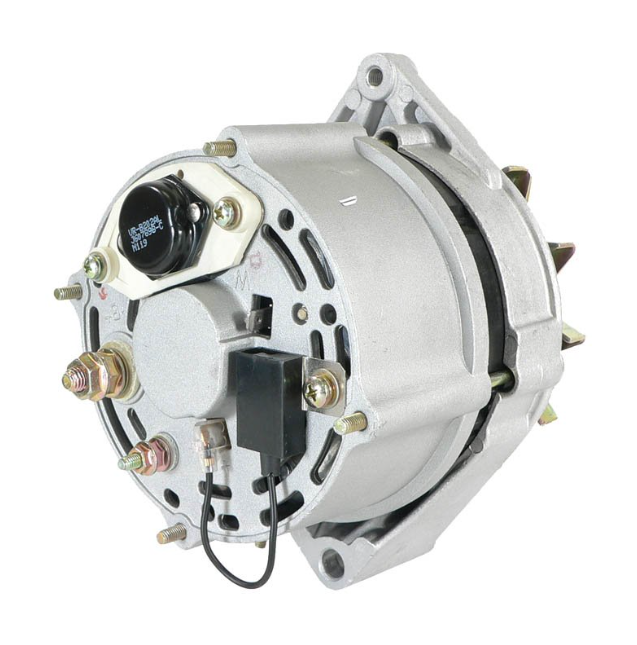

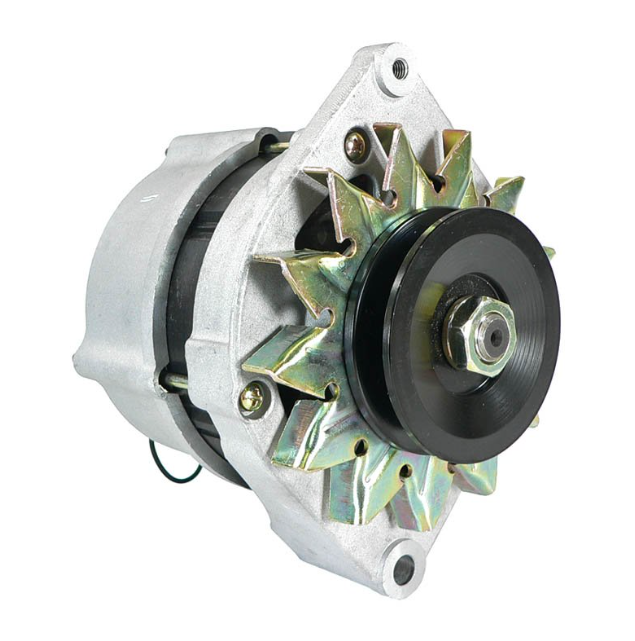

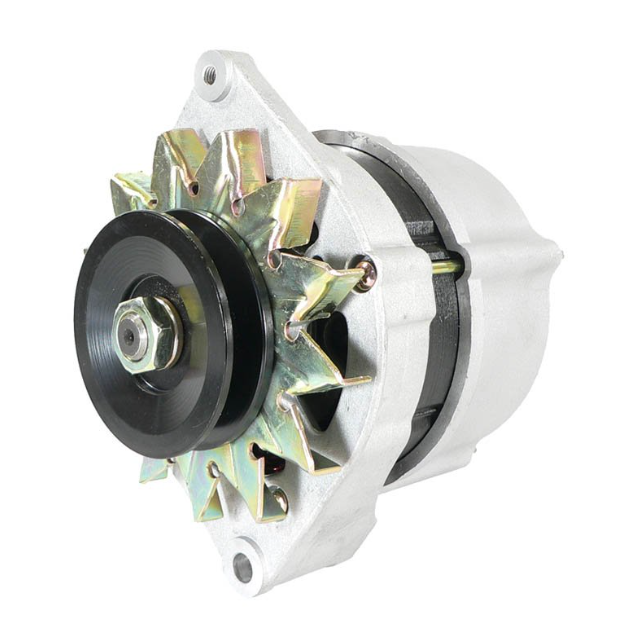

A direct-fit replacement 12V 65A alternator for the John Deere 1030, 1130, and 2240 tractor range produced between 1970 and 1993. The alternator generates AC electricity as the engine runs, which is converted to DC power to charge the battery and supply the vehicle's electrical system. A failing alternator typically presents as a flat battery that will not hold charge, dimming lights under load, or complete electrical failure even with a known good battery.
Manufactured to OEM specification with internal regulator, external fan, and clockwise rotation, cross-referencing John Deere OEM part numbers AL78689 and AL67175 for straightforward identification. Verify your model and year against the fitment table before ordering.
Fitment
| Model | Year Range |
|---|---|
| John Deere 1030 | 1970-1993 |
| John Deere 1130 | 1970-1993 |
| John Deere 2240 | 1970-1993 |
Key Features
- Direct OEM-specification replacement alternator
- 12V / 65A output - clockwise rotation - external fan - internal regulator
- Covers John Deere 1030 / 1130 / 2240 tractors 1970-1993
- Replaces John Deere OEM part numbers AL78689 and AL67175
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| AL78689 | John Deere |
| AL67175 | John Deere |
| 0-120-488-217 / 120488217 | Bosch |
| 0-120-488-218 / 120488218 | Bosch |
| 0-120-488-267 / 120488267 | Bosch |
| AL906X | Bosch |
| ABO0198 / BAL906X / IA0592 / MG277 | Arrowhead |
| DRA7450 | Delco |
| 11.201.592 / AAK1362 / MG277 / IA0592 | Mahle / Letrika / Iskra |
| LRA01703 | Lucas Electric |
| Mar-42 | Marelli |
| 13195 | Lester |
Specifications
| Specification | Detail |
|---|---|
| Component | Alternator |
| Voltage | 12V |
| Amperage | 65A |
| Rotation | Clockwise |
| Fan Type | External |
| Regulator | Internal |
| Application | John Deere 1030 / 1130 / 2240 Tractors |
| Year Range | 1970-1993 |
| ATV City Part Number | 400-24016 |
| Condition | New |
