Alternator - John Deere 648E Skidder / Case IH - 12V 135A is ordered in from the supplier and will be dispatched as soon as it arrives.

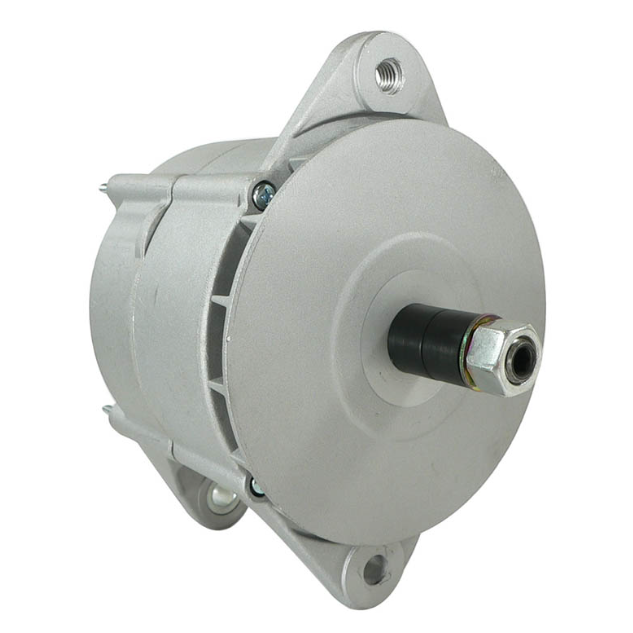

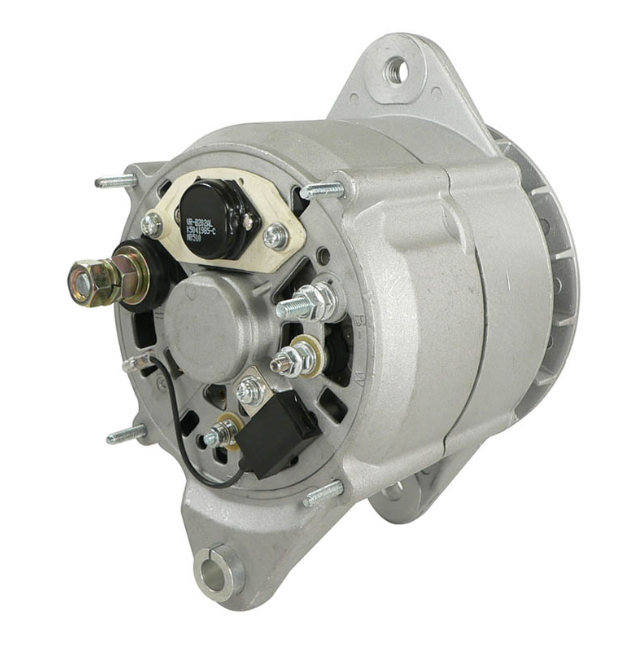

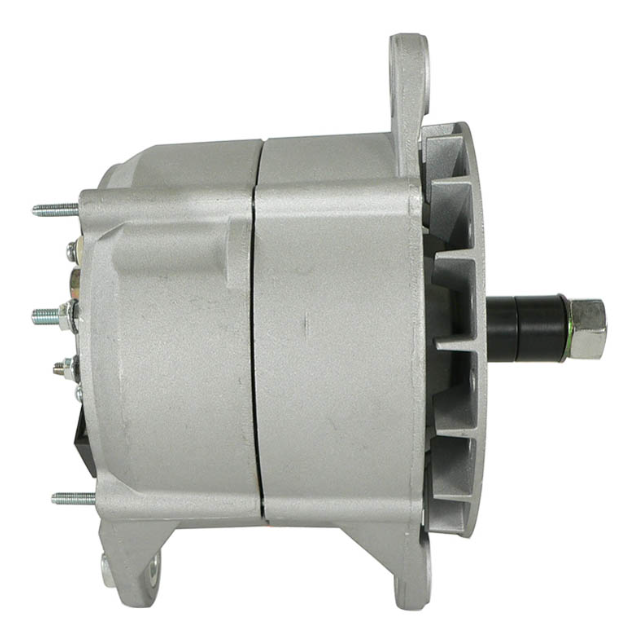

A direct-fit replacement 12V 135A alternator for the John Deere 648E skidder, Case IH agricultural machinery, and associated industrial applications. The alternator generates AC electricity as the engine runs, which is converted to DC power to charge the battery and supply the vehicle's electrical system. A failing alternator typically presents as a flat battery that will not hold charge, dimming lights under load, or complete electrical failure even with a known good battery.
Manufactured to OEM specification with internal regulator, external fan, clockwise rotation, and dual V-belt pulley with 85mm outer diameter and 22mm inner diameter, cross-referencing John Deere OEM part number SE501349 for straightforward identification. Verify your model and year against the fitment table before ordering.
Key Features
- Direct OEM-specification replacement alternator
- 12V / 135A output - clockwise rotation - external fan - internal regulator - 2V pulley / 85mm OD / 22mm ID
- Covers John Deere 648E skidder, Case IH, and Ford / New Holland applications
- Replaces John Deere OEM part numbers SE501349, AT175839, RE36268, TY6773, TY6795, and TY25956
OE Reference Numbers
| OEM Part Number | Manufacturer |
|---|---|
| SE501349 | John Deere |
| AT175839 | John Deere |
| RE36268 | John Deere |
| TY6773 | John Deere |
| TY6795 | John Deere |
| TY25956 | John Deere |
| 125849A1 / 125849A1R | Case IH |
| 86994128 | Ford / New Holland |
| 0-120-468-055 / 120468055 | Bosch |
| AL9941X | Bosch |
| ABO0222 / BAL9941X / IA1169 / MG575 | Arrowhead |
| 11.203.363 / AAN5502 / MG575 / IA1169 | Mahle / Letrika / Iskra |
| LRA03294 | Lucas Electric |
| 12162 | Lester |
Specifications
| Specification | Detail |
|---|---|
| Component | Alternator |
| Voltage | 12V |
| Amperage | 135A |
| Rotation | Clockwise |
| Pulley Type | 2V / 85mm OD / 22mm ID |
| Fan Type | External |
| Regulator | Internal |
| Application | John Deere 648E Skidder / Case IH / Ford / New Holland |
| Part Number | 400-24055 |
| Condition | New |
