KFI Winch Mount - John Deere Gator XUV835E 835M 835R 865E 865M is ordered in from the supplier and will be dispatched as soon as it arrives.

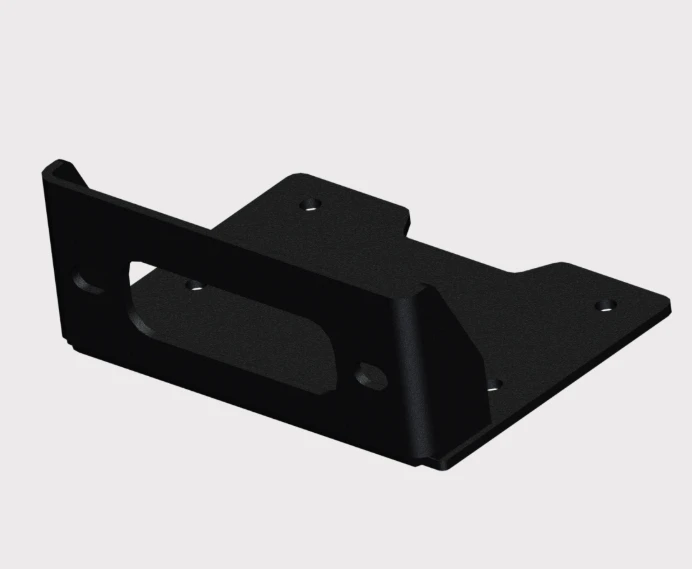

Sturdy winch mount designed for a popular utility vehicle lineup, built to handle wide-pattern winches with a 3.00" x 6.60" bolt circle. Constructed from 3/16" steel, bead blasted prior to powder coating, and finished in durable black for long-lasting use. Complete installation instructions and all mounting hardware are included; roller fairlead and winch are not included. This mount is specifically designed to fit wide-pattern winches and will not work with the standard 3.00" x 4.875" bolt pattern. It is compatible with a wide range of 375.SE45W-R2-type winches and similar models. 100% MADE IN USA.
What's Included
Included components in the box:
- Winch Mount
- Mounting Hardware
- Installation Instructions
Not included: roller fairlead and winch.
Fitment
| Manufacturer | Models / Series | Years / Details |
|---|---|---|
| John Deere | Gator XUV 835E | All Years |
| John Deere | Gator XUV 835M | All Years |
| John Deere | Gator XUV 835R | All Years |
| John Deere | Gator XUV 865E | All Years |
| John Deere | Gator XUV 865M | All Years |
| John Deere | Gator XUV 865R | All Years |
Fitment confirmed for wide-bolt-pattern winches and the listed Gator XUV835/865 series models, including the 835E, 835M, 835R, 865E, 865M, and 865R variants. This alignment ensures a secure, reliable mounting solution when upgrading or replacing an aging mount.
Specifications
| Attribute | Details |
|---|---|
| OEM Reference Part Numbers | N/A |
| Type | Winch Mount |
| Manufacturer | Aftermarket Replacement |
| Application | Wide bolt pattern winches 3.00" x 6.60" (4-Hole); fits vehicle models in the XUV835/865 family |
| Material | 3/16" steel |
| Finish | Bead blasted prior to powder coating; powder coated black |
| Made in USA | Yes |
| Mounting hardware included | Yes |
| Winch compatibility | KFI U45w-R2 / SE45w-R2 / AS-50w; wide-pattern winches from multiple brands |
| Bolt Pattern | 3.00" x 6.60" (4-Hole) |
Note: This mount will NOT work with the standard 3.00" x 4.875" bolt pattern. It is designed to work with wide-bolt-pattern winches like 3.00" x 6.60".
| Attribute | Details |
|---|---|
| OEM Reference Part Numbers | N/A |
| Type | Winch Mount |
| Manufacturer | Aftermarket Replacement |
| Application | Wide pattern winches, 3.00" x 6.60" bolt circle |
| Material | 3/16" steel |
| Dimensions | Mounted for 3.00" x 6.60" bolt pattern (4-Hole) |
| Finish | Bead blasted finish pre-coating; powder coated black |
| Made in | USA |
| Included Hardware | All mounting hardware |
| Compatible Winches (example) | KFI U45w-R2 / SE45w-R2 / AS-50w; compatible with other 3.00" x 6.60" wide-pattern units |
Details pulled from manufacturer and retailer listings, including the wide-bolt-pattern specification and listed winches.
Cross-reference data drawn from KFI mounting catalogs and retailer product pages, confirming compatibility with 3.00" x 6.60" wide-pattern winches and listing supported models and patterns.
Installation Notes
- Verify the mounting surface is clean, rust-free, and free of debris before installation.
- Confirm the winch bolt pattern is the 3.00" x 6.60" wide pattern before mounting.
- Disconnect the vehicle battery and isolate electrical circuits when wiring the winch mount.
- Use a criss-cross sequence when tightening bolts to evenly distribute load; apply threadlocker if recommended by the winch manual.
- Check clearances to ensure the rope path will not rub on the frame, bumper, or other components.
- After initial test, recheck all mounting bolts for tightness and ensure smooth operation with no binding.
