Winch Mount - KFI - Honda Pioneer 500 / 520 (2015-2024) is ordered in from the supplier and will be dispatched as soon as it arrives.

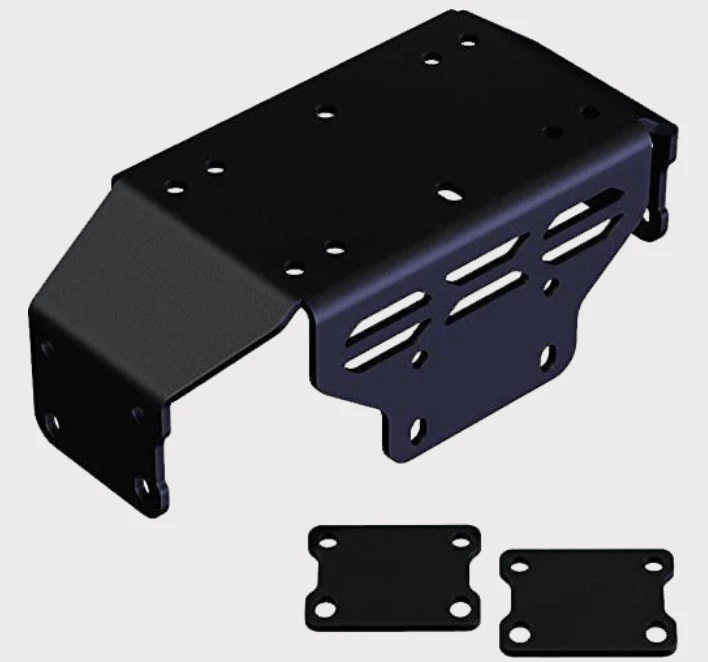

This winch mount plate is designed to securely attach a standard bolt-pattern winch to the Pioneer 500 and Pioneer 520 UTVs (years 2015 - 2024). Constructed from heavy-gauge steel with a durable powder-coated finish, it preserves mounting geometry for reliable pulls and minimizes interference with surrounding components. The design supports a clean, installation-friendly fit that maintains factory lines and bumper clearance.
What's Included
What’s included with this kit:
- Winch Mount Plate
- Hardware Kit
- Installation Instructions
Note: Related parts not included - the winch, wiring harness, and any plow components (if applicable).
OEM & Aftermarket Cross-Reference Information
| Part Number | Brand / Type | Cross-Reference Notes |
|---|---|---|
| 101215 | KFI Winch Mount | Primary aftermarket mount; compatible with Pioneer 500/520; cross-references to listed winches per catalog; OEM references not published. |
Specifications
| Attribute | Details |
|---|---|
| OEM Reference Part Numbers | N/A (OEM references not publicly published for this aftermarket mount; KFI part number is the kit identifier) |
| Type | Winch Mount Plate |
| Manufacturer | KFI |
| Application | Pioneer 500 (2015 - 2023), Pioneer 520 (2021 - 2024) |
| Material | Heavy-gauge steel |
| Finish | Powder-coated black |
| Bolt Pattern Compatibility | Standard 3.00" x 4.875" winch mounting pattern |
| Mounting Style | Front bumper/frame-mount plate |
| Weight | Not specified by manufacturer |
Compatibility and mounting details are drawn from the manufacturer application guides and catalog listings.
Bolt pattern confirmation: 3.00" x 4.875" (standard for many mid-frame winches) per fitment charts.
Installation Notes
- Disconnect the battery ground before starting the installation to prevent accidental short circuits.
- Support the winch and plate during mounting to prevent lifting injuries and protect threads.
- Align mounting holes carefully with the chassis and frame mounting points; start all bolts by hand to ensure proper threading.
- Use the supplied hardware and washers; avoid over-tightening to prevent thread stripping or mounting distortion.
- Check for clearance with the bumper, grill, radiator, and suspension components; adjust as needed before final torqueing.
- After installation, cycle the winch without load to confirm smooth operation and re-torque fasteners to manufacturer specifications if applicable.
