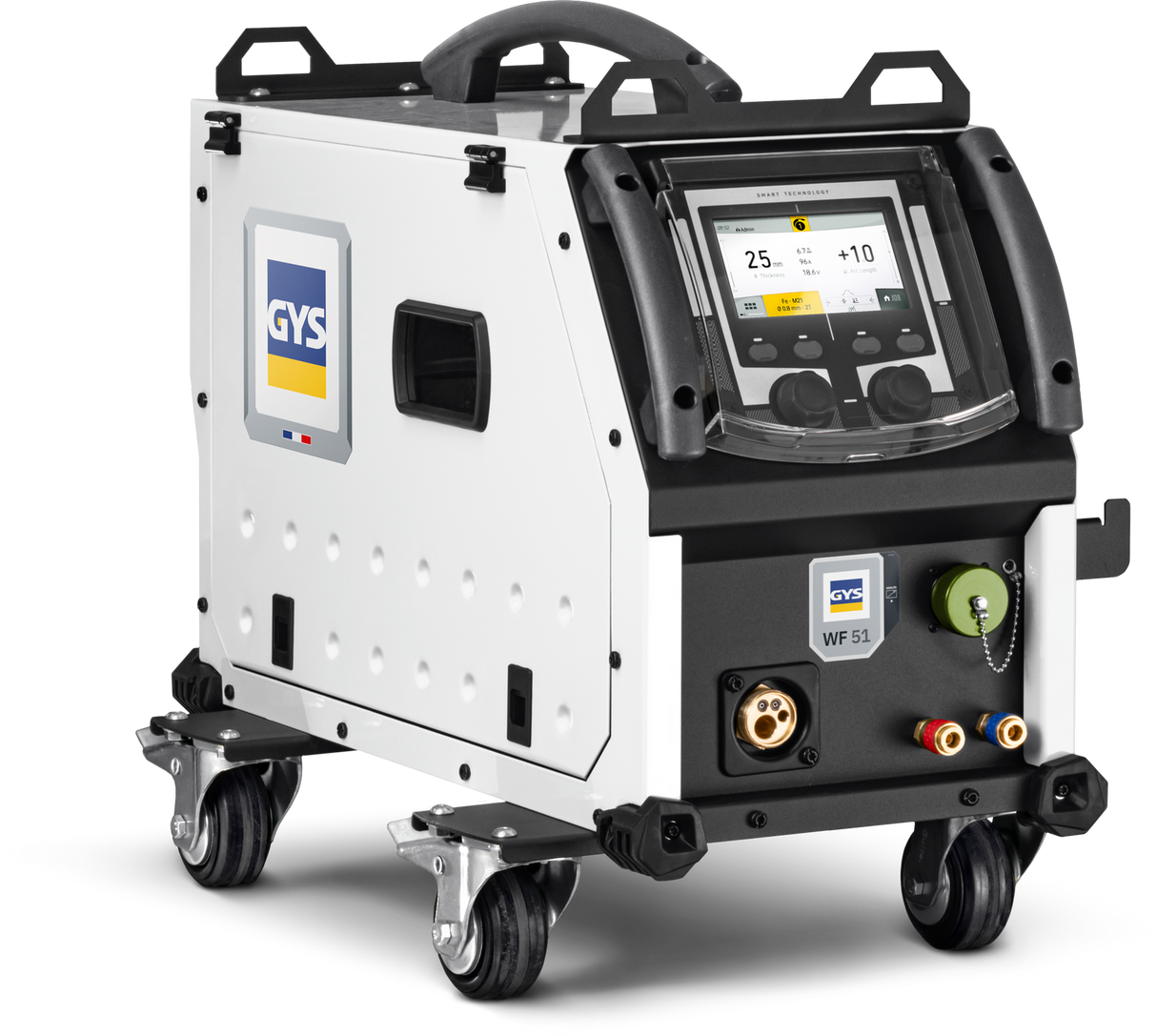

The GYS WF 51 is a separate wire feed unit compatible with COSMOS power sources, fitted with a 4-roller motor with encoder control for consistent wire feed regardless of wire type used. Built with a robust construction and 4 castors for easy movement around the workshop floor or at height, it is designed for durability in industrial environments.

The unit features a 5-inch colour display with two interface modes: "Easy" for simplified setup and "Expert" for advanced settings. It supports more than 70 synergic programs across steel, AlMg, AlSi, and CrNi materials, with settings optimised after entering material/gas, wire diameter, and welding mode.

Key Features

• 4-roller motor with encoder control for consistent wire feed
• 5-inch colour display with Easy and Expert interface modes
• 70+ synergic programs across steel, AlMg, AlSi, and CrNi materials
• Storage for up to 200 welding programs (jobs)
• Full power source and synergy updates via USB
• USB portability for loading/saving/documenting user jobs and machine configuration
• Weld traceability to EN 3834
• Calibration mode for welding accessories to adjust displayed voltage
• Multi-user mode for shared use across several welders
• Intelligent wire feed with torch length management
• Compatible with push-pull torches (24V)
• LED lighting on wire feed drive and spool viewing window
• Large roller diameter (Ø 37mm) for optimal wire feed
• Tool-free, colour-coded roller change for quick wire diameter switching
• Optional flow meter kit (073395) for precise torch gas flow control
• Integrated torch holder
• IP23 protection class for demanding environments

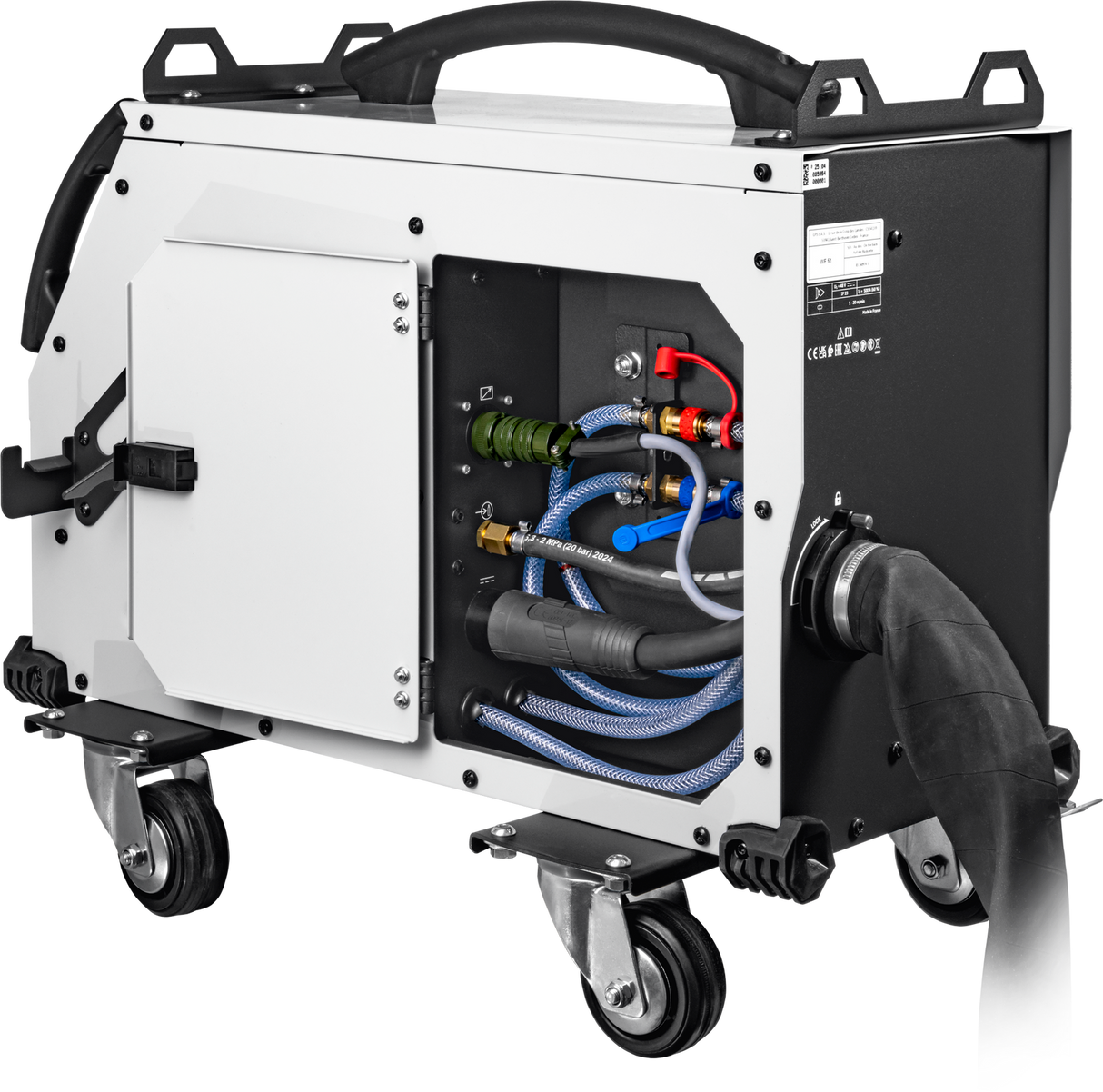

• Internally routed cable harnesses for protection
