Joint - Arctic Cat 400 / 500 / 650 / 700 Universal - Front
Joint - Arctic Cat 400 / 500 / 650 / 700 Universal - Front is backordered and will ship as soon as it is back in stock.

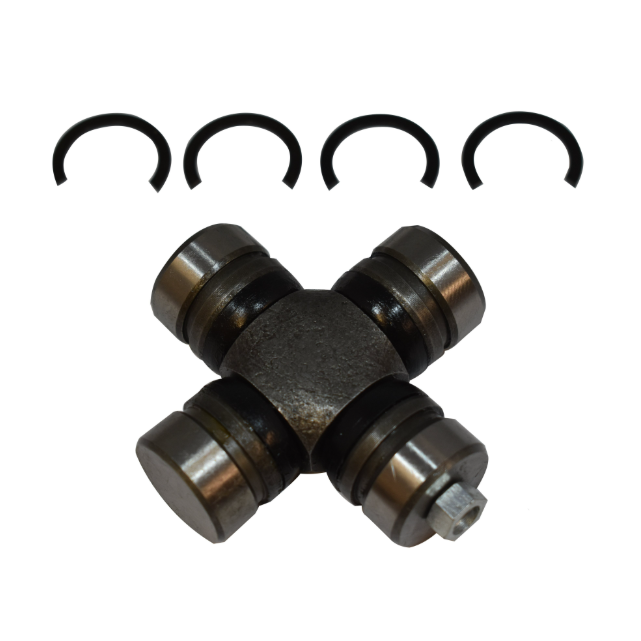

This front and secondary driveshaft universal joint is a direct OEM-specification replacement for the Arctic Cat 400, 500, 650, and 700 range, covering 4x4 standard, FIS, TBX, TRV, DVX, Mud Pro, and Diesel variants from 2002 to 2017. It restores reliable power transmission to standard specification and requires no modification for fitment.
Manufactured from premium-grade materials for reliable performance and long-lasting durability, this U-joint cross-references two Arctic Cat OEM part numbers and features a single lube fitting in bearing-flush configuration with inside snap ring retention.
Key Features
- Direct OEM-specification replacement front and secondary driveshaft universal joint
- Suits Arctic Cat 400 / 500 / 650 / 700 across 4x4, FIS, TBX, TRV, DVX, Mud Pro, and Diesel variants
- Covers 376cc, 398cc, 493cc, 633cc, 641cc, 686cc, and 695cc engine displacements
- Spans 2002 to 2017 model years
- Cross-references two Arctic Cat OEM part numbers
- Inside snap ring retention with single lube fitting (bearing-flush)
- Premium materials for durability in all-terrain applications
- No modification required - like-for-like fitment
Fitment
| Model | Year Range |
|---|---|
| Arctic Cat 400 2WD / 4x4 / DVX / FIS / TBX / TRV (376cc / 398cc) | 2003 - 2008 |
| Arctic Cat 500 4x4 Auto / Manual / FIS / TBX / TRV (493cc) | 2002 - 2009 |
| Arctic Cat 650 V-2 / H1 4x4 / FIS / TBX / TRV (633cc / 641cc) | 2004 - 2011 |
| Arctic Cat 650 Prowler XT (641cc) - Front & Secondary Driveshaft | 2006 |
| Arctic Cat 700 FIS / FIS EFI (695cc) | 2006 - 2008 |
| Arctic Cat 700 H1 EFI / GT / LTD / XT (695cc) | 2008 - 2014 |
| Arctic Cat 700 TBX / TRV / TRV Cruiser / GT / LTD / XT (695cc) | 2008 - 2015 |
| Arctic Cat 700 Mud Pro / LTD (695cc) | 2012 - 2015 |
| Arctic Cat 700 XR / LTD / XT (695cc) | 2015 |
| Arctic Cat 700 TRV Alterra XT EPS / TBX EPS / Mud Pro LTD EPS (695cc) | 2017 |
| Arctic Cat 700 Diesel (686cc) | 2007 - 2015 |
| Arctic Cat 700S H1 EFI / LE / TBX / TRV (695cc) | 2010 - 2011 |
OE Reference Numbers
| OEM Part Number | Manufacturer |
|---|---|
| 0402-944 | Arctic Cat |
| 0423-395 | Arctic Cat |
Specifications
| Specification | Detail |
|---|---|
| Component | Universal Joint |
| Position | Front & Secondary Driveshaft |
| Application | Arctic Cat 400 / 500 / 650 / 700 |
| Bearing Diameter | 0.789 in |
| Stack-Up Dimension | 1.572 in |
| Cross Trunnion Diameter | 0.432 in |
| Cross Span | 2.007 in |
| Snap Ring Style | Inside Snap Rings |
| Snap Ring Thickness | 0.058 in |
| Lube Fitting | 1 - Bearing Flush |
| Engine Variants | 376cc / 398cc / 493cc / 633cc / 641cc / 686cc / 695cc |
| Year Range | 2002 - 2017 |
| Condition | New |
