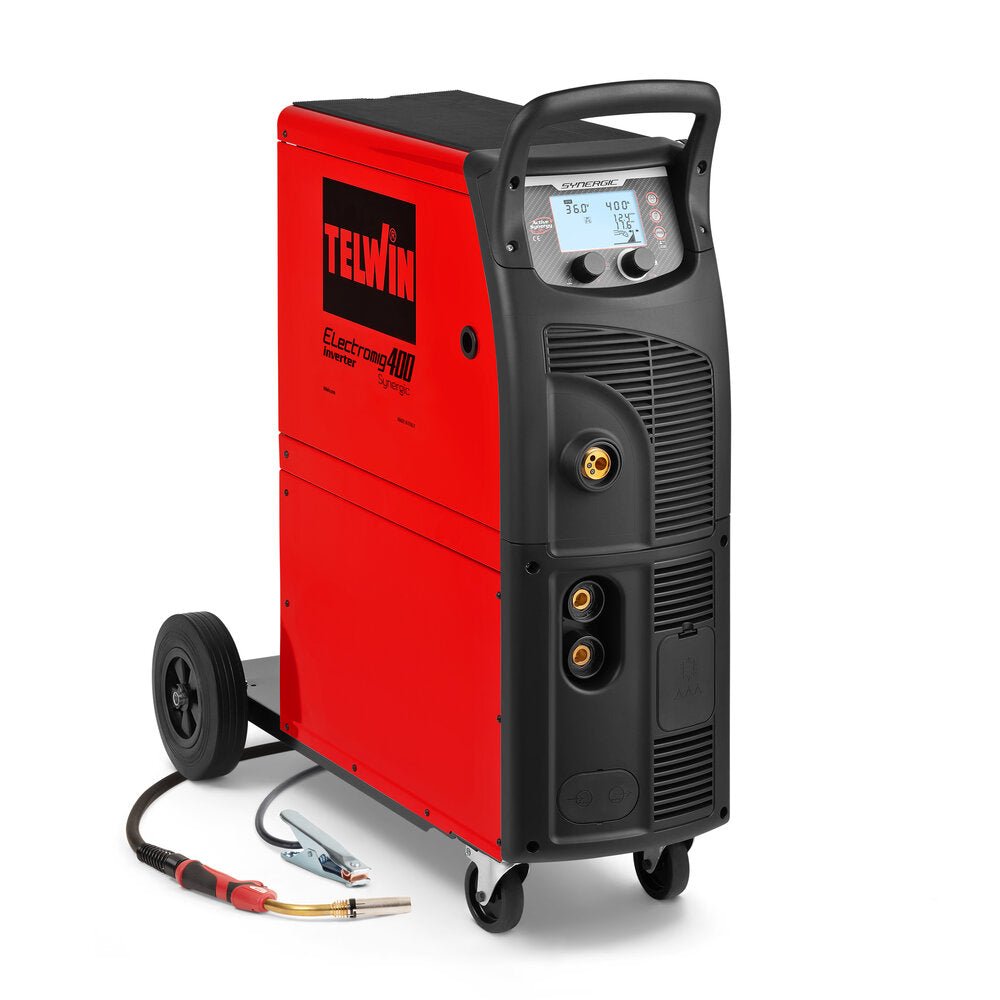

The Telwin Electromig 400 Synergic is a multi-process welding machine with inverter technology, supporting MIG/MAG, flux, brazing, MMA, and TIG DC-Lift with microprocessor control and a 4-roller wire feed system. It offers flexible use across welded materials (steel, stainless steel, aluminium) and braze-welded materials (galvanised sheets), suiting a wide range of applications in industry, maintenance, assembly, and bodywork repairs.

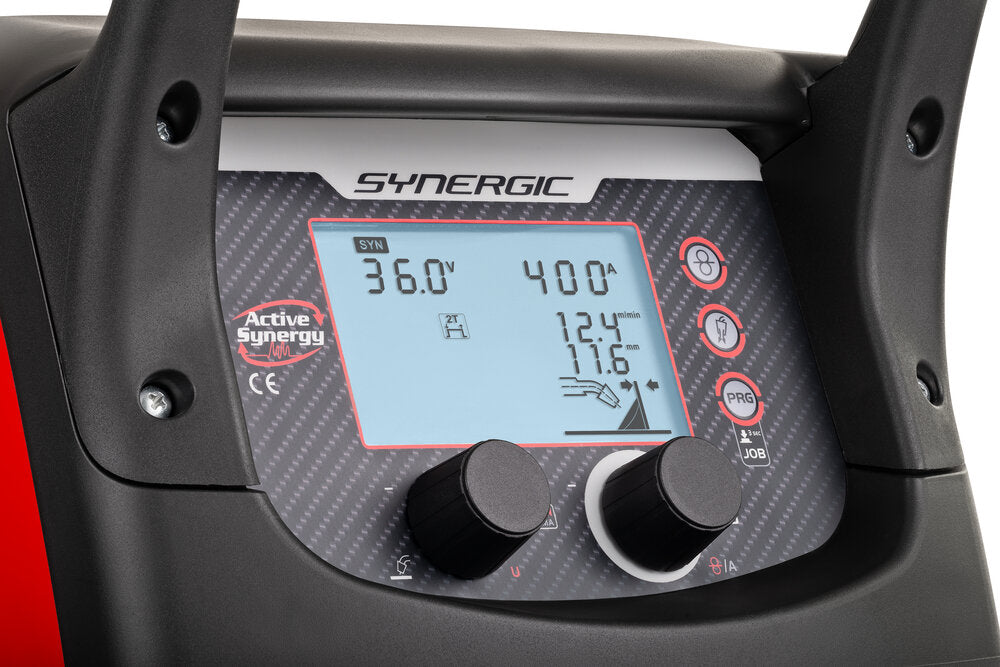

Synergistic settings make the unit straightforward to operate, while Telwin's ATC technology uses advanced arc control to achieve excellent welding results on thin-walled materials with ease. The unit offers manual and synergic operation with 30 preset synergy curves, adjustable MIG/MAG settings including wire speed start ramp, electronic reactance, burn-back time, and post-gas flow, plus 2/4-stroke and spot operation with material thickness selectable in inches or mm. It includes TIG lift capability, complete with MIG/MAG torch, earth cable, and earth clamp.

Key Features

• Multi-process welder: MIG/MAG, flux, brazing, MMA, TIG DC-Lift
• Microprocessor control with 4-roller wire feed system
• Manual and synergic operation, 30 preset synergy curves
• Telwin ATC technology for advanced arc control on thin-walled materials
• Adjustable wire feed start ramp, electronic reactance, burn-back time, post-gas flow
• 2/4-stroke and spot operation, material thickness selectable in inches or mm
• Thermostat, overvoltage, undervoltage, overcurrent, and motor/generator protection (+/-15%)
• TIG lift capability

Included with Delivery

• 1x MIG/MAG torch
• 1x earth cable
• 1x earth clamp
