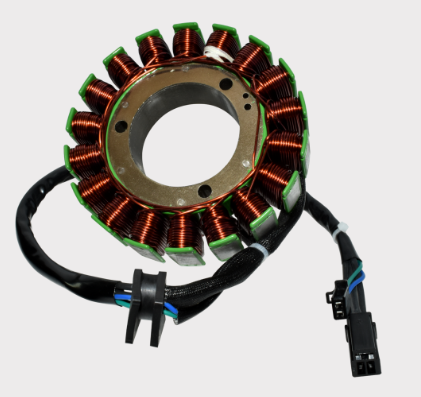

This generator stator is a direct replacement for the Suzuki V-Strom 1000 DL1000 motorcycle, covering 2002 to 2009 and 2012 model years. It restores correct charging and ignition system output to standard specification with no modification required.
Manufactured from premium materials for consistent performance and long service life, this unit replaces Suzuki OEM references 32101-06G10 and 32101-06G11 and is a dependable aftermarket solution for servicing the Suzuki V-Strom 1000.
Fitment
| Model | Year Range |
|---|---|
| Suzuki V-Strom 1000 DL1000 | 2002–2009 / 2012 |
Key Features
| Feature | Detail |
|---|---|
| Component | Generator Stator |
| Poles | 18 |
| Wires / Plugs / Pins | 5 / 2 / 5 |
| OEM References | Replaces Suzuki 32101-06G10 and 32101-06G11 |
| Fitment | Direct replacement — no modification required |
| Components | Premium materials for long service life |
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 32101-06G10 | Suzuki |
| 32101-06G11 | Suzuki |
Stator Specifications
| Specification | Detail |
|---|---|
| Interior Diameter | 54mm |
| Exterior Diameter | 119mm |
| Thickness | 28mm |
| Wire Length (stator to grommet) | 160mm |
| Wire Length (grommet to plug) | 430mm |
| Pickup Coil Wire Length (to grommet) | 150mm |
| Poles | 18 |
| Wires / Plugs / Pins | 5 / 2 / 5 |
| Resistance (black to black) | 0.4Ω ±20% |
| Resistance (black to ground) | O.L |
| Pickup Resistance (blue to green) | 200Ω ±20% |
Specifications
| Specification | Detail |
|---|---|
| Component | Generator Stator |
| Application | Suzuki V-Strom 1000 DL1000 |
| Year Range | 2002–2009 / 2012 |
| Condition | New |
