Generator Stator - Suzuki DL1000 V-Strom (2014-2019)
£174.96 excl VAT
Generator Stator - Suzuki DL1000 V-Strom (2014-2019) is ordered in from the supplier and will be dispatched as soon as it arrives.

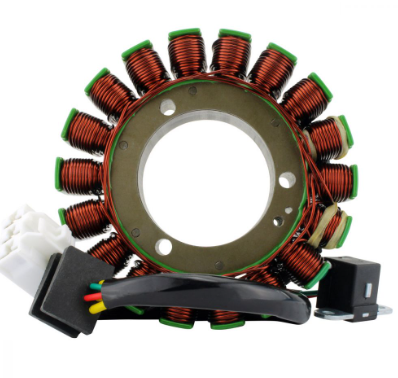

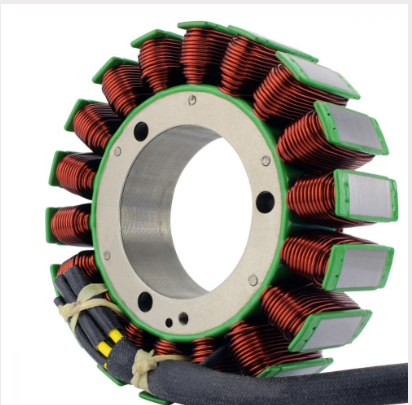

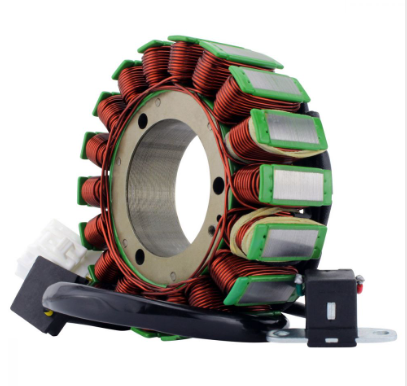

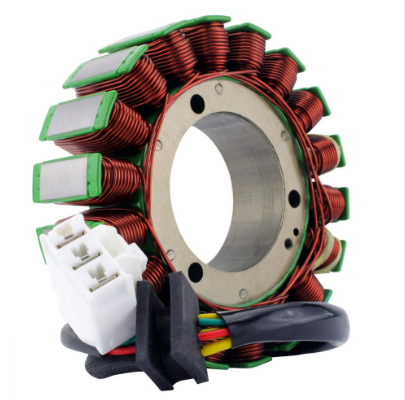

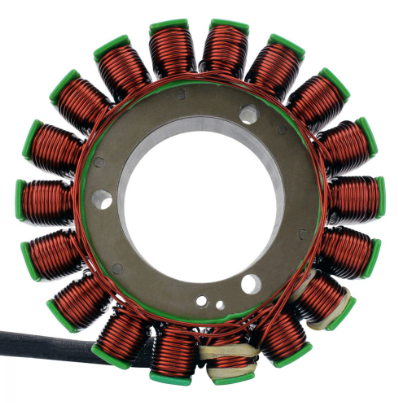

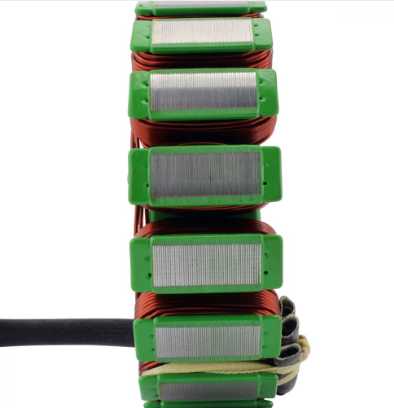

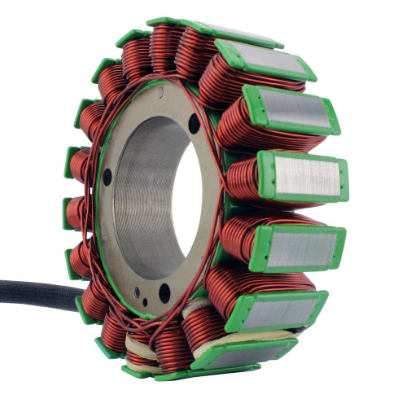

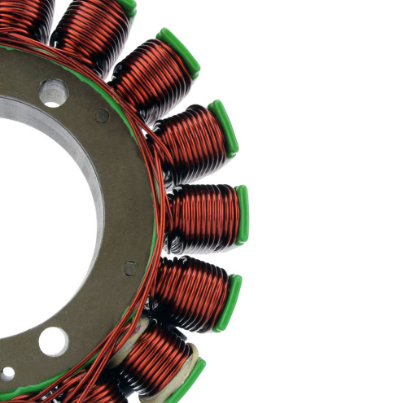

This generator stator is a direct replacement for the Suzuki DL1000 V-Strom motorcycle, covering 2014 to 2019 model years. It restores correct charging and ignition system output to standard specification with no modification required.
Manufactured from premium materials for consistent performance and long service life, this unit replaces Suzuki OEM reference 32101-31J00 and is a dependable aftermarket solution for servicing the Suzuki DL1000 V-Strom.
Key Features
| Feature | Detail |
|---|---|
| Component | Generator Stator |
| Poles | 18 |

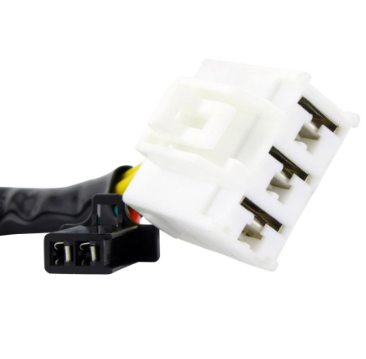

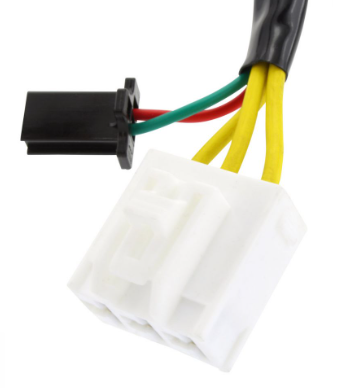

| Wires / Plugs / Pins | 5 / 2 / 5 |
| OEM Reference | Replaces Suzuki 32101-31J00 |
| Fitment | Direct replacement - no modification required |
| Components | Premium materials for long service life |
Stator Specifications
| Specification | Detail |
|---|---|
| Interior Diameter | 54mm |
| Exterior Diameter | 119mm |
| Thickness | 26mm |

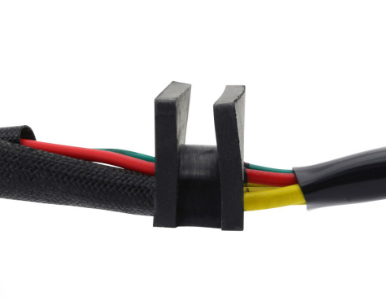

| Wire Length (stator to grommet) | 170mm |
| Wire Length (grommet to plug) | 270mm |

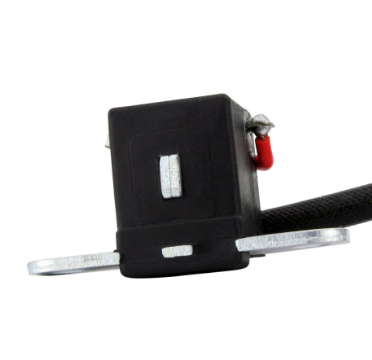

| Pickup Coil Wire Length (to grommet) | 150mm |
| Poles | 18 |
| Wires / Plugs / Pins | 5 / 2 / 5 |
| Resistance (yellow to yellow) | 0.6Ω ±20% |
| Resistance (yellow to ground) | O.L |
| Pickup Resistance (green to red) | 192Ω ±20% |
Fitment
| Model | Year Range |
|---|---|
| Suzuki DL1000 V-Strom | 2014 - 2019 |
OE Reference Numbers
| OEM Part Number | Manufacturer |
|---|---|
| 32101-31J00 | Suzuki |
Specifications
| Specification | Detail |
|---|---|
| Component | Generator Stator |
| Application | Suzuki DL1000 V-Strom |
| Year Range | 2014 - 2019 |
| Condition | New |
