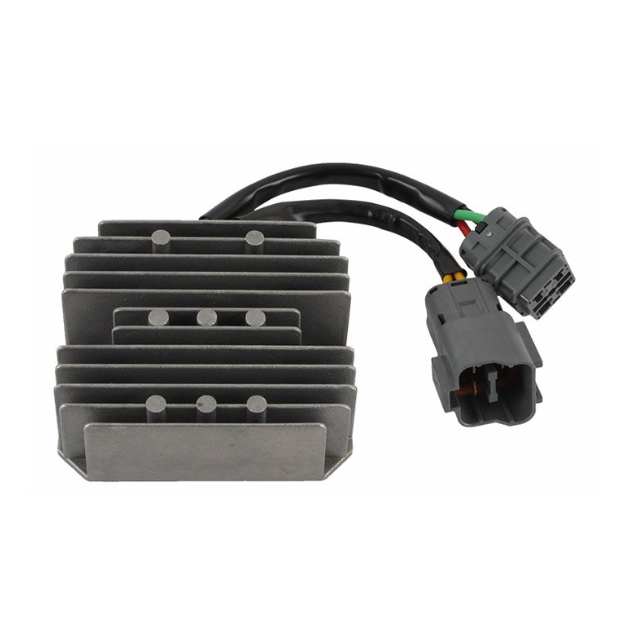

Regulator Rectifier – Yamaha Grizzly 300 YFM300 | 2012–2013
A direct-fit replacement regulator rectifier for the Yamaha Grizzly 300 (YFM300) produced in 2012 and 2013. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to OEM specification and cross-referencing Yamaha OEM part numbers 1SC-H1960-00-00 and 1SC-H1960-01-00 for straightforward identification. Verify your model and year before ordering.
Fitment
| Model | Year Range |
|---|---|
| Grizzly 300 (YFM300) | 2012–2013 |
Key Features
- Direct OEM-specification replacement regulator rectifier
- Covers Yamaha Grizzly 300 YFM300
- Year range 2012–2013
- Replaces OEM part numbers 1SC-H1960-00-00 and 1SC-H1960-01-00
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 1SC-H1960-00-00 | Yamaha |
| 1SC-H1960-01-00 | Yamaha |
| AYA6059 | Arrowhead |
Specifications
| Specification | Detail |
|---|---|
| Component | Regulator Rectifier |
| Voltage | 12V |
| Length | 93.5mm |
| Width | 80mm |
| Thickness | 33mm |
| Plug 1 | 3 yellow wires (charging coil), 280mm |
| Plug 2 | 1 red / 1 green / 1 brown / 1 empty, 200mm |
| Application | Yamaha Grizzly 300 YFM300 |
| Year Range | 2012–2013 |
| Condition | New |
