Regulator Rectifier – Yamaha YFM 660 Grizzly / YFM 700R Raptor / YF...

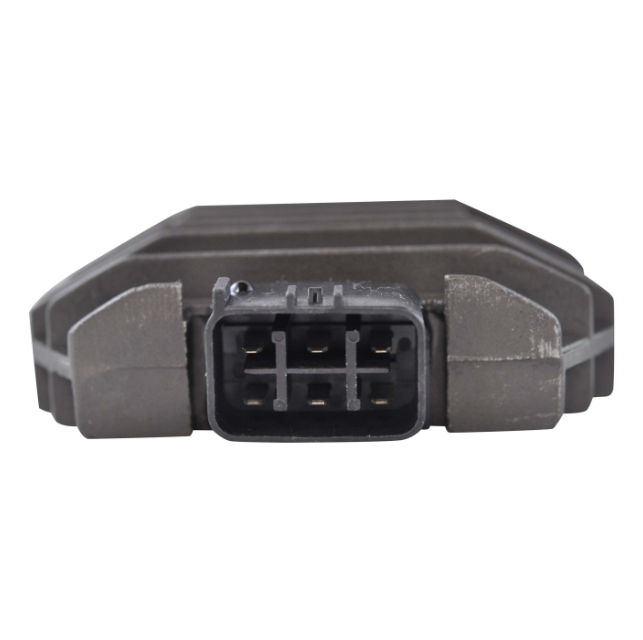

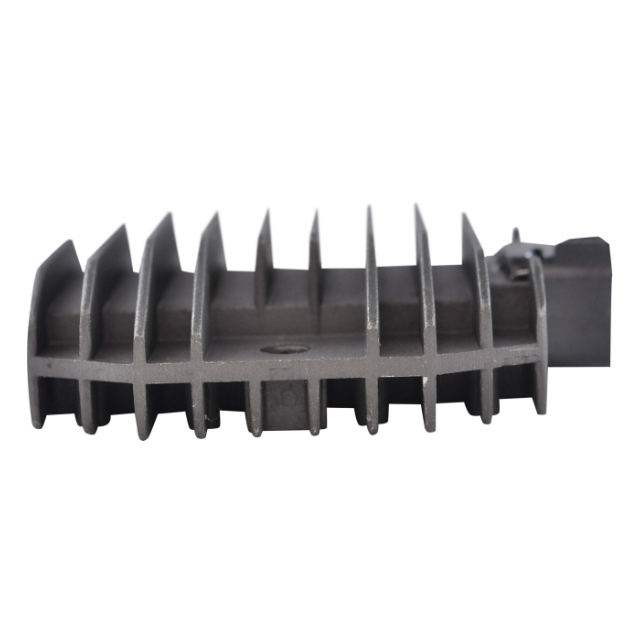

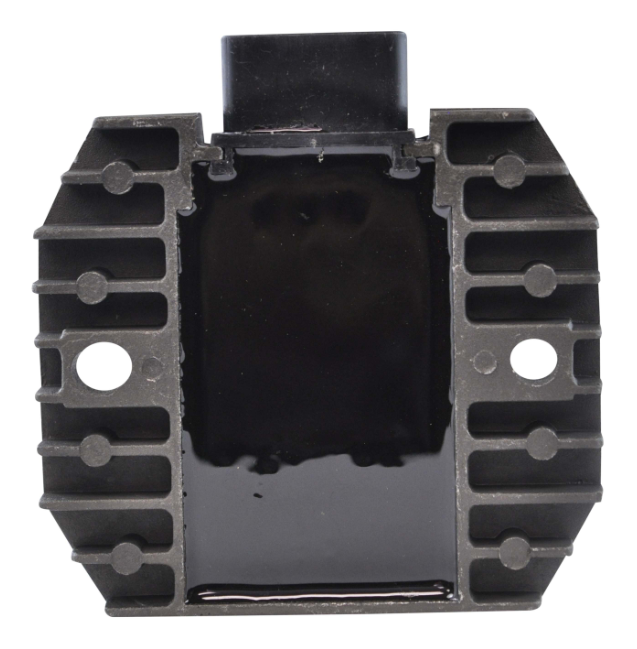

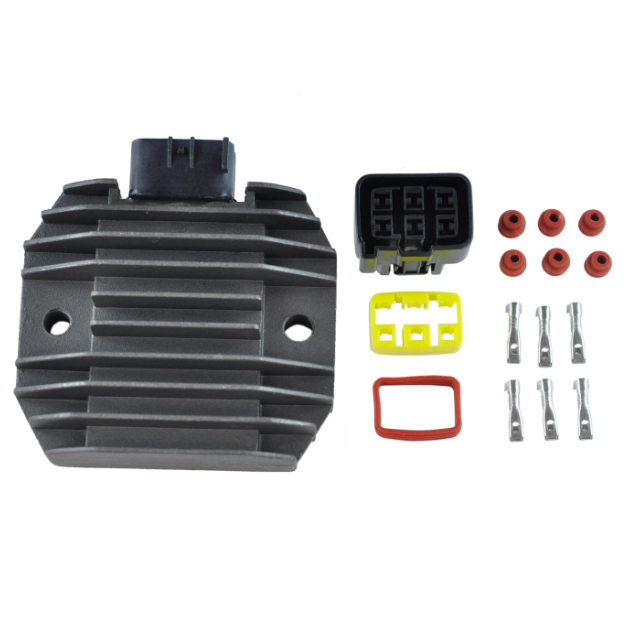

A direct-fit replacement regulator rectifier for the Yamaha YFM 660 Grizzly, YFM 700R Raptor, YFZ 450, YFZ 450R, YXR 450 Rhino, and YXR 660 Rhino ATV and UTV range, and the Suzuki LTA 400 KingQuad and LTF 400 KingQuad produced between 2002 and 2020. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to OEM specification and cross-referencing Yamaha OEM part number 5BN-81960-00-00 and Suzuki OEM part numbers 32800-20H00 and 32800-14G00 for straightforward identification. Verify your model and year against the fitment table before ordering.
Fitment
Suzuki – ATV
| Model | Year Range |
|---|---|
| LTA 400 KingQuad | 2010–2013 |
| LTF 400 KingQuad | 2008–2013 |
Yamaha – ATV and UTV
| Model | Year Range |
|---|---|
| YFM 660 Grizzly | 2002–2008 |
| YFM 700R Raptor | 2006–2020 |
| YFZ 450 | 2010–2011 |
| YFZ 450R | 2009–2020 |
| YXR 450 Rhino | 2006–2009 |
| YXR 660 Rhino | 2004–2007 |
Key Features
- Direct OEM-specification replacement regulator rectifier
- Covers Yamaha YFM 660 Grizzly, YFM 700R Raptor, YFZ 450 / 450R, YXR 450 / 660 Rhino, and Suzuki LTA / LTF 400 KingQuad variants
- Year range 2002–2020
- Replaces OEM part numbers 5BN-81960-00-00, 32800-20H00, and 32800-14G00
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 5BN-81960-00-00 | Yamaha |
| 32800-14G00 | Suzuki |
| 32800-20H00 | Suzuki |
| AYA6016 | Arrowhead |
Specifications
| Specification | Detail |
|---|---|
| Component | Regulator Rectifier |
| Voltage | 12V |
| Number of Plugs | 1 |
| Number of Pins | 6 |
| Width | 89mm |
| Length | 91mm |
| Height | 27mm |
| Fixation Hole Centre to Centre | 65mm |
| Application | Yamaha YFM / YFZ / YXR |
| Year Range | 2002–2020 |
| ATV City Part Number | RM30809 |
| Condition | New |
