MOSFET Regulator Rectifier – Polaris Sportsman 500 / 700 / 800 / Ra...

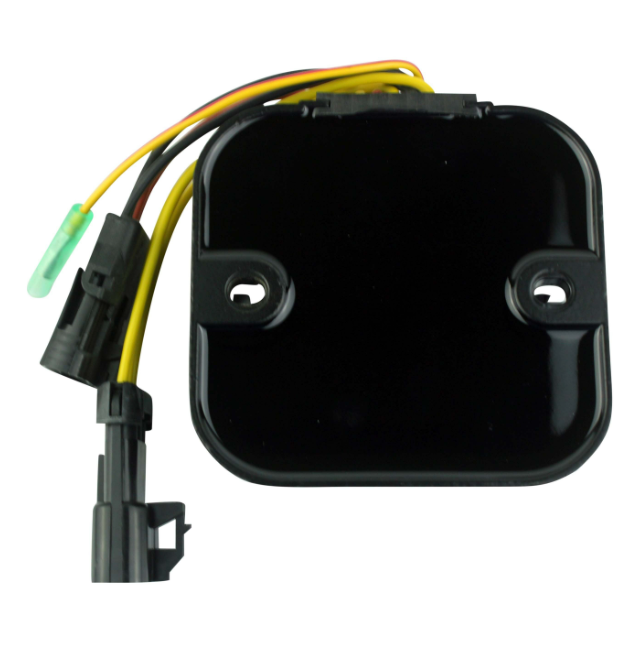

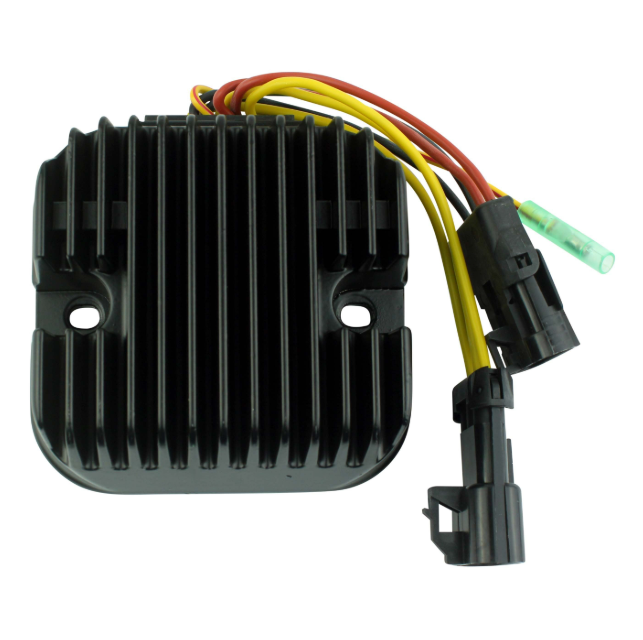

An advanced MOSFET-type replacement regulator rectifier for a range of Polaris Sportsman, Ranger, and RZR models produced between 2007 and 2010. Unlike conventional diode-style regulators, this MOSFET design runs significantly cooler, handles up to 50A peak and 30A continuous output, and features built-in overheat protection — temporarily shutting off to cool down rather than burning out. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to exceed OEM specification using higher-grade electrical components and an improved heat sink. Cross-references three Polaris OEM part numbers for straightforward identification. Verify your model and year against the fitment table before ordering.
Fitment
| Model | Year Range |
|---|---|
| Ranger 500 EFI 4x4 | 2008–2009 |
| Ranger 700 | 2007–2009 |
| Ranger 700 6x6 EFI | 2007–2008 |
| Ranger 700 XP | 2007 |
| Ranger Crew 700 | 2008–2009 |
| RZR 800 EFI | 2008–2009 |
| RZR 800 S | 2009 |
| Sportsman 500 | 2008–2009 |
| Sportsman 500 HO EFI | 2008 |
| Sportsman 500 Touring | 2008–2009 |
| Sportsman 700 EFI | 2007 |
| Sportsman 800 Big Boss | 2010 |
| Sportsman 800 EFI | 2007–2009 |
| Sportsman 800 HO | 2008–2009 |
| Sportsman 800 INTL | 2007 |
| Sportsman 800 Touring | 2008–2009 |
| Sportsman X2 500 | 2008–2009 |
| Sportsman X2 700 | 2008 |
| Sportsman X2 800 | 2007–2009 |
Key Features
- Advanced MOSFET design — runs cooler than OEM diode-style regulators
- Handles up to 50A peak / 30A continuous 3-phase, or 30A single-phase
- Built-in overheat protection — shuts off temporarily rather than burning out
- Covers Polaris Sportsman 500 / 700 / 800, Ranger 500 / 700, and RZR 800 variants
- Year range 2007–2010
- Replaces OEM part numbers 4011925, 4012384, and 4011569
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 4011569 | Polaris |
| 4011925 | Polaris |
| 4012384 | Polaris |
Specifications
| Specification | Detail |
|---|---|
| Component | MOSFET Regulator Rectifier |
| Type | MOSFET (replaces OEM diode-style) |
| Voltage | 12V |
| Peak Output | 50A |
| Continuous Output | 30A (3-phase) / 30A (single-phase) |
| Overheat Protection | Yes — thermal shutdown and recovery |
| Number of Plugs | 3 |
| Number of Pins | 8 |
| Width | 107mm |
| Length | 112mm |
| Height | 50mm |
| Fixation Hole Centre to Centre | 82mm |
| Wire Lengths | 90mm / 145mm |
| Application | Polaris Sportsman / Ranger / RZR |
| Year Range | 2007–2010 |
| ATV City Part Number | RM30336 |
| Condition | New |
