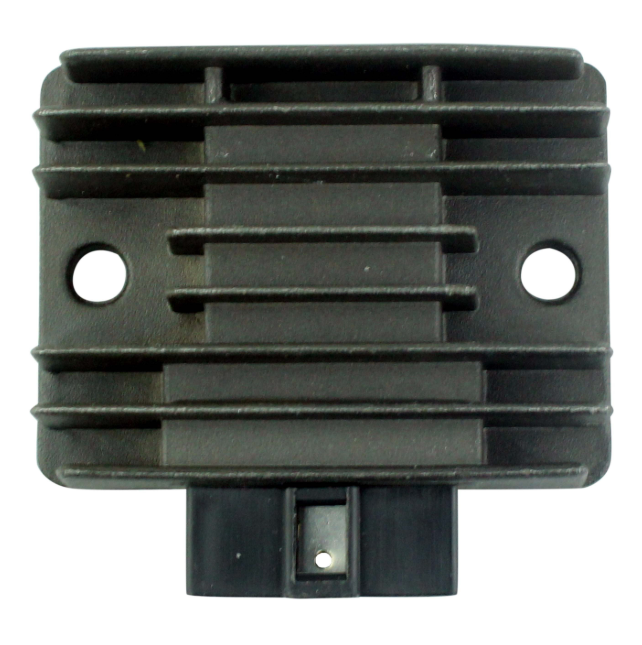

Regulator Rectifier – Kawasaki KLX 650 | 1993–1996
A direct-fit replacement regulator rectifier for the Kawasaki KLX 650 produced between 1993 and 1996. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to OEM specification and cross-referencing Kawasaki OEM part numbers 21066-1091 and 21066-1038 for straightforward identification. Verify your model and year against the fitment table before ordering.
Fitment
| Model | Year Range |
|---|---|
| KLX 650 | 1993–1996 |
Key Features
- Direct OEM-specification replacement regulator rectifier
- Covers Kawasaki KLX 650
- Year range 1993–1996
- Replaces OEM part numbers 21066-1091 and 21066-1038
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 21066-1038 | Kawasaki |
| 21066-1091 | Kawasaki |
Specifications
| Specification | Detail |
|---|---|
| Component | Regulator Rectifier |
| Voltage | 12V |
| Number of Plugs | 1 |
| Number of Pins | 5 |
| Width | 70mm |
| Length | 22mm |
| Height | 64mm |
| Fixation Hole Centre to Centre | 55mm |
| Minimum Charging Voltage | 14.5V ±0.5V |
| Maximum Charging Current | 25A–35A / 300W–500W |
| Open Circuit Voltage | <15V |
| Operating Temperature | -20°C to 85°C |
| Application | Kawasaki KLX 650 |
| Year Range | 1993–1996 |
| Condition | New |
