Regulator Rectifier – Honda TRX 420 Rancher / MUV 700 Big Red | 200...
A direct-fit replacement regulator rectifier for the Honda TRX 420 Rancher range and MUV 700 Big Red produced between 2007 and 2014, covering FA, FE, FM, FPA, FPE, FPM, TE, and TM variants. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to exceed OEM specification using higher-grade electrical components and an improved heat sink, with every unit tested before dispatch. Cross-references Honda OEM part number 31600-HP5-601 for straightforward identification. Verify your model and year against the fitment table before ordering.
Fitment
| Model | Year Range |
|---|---|
| MUV 700 Big Red | 2009–2013 |
| TRX 420 Rancher FA | 2009–2014 |
| TRX 420 Rancher FE | 2007–2013 |
| TRX 420 Rancher FM | 2007–2013 |
| TRX 420 Rancher FPA | 2009–2014 |
| TRX 420 Rancher FPE | 2009–2013 |
| TRX 420 Rancher FPM | 2009–2013 |
| TRX 420 Rancher TE | 2007–2013 |
| TRX 420 Rancher TM | 2007–2013 |
Key Features
- Direct OEM-specification replacement regulator rectifier
- Covers Honda TRX 420 Rancher FA / FE / FM / FPA / FPE / FPM / TE / TM and MUV 700 Big Red
- Year range 2007–2014
- Replaces OEM part number 31600-HP5-601

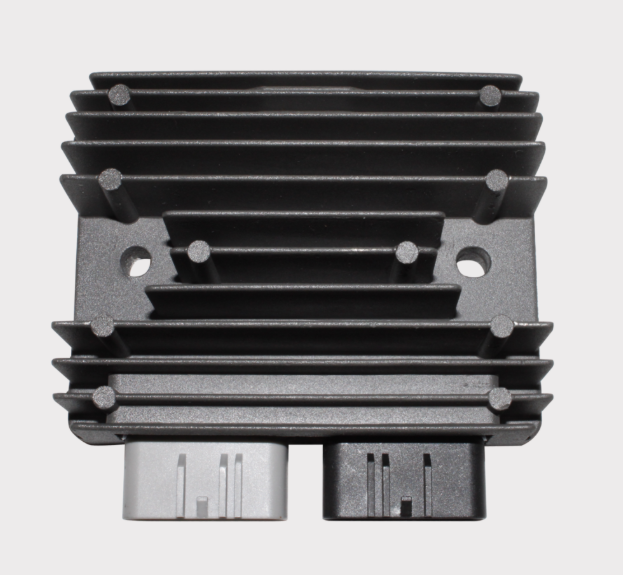

- Improved heat sink and higher-grade electrical components
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 31600-HP5-601 | Honda |
| SH753AA | Shindengen |
Specifications
| Specification | Detail |
|---|---|
| Component | Regulator Rectifier |
| Voltage | 12V |

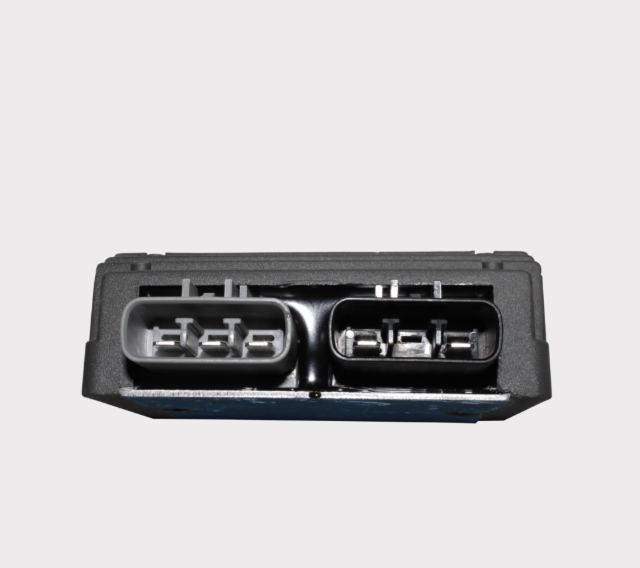

| Number of Plugs | 2 |
| Number of Pins | 5 |
| Width | 85mm |
| Length | 110mm |
| Height | 40mm |
| Fixation Hole Centre to Centre | 80mm |
| Application | Honda TRX 420 Rancher / MUV 700 Big Red |
| Year Range | 2007–2014 |
| ATV City Part Number | RM30514 |
| Condition | New |
